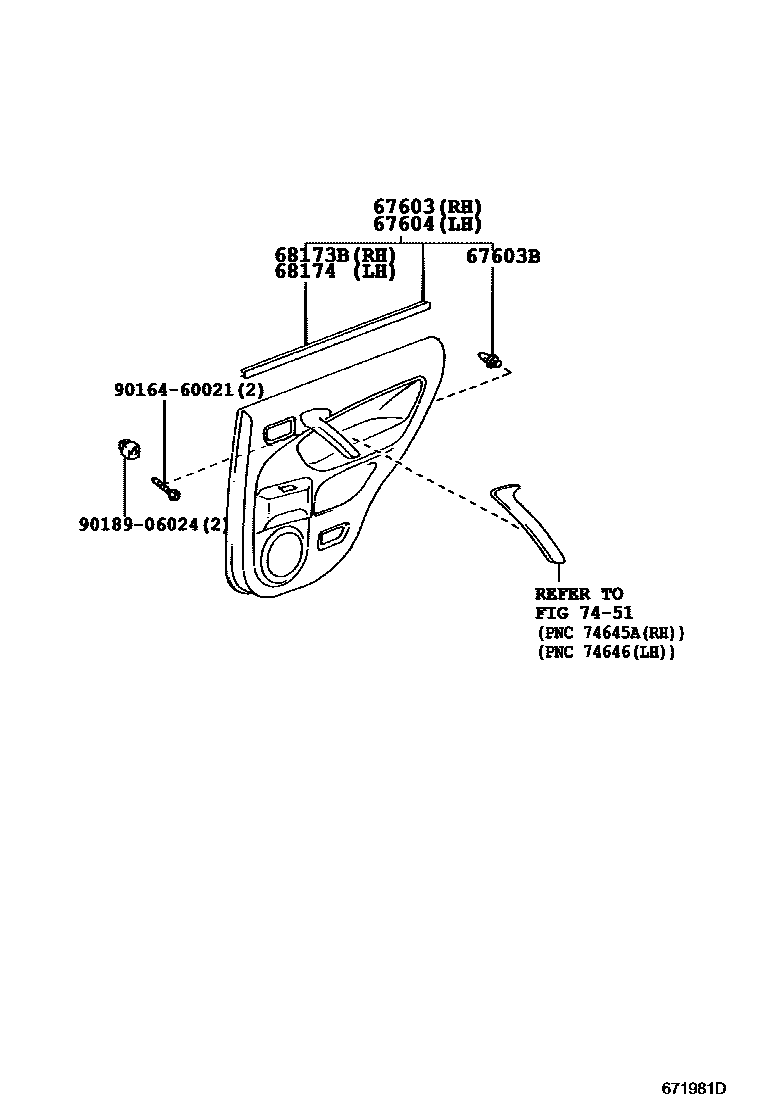

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-42200-B1iACA2#200208-200307

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#

main67630-42220-B0iACA2#200008-200307

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#

main67630-42220-E0iACA2#200008-200307

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FAWN,TRIM4#

main67630-42230-B0iACA2#200008-200307

DOOR TRIM=TYPE B-*104,BLUE GRAY,TRIM1#

main67630-42230-E0iACA2#200008-200307

DOOR TRIM=TYPE B-*104,FAWN,TRIM4#

main67630-42240-B1iACA2#200008-200307

DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM1#

main67630-42250-B0iACA2#200307-200511

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67630-42260-B0iACA2#200307-200511

DK.GRAY,TRIM1#

main67630-42270-B2iACA2#200307-200511

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67630-42270-E1iACA2#200307-200511

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FAWN,TRIM4#

main67630-42280-B2iACA2#200307-200511

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main67630-42280-E1iACA2#200307-200511

DOOR TRIM=TYPE B-*104,FAWN,TRIM4#

main67630-42290-B0iACA2#200307-200511

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67630-42290-E0iACA2#200307-200511

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),FAWN,TRIM4#

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90467-09206×14iACA2#200008-200307

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-42200-B1iACA2#200208-200307

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#

main67640-42220-B0iACA2#200008-200307

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#

main67640-42220-E0iACA2#200008-200307

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FAWN,TRIM4#

main67640-42230-B0iACA2#200008-200307

DOOR TRIM=TYPE B-*104,BLUE GRAY,TRIM1#

main67640-42230-E0iACA2#200008-200307

DOOR TRIM=TYPE B-*104,FAWN,TRIM4#

main67640-42240-B1iACA2#200008-200307

DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM1#

main67640-42250-B0iACA2#200307-200511

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67640-42260-B0iACA2#200307-200511

DK.GRAY,TRIM1#

main67640-42270-B2iACA2#200307-200511

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67640-42270-E1iACA2#200307-200511

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),FAWN,TRIM4#

main67640-42280-B2iACA2#200307-200511

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main67640-42280-E1iACA2#200307-200511

DOOR TRIM=TYPE B-*104,FAWN,TRIM4#

main67640-42290-B0iACA2#200307-200511

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67640-42290-E0iACA2#200307-200511

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),FAWN,TRIM4#

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-42020iACA2#200008-200307

68174WEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-42010iACA2#200008-200307

7451ARMREST & VISOR

→ Go to FIG 74-51

9016460021

main90164-60021

9018906024

main90189-06024

8 parts on this diagram · 3 diagrams in section
