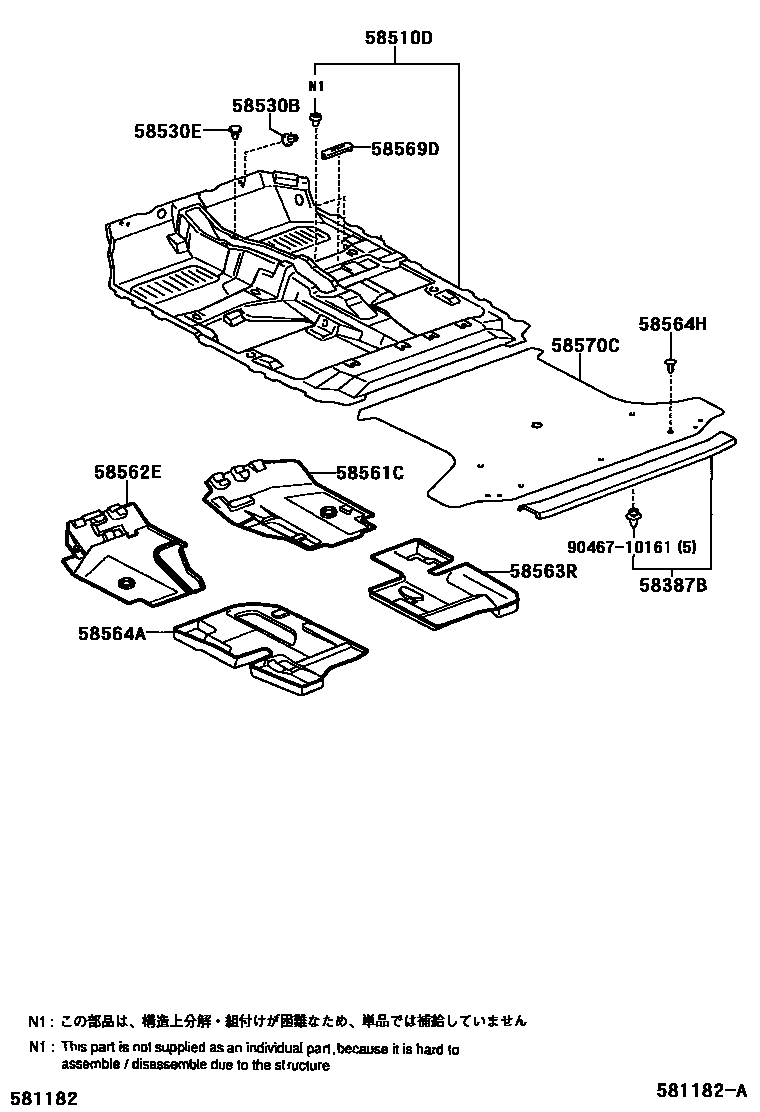

FLOOR MAT & SILENCER PAD

58387BPLATE, REAR FLOOR FINISH

main58387-42020-B0iACA2#200008-200307

BLUE GRAY,TRIM1#

main58387-42020-B1iACA2#200307-200511

DK.GRAY,TRIM1#

main58387-42020-E0iACA2#200008-200511

FAWN,TRIM4#

58510DCARPET ASSY, FLOOR, FRONT

main58510-42420-B0iACA2#..USA200302-200307

BLUISH GRAY,TRIM1#

main58510-42420-E0iACA2#..USA200302-200307

FAWN,TRIM4#

main58510-42430-B0iACA2#200302-200307

W(REAR HEATER DUCT),BLUISH GRAY,TRIM1#

main58510-42430-E0iACA2#200302-200307

W(REAR HEATER DUCT),FAWN,TRIM4#

main58510-42460-B0iACA2#..USA200008-200302

BLUISH GRAY,TRIM1#

main58510-42460-E0iACA2#..USA200008-200302

FAWN,TRIM4#

main58510-42470-B0iACA2#200008-200302

W(REAR HEATER DUCT),BLUISH GRAY,TRIM1#

main58510-42470-E0iACA2#200008-200302

W(REAR HEATER DUCT),FAWN,TRIM4#

main58510-42680-B0iACA2#..USA200307-200511

GRAY,TRIM1#

main58510-42680-E0iACA2#..USA200307-200511

FAWN,TRIM4#

main58510-42690-B0iACA2#200307-200511

W(REAR HEATER DUCT),GRAY,TRIM1#

main58510-42690-E0iACA2#200307-200511

W(REAR HEATER DUCT),FAWN,TRIM4#

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09167iACA2#200008-200307

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main90467-09118iACA2#200008-200307

58561CSILENCER, FRONT FLOOR, NO.1

main58561-42010iACA2#..USA200008-200307

main58561-42020iACA2#200008-200307

W(REAR HEATER DUCT)

58562ESILENCER, FRONT FLOOR, NO.2

main58562-42010iACA2#..USA200008-200306

main58562-42020iACA2#200008-200306

W(REAR HEATER DUCT)

main58562-42050iACA2#..USA200306-200307

main58562-42060iACA2#200306-200307

W(REAR HEATER DUCT)

58563RSILENCER, FRONT FLOOR, NO.3

main58563-42010iACA2#200008-200307

main58563-42030iACA2#200307

58564ASILENCER, FRONT FLOOR, NO.4

main58564-42010iACA2#200008-200307

main58564-42030iACA2#200307

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-06023-B0iACA2#200008-200307

SHADOW GRAY,TRIM1#

main90467-06023-B1iACA2#200307-200511

DK.GRAY,TRIM1#

main90467-06023-E0iACA2#200008-200511

SANDAL WOOD,TRIM4#

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-44010-B2iACA2#200008-200307

SHADOW GRAY,TRIM1#

main58569-44010-B5iACA2#200307-200511

DK.GRAY,TRIM1#

main58569-44010-E0iACA2#200008-200511

SANDAL WOOD,TRIM4#

58570CCARPET ASSY, REAR FLOOR

main58571-42050-B0iACA21..CND200008-200307

BLUISH GRAY,TRIM1#

main58571-42050-B2iACA23..CND200307-200402

GRAY,TRIM1#

main58571-42050-E0iACA23..CND200008-200402

FAWN,TRIM4#

main58571-42051-B2iACA23..CND200403-200511

GRAY,TRIM1#

main58571-42051-E0iACA23..CND200403-200511

FAWN,TRIM4#

main58571-42070-B0iACA2#..USA200008-200307

BLUISH GRAY,TRIM1#

main58571-42070-B1iACA2#..USA200307-200402

GRAY,TRIM1#

main58571-42070-E0iACA2#..USA200008-200402

FAWN,TRIM4#

main58571-42071-B1iACA2#..USA200403-200511

GRAY,TRIM1#

main58571-42071-E0iACA2#..USA200403-200511

FAWN,TRIM4#

9046710161

main90467-10161

12 parts on this diagram · 1 diagram in section
