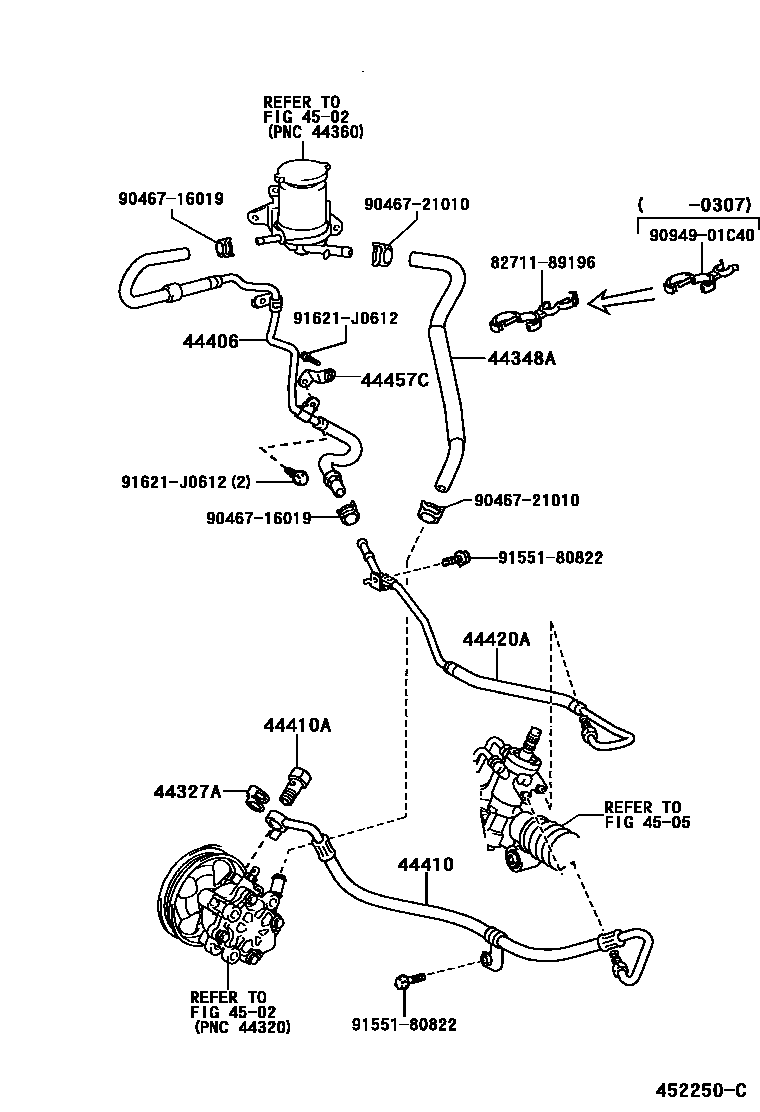

POWER STEERING TUBE

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iACA2#200008-200307

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-42050iACA2#200008-200307

44406TUBE SUB-ASSY, RETURN

main44406-42080iACA2#200008-200307

main44406-42100iACA2#200307

44410TUBE ASSY, PRESSURE FEED

main44410-42070iACA2#200008-200307

main44410-42130iACA2#200307

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main96341-41603iACA2#200008-200307

44420ATUBE ASSY, RETURN

main44420-42050iACA2#200008-200307

main44420-42060iACA2#200307

44457CBRACKET, POWER STEERING TUBE SUPPORT, NO.1

main44457-42030iACA2#200008-200307

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8271189196WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-89196

9046716019

main90467-16019

9046721010

main90467-21010

9094901C40

main90949-01C40

9155180822

main91551-80822

91621J0612

main91621-J0612

15 parts on this diagram · 1 diagram in section
