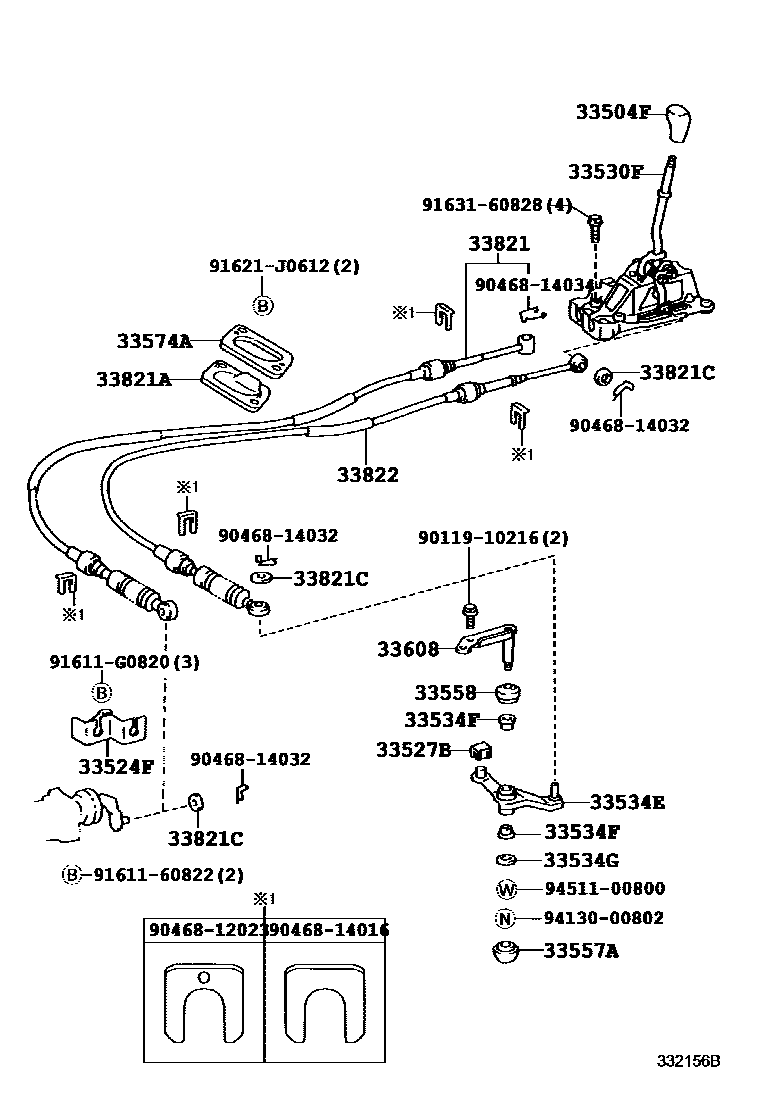

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM1#,4#
BLACK,TRIM1#,4#
LEATHER,BLACK,TRIM1#,4#
LEATHER,BLACK,TRIM1#,4#
LEATHER
33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)
33527BBUSH (FOR CONTROL SHIFT LEVER)
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33534ECRANK, SELECTING BELL, NO.2
33534FBUSH (FOR SELECTING BELLCRANK NO.2)
33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
33557ACOVER, SELECTING BELLCRANK DUST, NO.1
33558COVER, SELECTING BELLCRANK DUST, NO.2
33574ARETAINER, SHIFT CABLE GROMMET, NO.1
33608SUPPORT SUB-ASSY, SELECTING BELLCRANK
33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33821AGROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
OD=30,TRANSAXLE SIDE
SHIFT LEVER SIDE
33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
9011910216
main90119-10216
9046812023
main90468-12023
9046814016
main90468-14016
9046814032
main90468-14032
9046814034
main90468-14034
9161160822
main91611-60822
91611G0820
main91611-G0820
91621J0612
main91621-J0612
9163160828
main91631-60828
9413000802
main94130-00802
9451100800
main94511-00800
26 parts on this diagram · 3 diagrams in section
