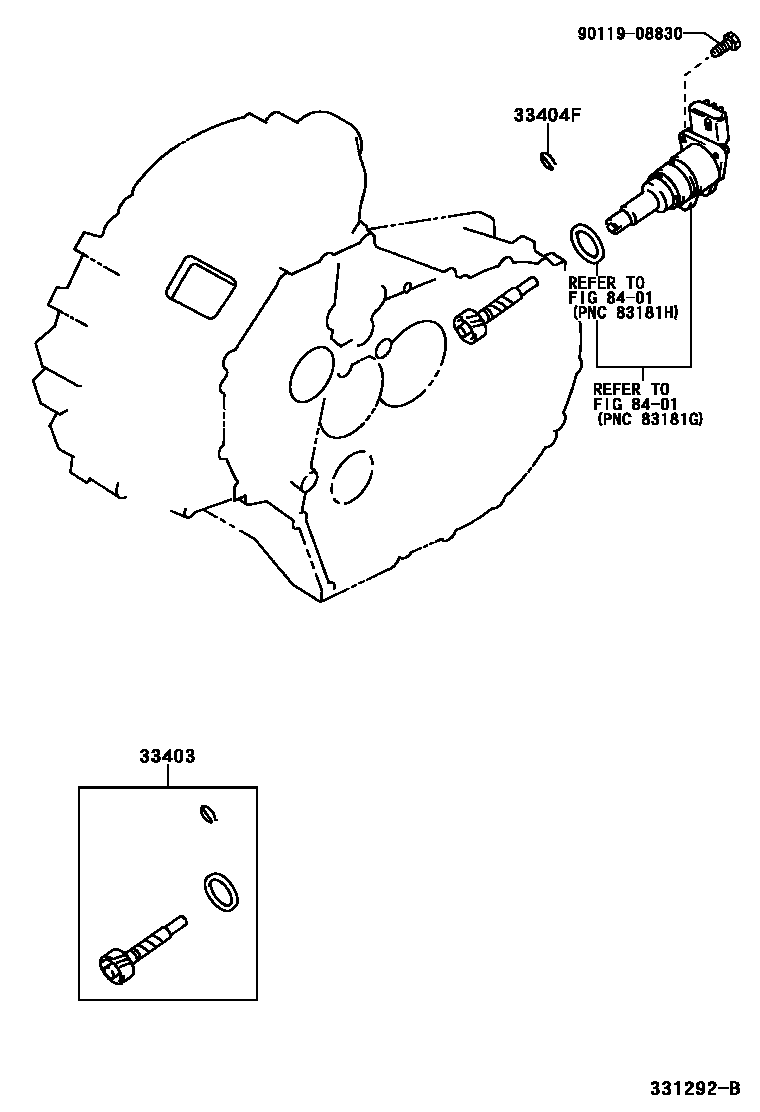

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1E352F,E359F 0002 1E352

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-49045iACA21..MTM200008-200307

N=26,MARK 26:35

main33403-49075iACA26..MTM200008-200307

N=24,MARK 24:33

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iACA2#..MTM200008-200307

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908830

main90119-08830

4 parts on this diagram · 2 diagrams in section
