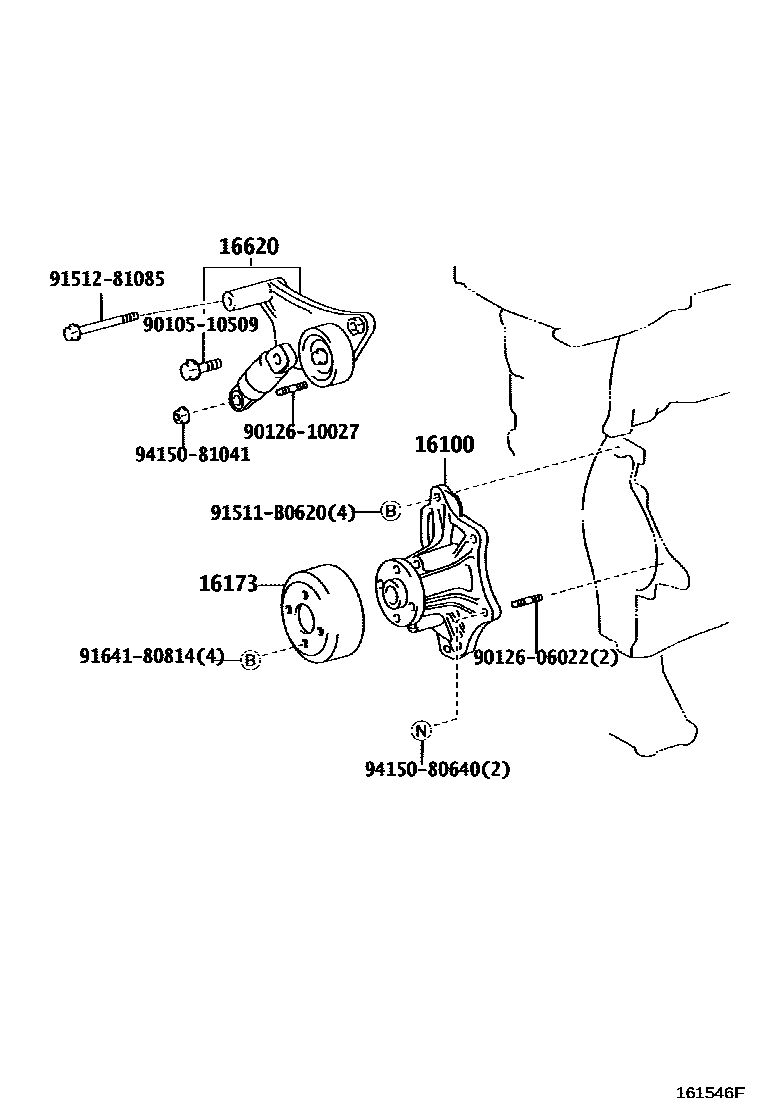

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-28040i1AZFE..ACA2#200008-200307

16173PULLEY, WATER PUMP

main16173-28020i1AZFE..ACA2#200008-200307

16620TENSIONER ASSY, V-RIBBED BELT

main16620-28010i1AZFE..ACA2#200008-200101

main16620-28011i1AZFE..ACA2#200101-200307

9010510509

main90105-10509

9012606022

main90126-06022

9012610027

main90126-10027

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

11 parts on this diagram · 1 diagram in section
