11711BEARING, CRANKSHAFT

main11711-28010-01×5i200307-200511

MARK 1,REFER REPAIR MANUAL

main11711-28010-02×5i200307-200511

MARK 2,REFER REPAIR MANUAL

main11711-28010-03×5i200307-200511

MARK 3,REFER REPAIR MANUAL

main11711-28010-04×5i200008-200307

MARK 4,REFER REPAIR MANUAL

main11711-28020-01×5i200511

MARK1,REFER REPAIR MANUAL

main11711-28020-02×5i200511

MARK2,REFER REPAIR MANUAL

main11711-28020-03×5i200511

MARK3,REFER REPAIR MANUAL

main11711-28020-04×5i200511

MARK4,REFER REPAIR MANUAL

11721BEARING, CRANKSHAFT, NO.2

main11721-28010-01×5i200008-200307

MARK 1,REFER REPAIR MANUAL

main11721-28010-02×5i200307-200511

MARK 2,REFER REPAIR MANUAL

main11721-28010-03×5i200008-200307

MARK 3,REFER REPAIR MANUAL

main11721-28010-04×5i200008-200307

MARK 4,REFER REPAIR MANUAL

main11721-28020-01×5i200511

MARK1,REFER REPAIR MANUAL

main11721-28020-02×5i200511

MARK2,REFER REPAIR MANUAL

main11721-28020-03×5i200511

MARK3,REFER REPAIR MANUAL

main11721-28020-04×5i200511

MARK4,REFER REPAIR MANUAL

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-28020×2i200008-200307

STD

13011RING SET, PISTON

main13011-28102i200307

STD

main13011-28120i200008-200211

STD

main13011-28121i200211-200307

STD

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

13041BEARING, CONNECTING ROD

main13281-28010-01×8i200307

MARK 1,REFER REPAIR MANUAL

main13281-28010-02×8i200008-200307

MARK 2,REFER REPAIR MANUAL

main13281-28010-03×8i200307

MARK 3,REFER REPAIR MANUAL

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025×8i200307

13201ROD SUB-ASSY, CONNECTING

main13201-09790-A0×4i200504-200511

MARK A,(L):REFER R/M

main13201-09790-B0×4i200504-200511

MARK B,(L):REFER R/M

main13201-09790-C0×4i200504-200511

MARK C,(L):REFER R/M

main13201-29125-A0×4i200307-200404

MARK A,REFER REPAIR MANUAL

main13201-29125-B0×4i200307-200404

MARK B,REFER REPAIR MANUAL

main13201-29125-C0×4i200307-200404

MARK C,REFER REPAIR MANUAL

main13201-29685-A0×4i200504-200511

MARK A,(J):REFER R/M

main13201-29685-B0×4i200404-200504

MARK B,REFER REPAIR MANUAL

main13201-29685-C0×4i200504-200511

MARK C,(J):REFER R/M

13211PISTON

main13211-28031-A0×4i200307

MARK A,REFER REPAIR MANUAL

main13211-28031-B0×4i200307

MARK B,REFER REPAIR MANUAL

main13211-28031-C0×4i200307

MARK C,REFER REPAIR MANUAL

main13211-28060-A0×4i200008-200211

MARK A,REFER REPAIR MANUAL

main13211-28060-B0×4i200008-200211

MARK B,REFER REPAIR MANUAL

main13211-28060-C0×4i200008-200211

MARK C,REFER REPAIR MANUAL

main13211-28061-A0×4i200211-200307

MARK A,REFER REPAIR MANUAL

main13211-28061-B0×4i200211-200307

MARK B,REFER REPAIR MANUAL

main13211-28061-C0×4i200211-200307

MARK C,REFER REPAIR MANUAL

13251PIN, PISTON

main13251-28010-A0×4i200008-200307

MARK A,REFER REPAIR MANUAL

main13251-28010-B0×4i200307

MARK B,REFER REPAIR MANUAL

main13251-28010-C0×4i200008-200307

MARK C,REFER REPAIR MANUAL

13265BOLT, CONNECTING ROD

main13265-28010×8i200008-200307

13405FLYWHEEL SUB-ASSY

main13405-28020i200008-200307

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i200008-200307

L=23,OD=8

13405BBOLT, FLYWHEEL SETTING

main90105-12322×8i200008-200307

13411CRANKSHAFT

main13401-0H010i200411

(L)

main13401-28010i200307

(J)

main13411-28040i200112-200307

main13411-28902i200008-200112

13434AKEY(FOR OIL PUMP DRIVE SPLINE)

main95161-30416i200008-200307

13453GEAR, FLYWHEEL RING

main13453-74011i200008-200307

13471PULLEY, CRANKSHAFT

main13470-28020i200008-200307

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main95161-30416i200008-200307

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-14106i200008-200307

13519GEAR, OIL PUMP DRIVE

main13519-28010i200008-200307

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-28010i200008-200307

main13521-28030i200601

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-28010i200008-200307

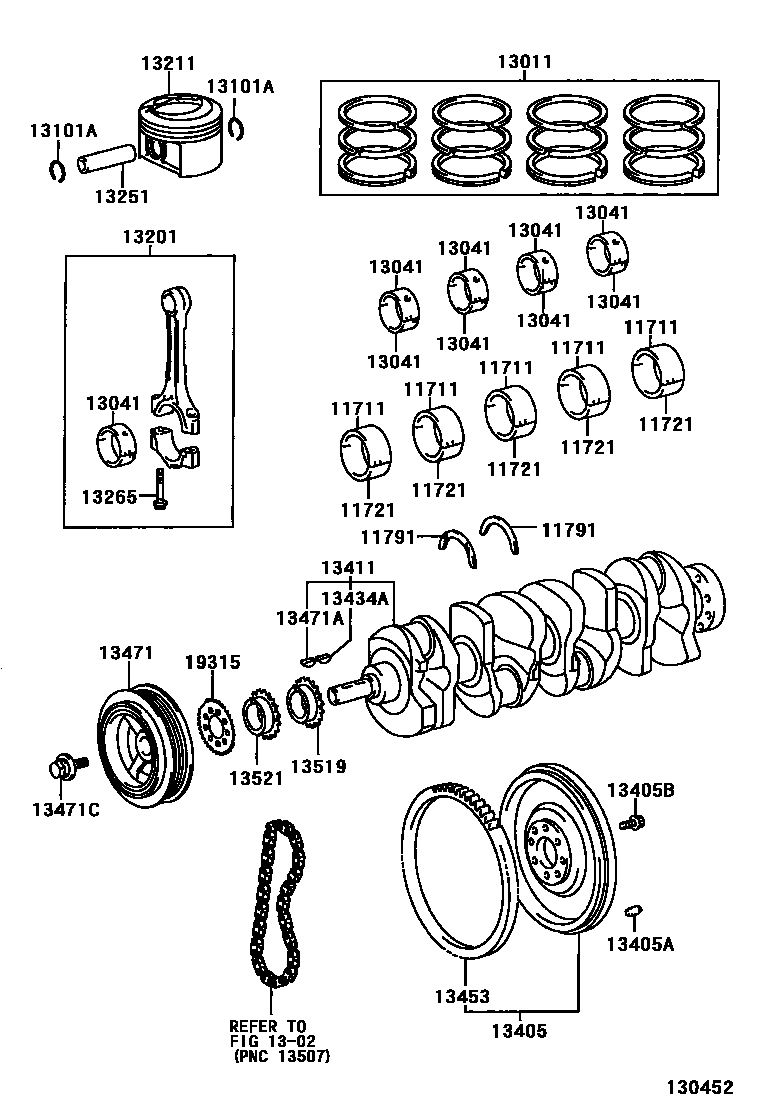

CRANKSHAFT & PISTON
