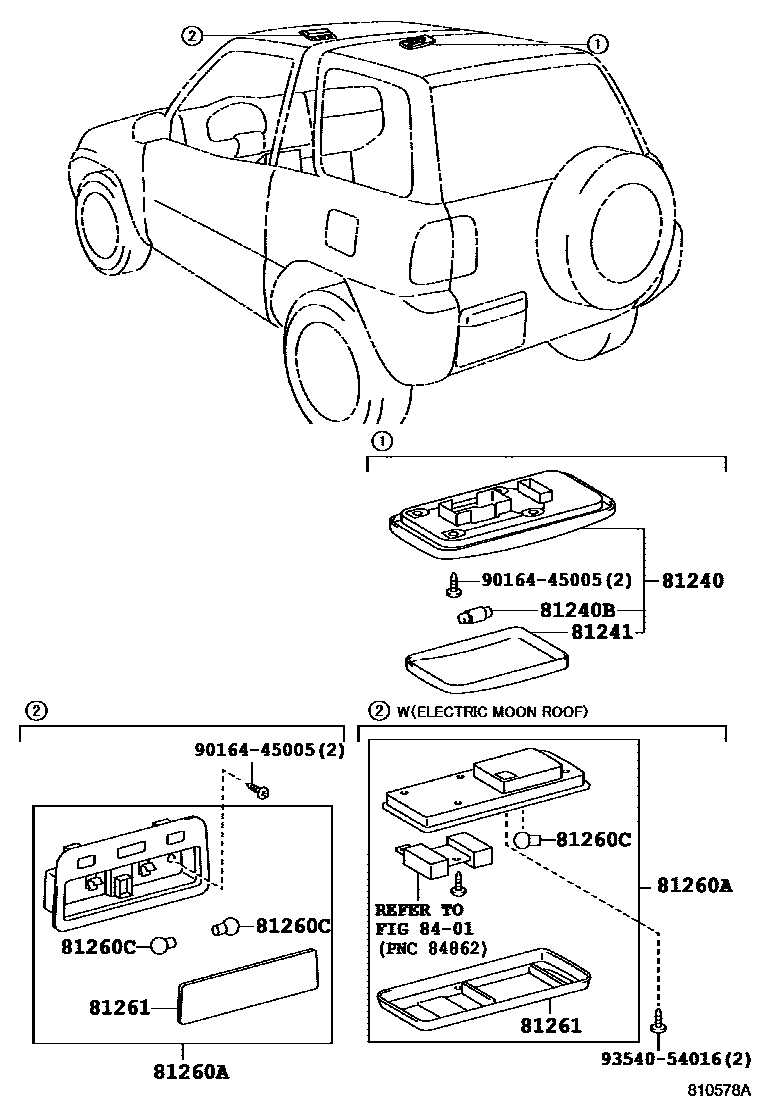

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12060-B1iSXA1#199511-199709

LT.BLUISH GRAY,TRIM1#

main81240-12060-B3iSXA1#199807

LT.GRAY,TRIM1#

main81240-42010-B0iSXA1#199709-199807

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iSXA1#199511

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020iSXA1#199511

81260ALAMP ASSY, MAP

main81260-14080-B2iSXA1#199511-199709

LT.BLUISH GRAY,TRIM1#

main81260-14080-B3iSXA1#199709

LT.GRAY,TRIM1#

main81260-20220-B1iSXA1#..HT199709

W(MOON ROOF),LT.GRAY,TRIM1#

main81260-20220-B2iSXA11,16199608-199709

W(MOON ROOF),BLUISH GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12005×2iSXA1#199511

12V 8W

main90981-12014iSXA11,16199608

12V 10W,W(ELECTRIC MOON ROOF)

81261LENS AND COVER, MAP LAMP

main81261-14080iSXA1#199511-199709

main81261-20220-B1iSXA11,16199608-199709

W(ELECTRIC MOON ROOF),BLUISH GRAY,TRIM1#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9016445005

main90164-45005

9354054016

main93540-54016

9 parts on this diagram · 1 diagram in section
