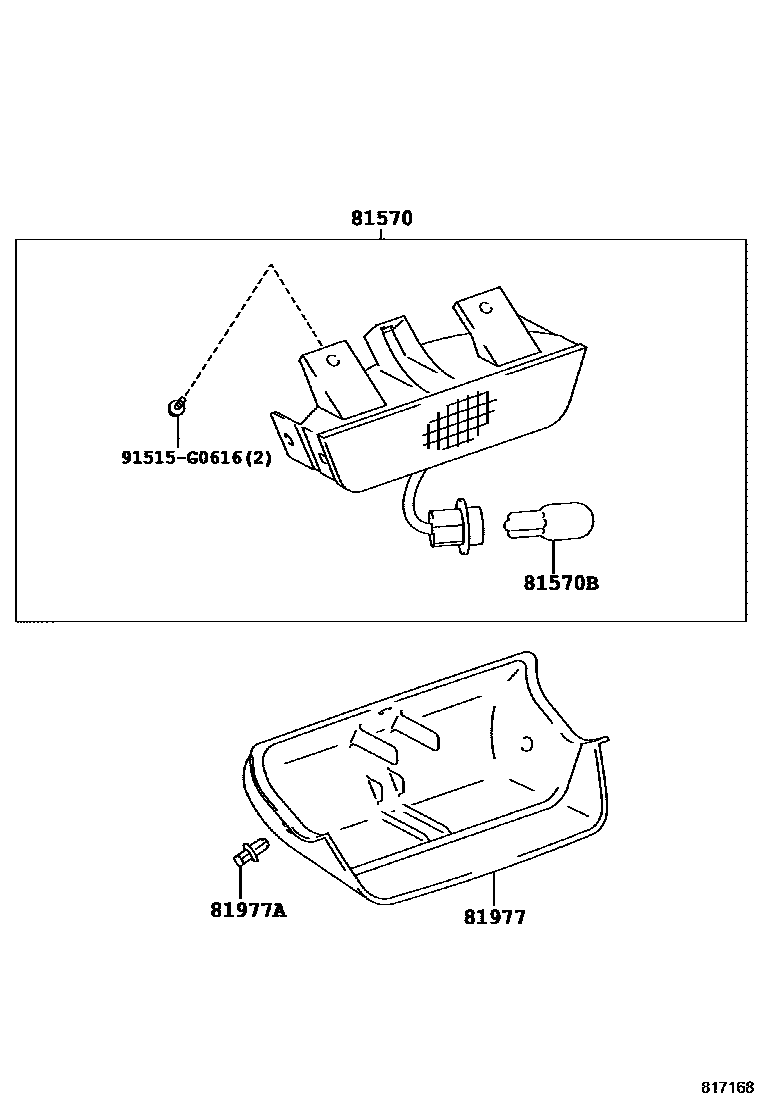

CENTER STOP LAMP

0001 1 0002 1

81570LAMP ASSY, CENTER STOP

main81570-42010iSXA1#..HT199511

main81570-42040iSXA10,15..SOT199712

81570BBULB (FOR CENTER STOP LAMP)

main90981-11042iSXA10,15..SOT199712

12V 21W

main90981-11055iSXA1#..HT199511

12V 16W

81977COVER, CENTER STOP LAMP

main81977-42010-B0iSXA1#199511-199709

BLUISH GRAY,TRIM1#

main81977-42010-B1iSXA1#..HT199709

SHADOW GRAY,TRIM1#

81977ACLIP (FOR CENTER STOP LAMP)

main90467-07071-B3×2iSXA1#199511-199709

GRAY,TRIM1#

main90467-07071-B4×2iSXA1#..HT199709

SHADOW GRAY,TRIM1#

91515G0616

main91515-G0616

5 parts on this diagram · 2 diagrams in section
