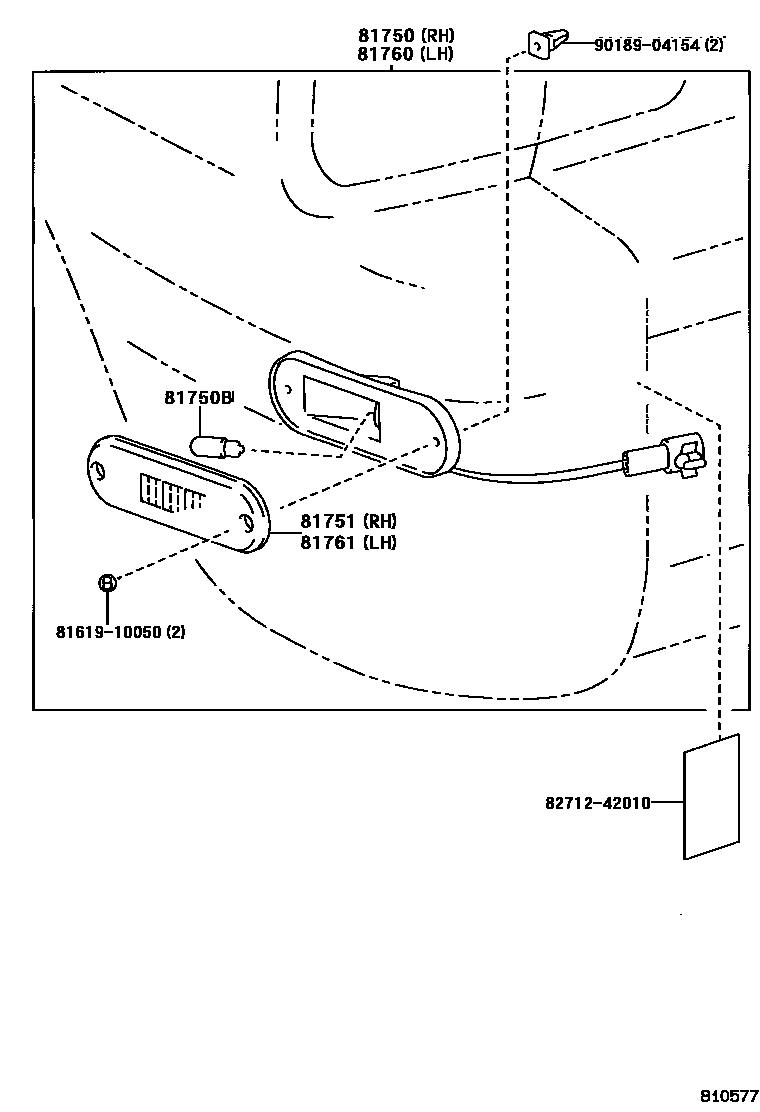

REAR SIDE MARKER LAMP

81750LAMP ASSY, REAR SIDE MARKER, RH

main81750-42010iSXA1#199511

81750BBULB, REAR SIDE MARKER LAMP

main90981-11020×2iSXA1#199511

12V 3.8W

81751LENS, REAR SIDE MARKER LAMP, RH

main81751-42010iSXA1#199511

81760LAMP ASSY, REAR SIDE MARKER, LH

main81760-42010iSXA1#199511

81761LENS, REAR SIDE MARKER LAMP, LH

main81761-42010iSXA1#199511

8161910050

main81619-10050

8271242010CLAMP, WIRING HARNESS

main82712-42010

9018904154

main90189-04154

8 parts on this diagram · 1 diagram in section
