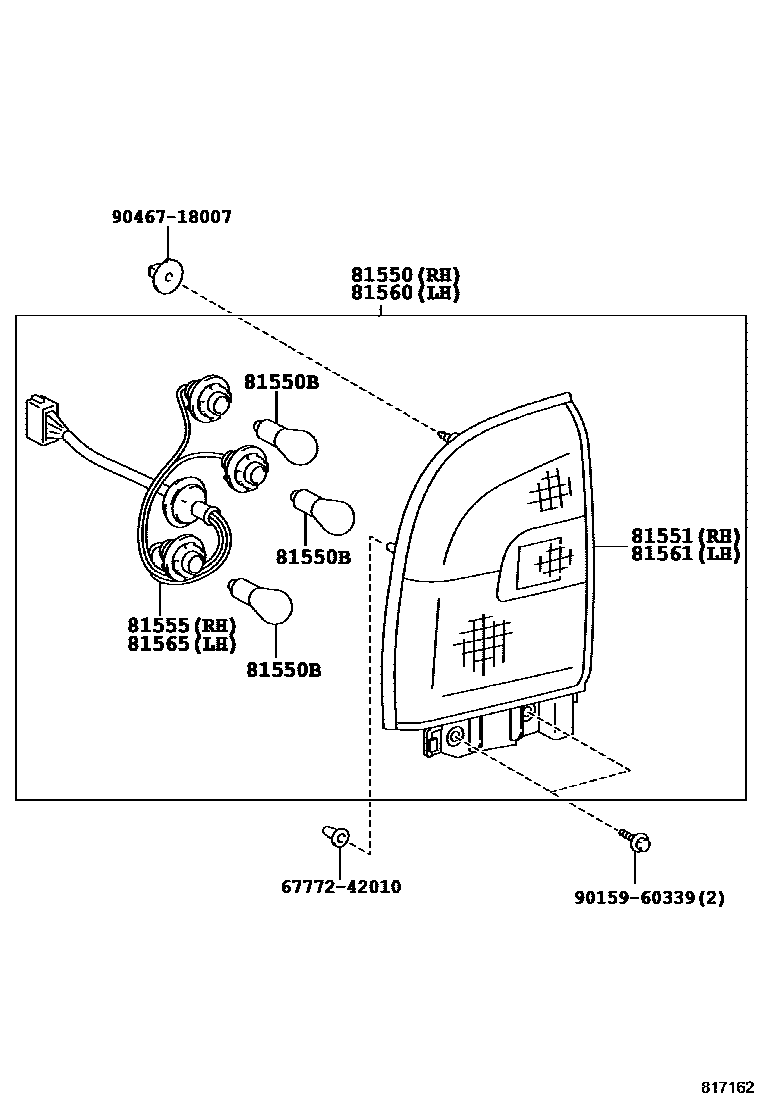

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-42030iSXA1#199511-199709

main81550-42050iSXA1#199709

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11042×4iSXA1#199709

12V 21W

main90981-11043×2iSXA1#199709

12V 21/5W

main99132-11270×4iSXA1#199511-199709

12V 27W

main99132-21270×2iSXA1#199511-199709

12V 27/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-42030iSXA1#199511-199709

main81551-42050iSXA1#199709

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-42020iSXA1#199511-199709

main81555-42050iSXA1#199709

81560LAMP ASSY, REAR COMBINATION, LH

main81560-42030iSXA1#199511-199709

main81560-42050iSXA1#199709

81561LENS, REAR COMBINATION LAMP, LH

main81561-42030iSXA1#199511-199709

main81561-42050iSXA1#199709

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-42020iSXA1#199511-199709

main81555-42050iSXA1#199709

6777242010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-42010

9015960339

main90159-60339

9046718007

main90467-18007

10 parts on this diagram · 2 diagrams in section
