ASH RECEPTACLE

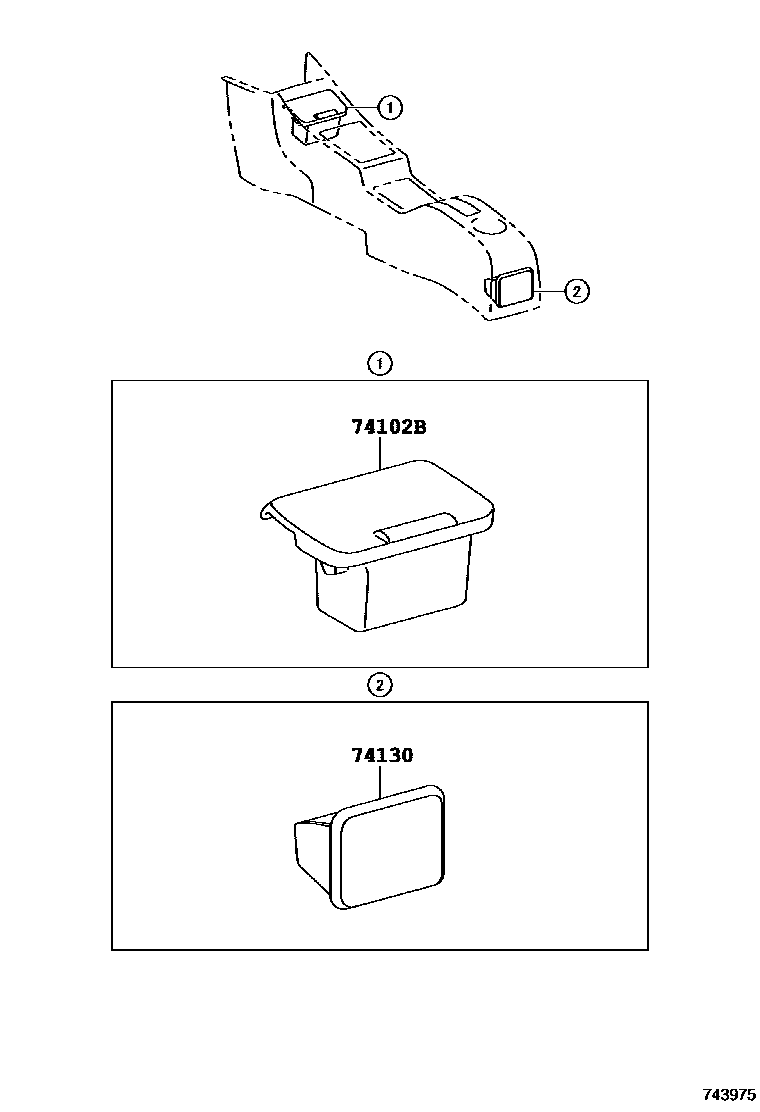

Parts diagram

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-42010-B0i199511-199709

BLUISH GRAY,TRIM1#

main74102-42010-B1i199709-200008

SHADOW GRAY,TRIM1#

74130RECEPTACLE ASSY, REAR ASH

main74109-20080-B0i199511-199709

BLUISH GRAY,TRIM1#

main74109-20080-P0i199709-200008

SHADOW GRAY,TRIM1#

2 parts on this diagram · 1 diagram in section
