SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-42010-B0iSXA10,15199511-199608

BLUISH GRAY,TRIM1#

main71071-42030-B0iSXA11,16199511-199608

BLUISH GRAY,TRIM1#

main71071-42110-B1iSXA10,15199608-199709

BLUISH GRAY,TRIM14

main71071-42110-B4iSXA10,15199709-199808

USA UP GRADE PACKAGE,SHADOW GRAY,TRIM1#

main71071-42110-B4iSXA10,15199709-199808

SHADOW GRAY,TRIM1#

main71071-42111-B9iSXA10,15199808

SHADOW GRAY,TRIM1#

main71071-42130-B0iSXA11,16199608-199709

BLUISH GRAY,TRIM15

main71071-42130-B1iSXA11,16199611-200007

RAV4 L PACKAGE,BLUISH GRAY,TRIM1#

main71071-42130-B1iSXA11,16199612-199709

BLUISH GRAY,TRIM16

main71071-42180-B0iSXA11,16199709

SHADOW GRAY,TRIM1#

main71071-42200-B0iSXA11,16199808

LEATHER SEAT,SHADOW GRAY,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-42010-B0iSXA10,15199511-199608

BLUISH GRAY,TRIM1#

main71071-42030-B0iSXA11,16199511-199608

BLUISH GRAY,TRIM1#

main71071-42110-B1iSXA10,15199608-199709

BLUISH GRAY,TRIM14

main71071-42110-B4iSXA10,15199709-199808

USA UP GRADE PACKAGE,SHADOW GRAY,TRIM1#

main71071-42110-B4iSXA10,15199709-199808

SHADOW GRAY,TRIM1#

main71071-42111-B9iSXA10,15199808

SHADOW GRAY,TRIM1#

main71071-42130-B0iSXA11,16199608-199709

BLUISH GRAY,TRIM15

main71071-42130-B1iSXA15..HT199611-200007

RAV4 L PACKAGE,BLUISH GRAY,TRIM1#

main71071-42130-B1iSXA11,16199612-199709

BLUISH GRAY,TRIM16

main71071-42180-B0iSXA11,16199709

SHADOW GRAY,TRIM1#

main71071-42200-B0iSXA11,16199808

LEATHER SEAT,SHADOW GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-42010-B0iSXA10,15199511-199608

BLUISH GRAY,TRIM1#

main71073-42030-B0iSXA11,16199511-199608

BLUISH GRAY,TRIM1#

main71073-42062-C2iSXA15..HT199611-200007

RAV4 L PACKAGE,BLACK,TRIM1#

main71073-42110-B1iSXA10,15199608-199709

BLUISH GRAY,TRIM14

main71073-42110-B4iSXA10,15199709-199808

USA UP GRADE PACKAGE,SHADOW GRAY,TRIM1#

main71073-42110-B4iSXA10,15199709-199808

SHADOW GRAY,TRIM1#

main71073-42111-B7iSXA10,15199808

SHADOW GRAY,TRIM1#

main71073-42130-B0iSXA11,16199608-199709

BLUISH GRAY,TRIM15

main71073-42130-B1iSXA11,16199612-199709

BLUISH GRAY,TRIM16

main71073-42130-B1iSXA11,16199611-200007

RAV4 L PACKAGE,BLUISH GRAY,TRIM1#

main71073-42220-B0iSXA11,16199709

SHADOW GRAY,TRIM1#

main71073-42240-B0iSXA11,16199808

LEATHER SEAT,SHADOW GRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-42010-B0iSXA10,15199511-199608

BLUISH GRAY,TRIM1#

main71073-42030-B0iSXA11,16199511-199608

BLUISH GRAY,TRIM1#

main71073-42062-C2iSXA15..HT199611-200007

RAV4 L PACKAGE,BLACK,TRIM1#

main71073-42110-B1iSXA10,15199608-199709

BLUISH GRAY,TRIM14

main71073-42110-B4iSXA10,15199709-199808

SHADOW GRAY,TRIM1#

main71073-42110-B4iSXA10,15199709-199808

USA UP GRADE PACKAGE,SHADOW GRAY,TRIM1#

main71073-42111-B7iSXA10,15199808

SHADOW GRAY,TRIM1#

main71073-42130-B0iSXA11,16199608-199709

BLUISH GRAY,TRIM15

main71073-42130-B1iSXA11,16199612-199709

BLUISH GRAY,TRIM16

main71073-42130-B1iSXA11,16199611-200007

RAV4 L PACKAGE,BLUISH GRAY,TRIM1#

main71073-42220-B0iSXA11,16199709

SHADOW GRAY,TRIM1#

main71073-42240-B0iSXA11,16199808

LEATHER SEAT,SHADOW GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-42010iSXA1#199511-199608

main71511-42020iSXA1#199608

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-42010iSXA1#199511-199608

main71511-42020iSXA1#199608

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-42010iSXA1#199511-199608

main71551-42020iSXA1#199608-199709

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-42010iSXA1#199511-199608

main71551-42020iSXA1#199608-199709

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-42010iSXA1#199511-199608

main71610-42020iSXA1#199608

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71610-42010iSXA1#199511-199608

main71610-42020iSXA1#199608

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-42010iSXA1#199511-199608

main71630-42020iSXA1#199608

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-42010iSXA1#199511-199608

main71630-42020iSXA1#199608

71831DCOVER, FRONT SEAT HINGE, RH

main71831-20030iSXA1#199511-199608

71832DCOVER, FRONT SEAT HINGE, LH

main71832-20010iSXA1#199511-199608

71910AHEADREST ASSY, FRONT SEAT

main71910-42010-B0iSXA1#199511-199608

BLUISH GRAY,TRIM1#

main71910-42011-B5iSXA10,15..HT199608-199808

SHADOW GRAY,TRIM1#

main71910-42040-B1iSXA1#199709-199812

BLUISH GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-32020-B0iSXA1#199511-199610

W(LOCK),SHADOW GRAY,TRIM1#

main71930-44010-B1iSXA1#199610-200008

W(LOCK),SHADOW GRAY,TRIM1#

main71930-44010-B1iSXA1#199709-200008

W(LOCK),USA UP GRADE PACKAGE,SHADOW GRAY,TRIM1#

main71931-12040-B0iSXA1#199709-200008

W/O(LOCK),USA UP GRADE PACKAGE,SHADOW GRAY,TRIM1#

main71931-12040-B0iSXA1#199608-200008

W/O(LOCK),SHADOW GRAY,TRIM1#

main71931-32020-B0iSXA1#199511-199608

W/O(LOCK),SHADOW GRAY,TRIM1#

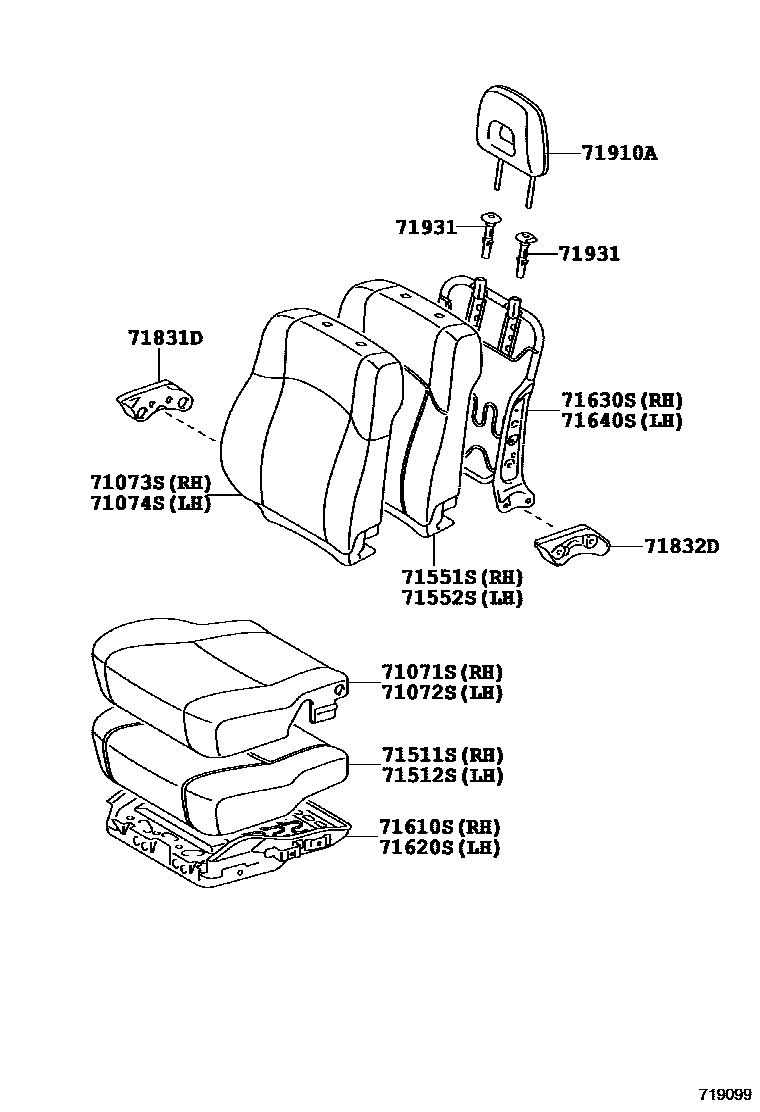

16 parts on this diagram · 7 diagrams in section
