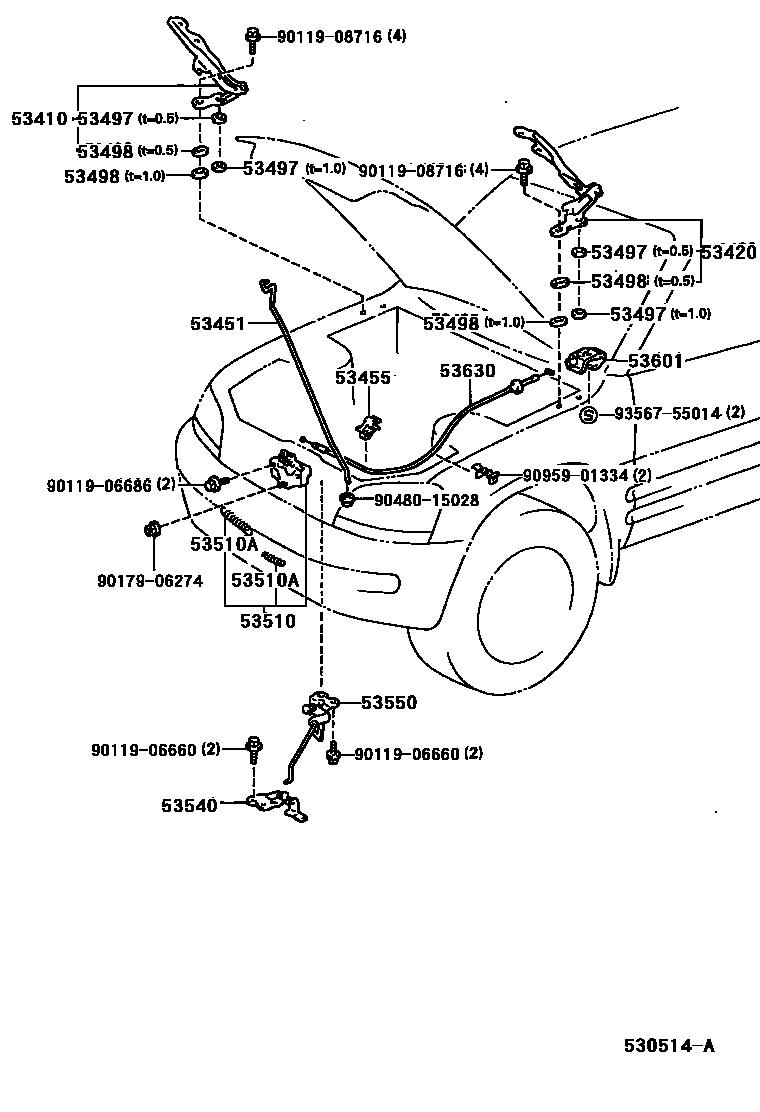

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-42010iSXA1#199511

53420HINGE ASSY, HOOD, LH

main53420-42010iSXA1#199511

53451ROD, HOOD SUPPORT

main53451-42020iSXA1#199511

53455CLAMP, HOOD SUPPORT ROD

main53455-12060iSXA1#199511

53497PAD, HOOD HINGE, NO.1

main53497-12050iSXA1#199511

T=1.0

main53497-12070×2iSXA1#199511

T=0.5

53498PAD, HOOD HINGE, NO.2

main53498-12050iSXA1#199511

T=1.0

main53498-12070×2iSXA1#199511

T=0.5

53510LOCK ASSY, HOOD

main53510-42020iSXA1#199511

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iSXA1#199709

WD=0.9,CW=20.5

main90506-20008iSXA1#199709

WD=2.0,CW=17

53540LEVER ASSY, AUXILIARY CATCH RELEASE

main53540-42010iSXA1#199511

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-42010iSXA1#199511

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-16020-B1iSXA1#199808

LIGHT GRAY,TRIM1#

main53601-20081-B1iSXA1#199511-199709

BLUISH GRAY,TRIM1#

main53601-20081-P0iSXA1#199709-199808

SHADOW GRAY,TRIM1#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-42010iSXA1#199511-199709

main53630-42030iSXA1#199709

9011906660

main90119-06660

9011906686

main90119-06686

9011908716

main90119-08716

9017906274

main90179-06274

9048015028

main90480-15028

9095901334

main90959-01334

9356755014

main93567-55014

19 parts on this diagram · 1 diagram in section
