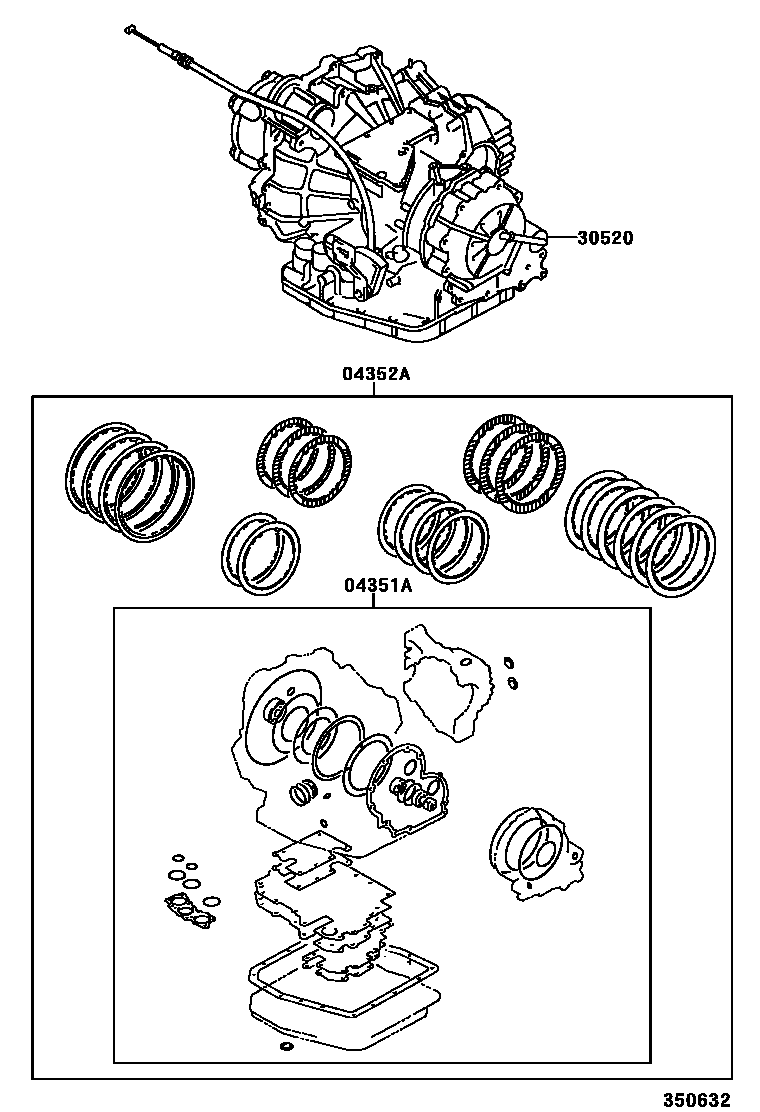

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A540H 0002 1A241E 0003 1A247E

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-16090iSXA15,16..ATM199602-199709

main04351-42010iSXA10,11..ATM199511

main04351-42020iSXA15,16..ATM199709

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-42010iSXA15,16..ATM199602-199709

main04352-42020iSXA10,11..ATM199511

main04352-42030iSXA15,16..ATM199709

30520TRANSAXLE ASSY, AUTOMATIC W/TRANSFER

main30520-42013iSXA11..ATM199511-199608

main30520-42030iSXA10,11..ATM199709

main30520-42040iSXA11..ATM199608-199709

3 parts on this diagram · 3 diagrams in section
