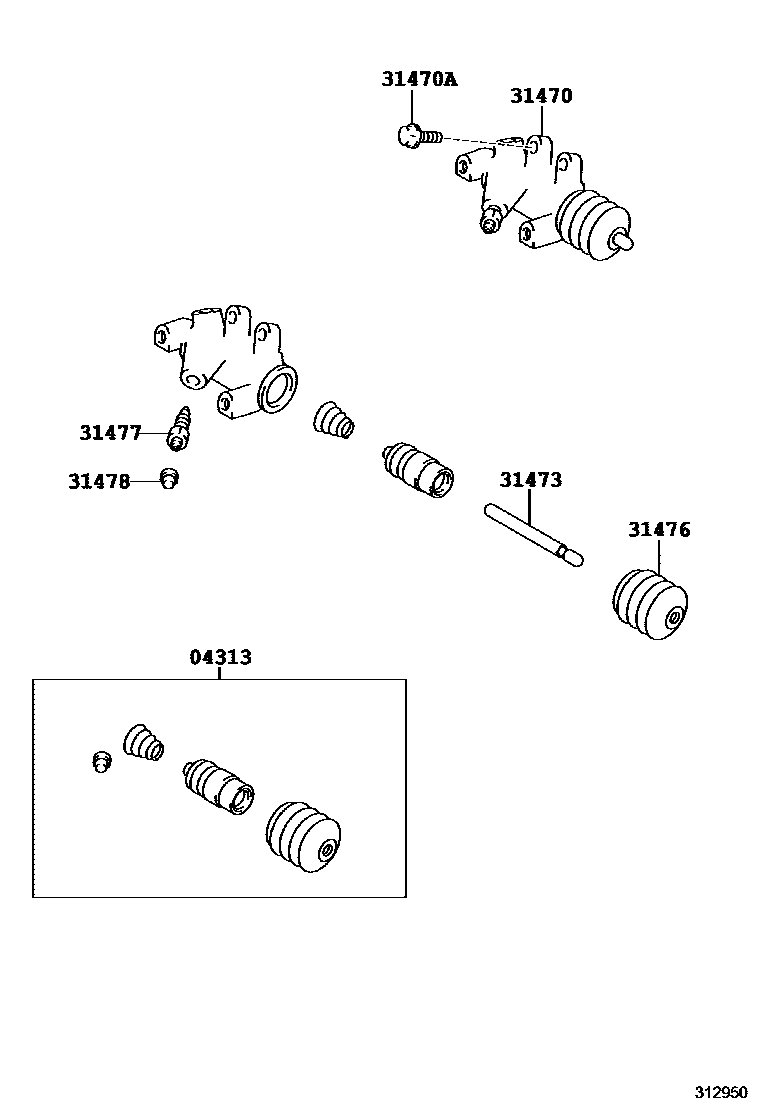

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17020iSXA1#..MTM199511-199608

main04313-42010iSXA1#..MTM199608-200008

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-20210iSXA1#..MTM199511-199608

main31470-42020iSXA1#..MTM199608-200008

sub31470-42010

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822×2iSXA1#..MTM199511-200008

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iSXA1#..MTM199511-200008

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iSXA1#..MTM199511-200008

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iSXA1#..MTM199511-200008

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iSXA1#..MTM199511-200008

7 parts on this diagram · 1 diagram in section
