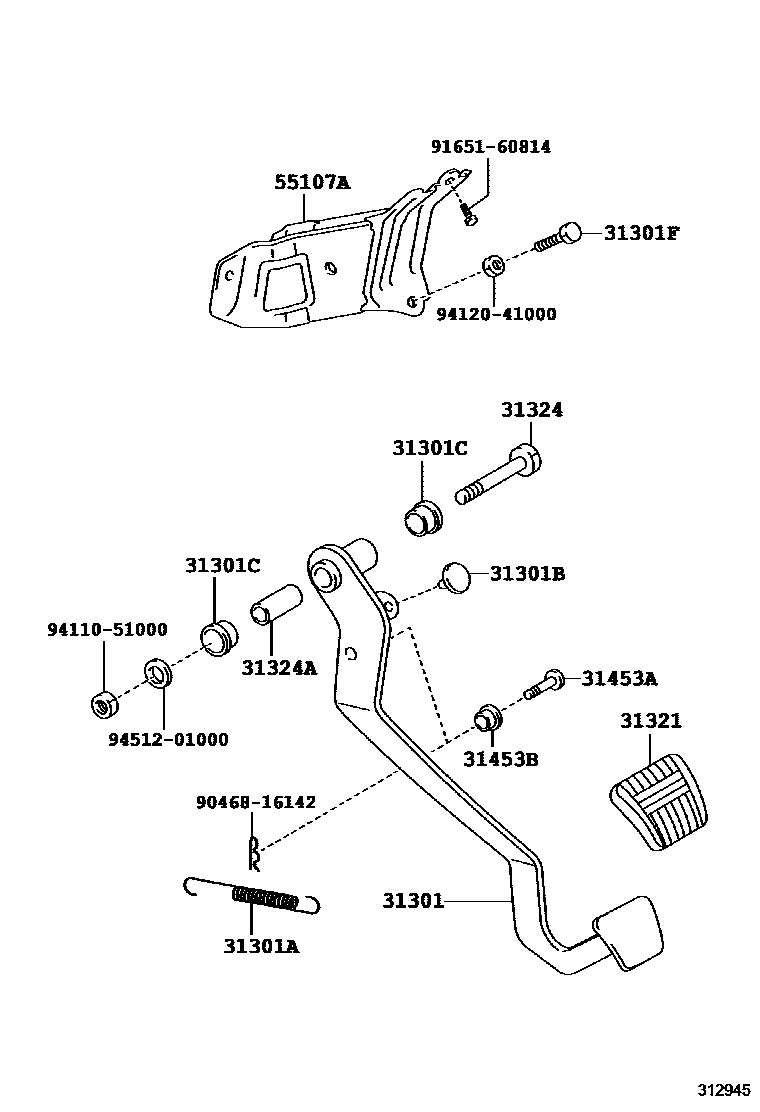

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-42030iSXA1#..MTM199511

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14020iSXA1#..MTM199511

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036×2iSXA1#..MTM199511

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iSXA1#..MTM199511

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iSXA1#..MTM199511

31321PAD, CLUTCH PEDAL

main31321-14020iSXA1#..MTM199511

31324SHAFT, CLUTCH PEDAL

main90101-10015iSXA1#..MTM199511

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iSXA1#..MTM199511

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iSXA1#..MTM199511

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08036iSXA1#..MTM199511

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-42030iSXA1#..MTM199511

9046816142

main90468-16142

9165160814

main91651-60814

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

16 parts on this diagram · 2 diagrams in section
