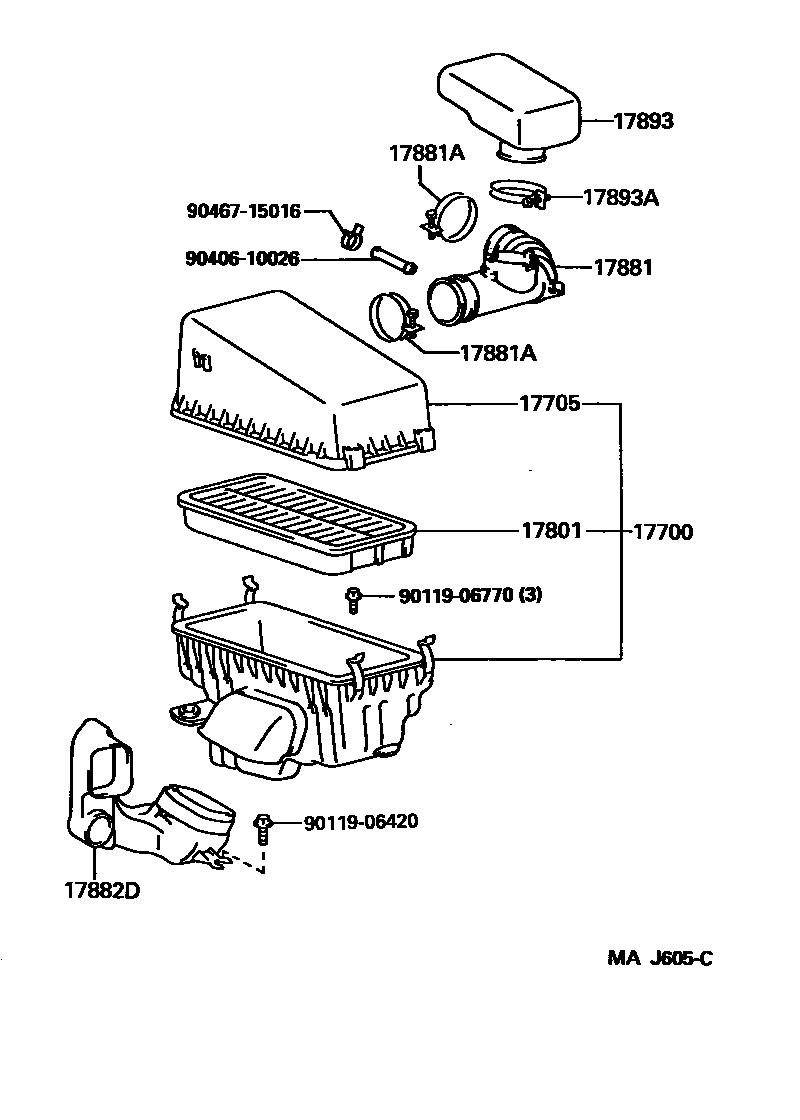

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-74541i3SFE..SXA1#199511-199709

main17700-74542i3SFE..SXA1#199709-199907

main17700-74543i3SFE..SXA1#199907

17705CAP SUB-ASSY, AIR CLEANER

main17705-74381i3SFE..SXA1#199511-199907

main17705-74382i3SFE..SXA1#199907

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-74020i3SFE..SXA1#199511

17881HOSE, AIR CLEANER, NO.1

main17881-74660i3SFE..SXA1#199511-199709

main17881-74880i3SFE..SXA1#199709

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10710×2i3SFE..SXA1#199511

17882DHOSE, COOL AIR INTAKE

main17882-74290i3SFE..SXA1#199709

main17882-74300i3SFE..SXA1#199511-199709

17893RESONATOR, INTAKE AIR

main17893-74330i3SFE..SXA1#199511

17893ACLAMP, HOSE

main96111-10670i3SFE..SXA1#199511

9011906420

main90119-06420

9011906770

main90119-06770

9040610026

main90406-10026

9046715016

main90467-15016

12 parts on this diagram · 2 diagrams in section
