Toyota RAV4 (JPP)662 — CLEARANCE & BACK SONAR

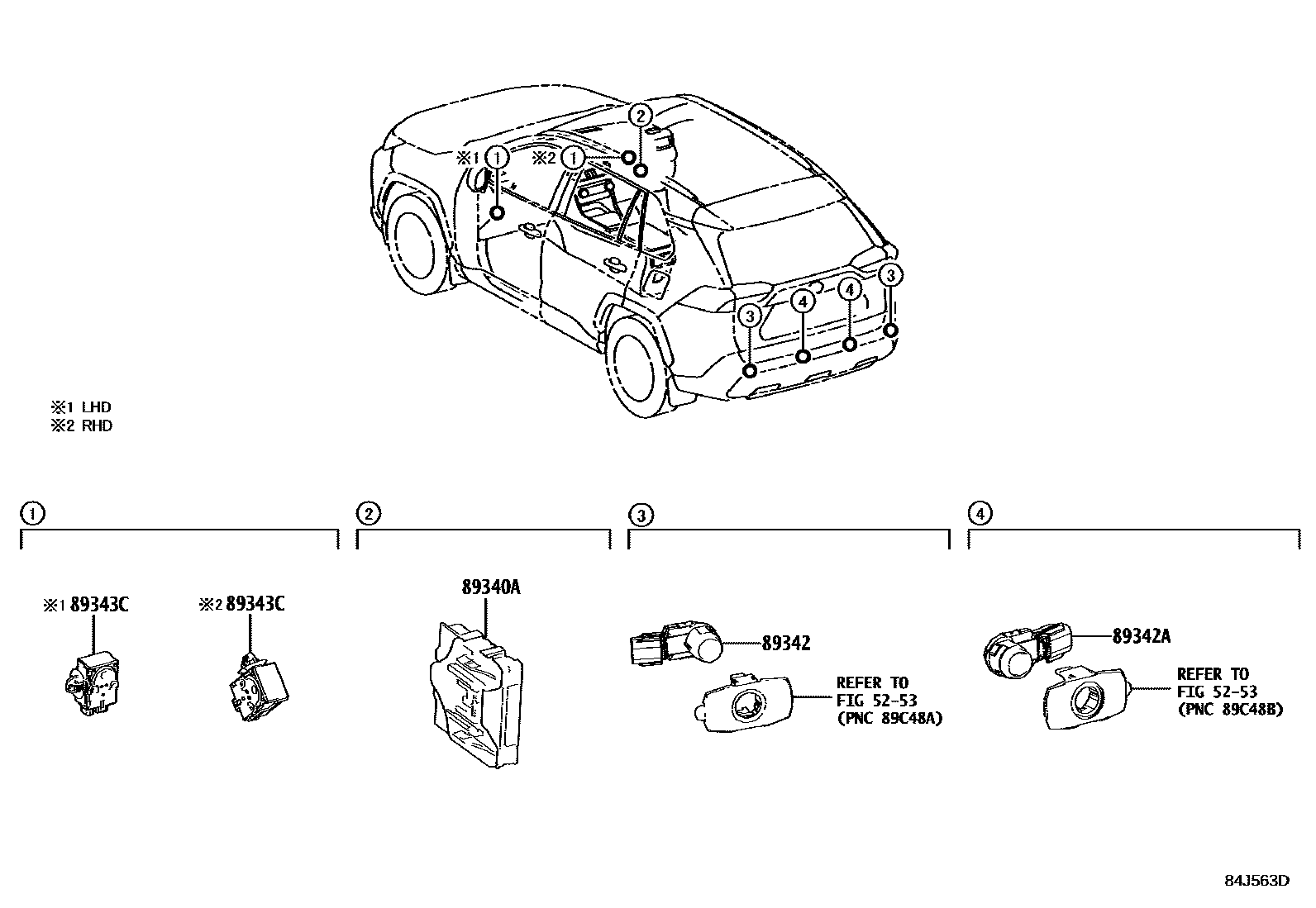

Parts diagram
5253REAR BUMPER & BUMPER STAY
→ Go to FIG 52-53
89340ACOMPUTER ASSY, CLEARANCE WARNING
89342SENSOR, ULTRASONIC, REAR CORNER
89341-60060
89341-K0060
89341-50080
89341-33220
89342ASENSOR, ULTRASONIC, REAR CENTER
89343CBUZZER, CLEARANCE WARNING, NO.1

5 parts on this diagram · 3 diagrams in section

CLEARANCE & BACK SONAR for Toyota RAV4 (JPP)662

This section contains 11 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota RAV4 (JPP)662. Key components include: FRONT BUMPER & BUMPER STAY, REAR BUMPER & BUMPER STAY, CUSHION SET, ULTRASONIC SENSOR, COMPUTER ASSY, CLEARANCE WARNING, SENSOR, ULTRASONIC, FRONT CORNER.
