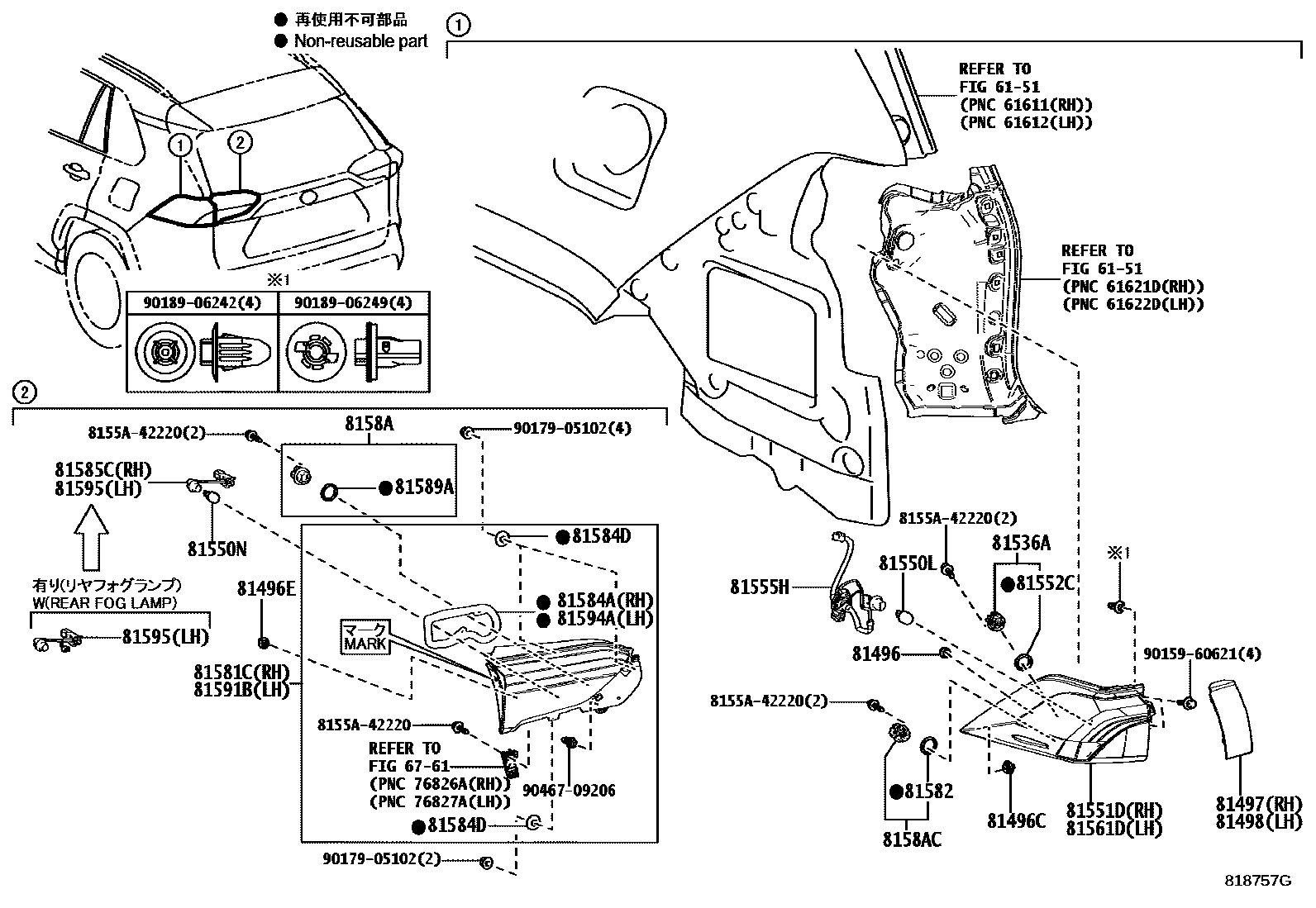

REAR COMBINATION LAMP

0001 1 0002 1

6151SIDE MEMBER

→ Go to FIG 61-51

6761BACK DOOR PANEL & GLASS

→ Go to FIG 67-61

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010×2iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

81496EGUIDE, REAR COMBINATION LAMP, NO.3

main81496-52020×2iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

81497COVER, REAR COMBINATION LAMP, RH

main81497-42010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

81498COVER, REAR COMBINATION LAMP, LH

main81498-42010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

81536ALED, REAR COMBINATION LAMP

main81536-42230×2iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059×2iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-42230iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)202210

81552CGASKET, REAR COMBINATION LAMP

main81538-42200×2iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202004

81555HSOCKET & WIRE, REAR COMBINATION LAMP

main81555-42230×2iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-42230iAXAA54,MXAA5#..RUS202008-202203

81581CLENS AND BODY, REAR LAMP, RH

main81581-42080iAXAA5#,AXAH5#,MXAA5#..LHD..(EUR,GCC,RUS)201811-201908

MARK=R1

main81581-42090iAXAA54,AXAH5#,MXAA5#..RHD..(EUR,SA)201811-201908

main81581-42091iAXAA52,MXAA52..RHD..(G,M)..GEN; MXAA52..RHD..6F..(M,X)..(EUR,SA);AXAA54,AXAH5#,MXAA5#..RHD..(ATM,CVT)..(EUR,SA)201908-202005

REAR FOG LAMP-WITH

main81581-42092iAXAA52,MXAA52..RHD..(G,M)..GEN; AXAA54,AXAH5#,AXAL5#,MXAA5#..RHD..(EUR,SA)202005-202007

REAR FOG LAMP-WITH

main81581-42150supersedes 81581-42080iMXAA54..RUS;AXAH52..G..ARL;AXAH54..ARL,GEN;AXAA5#,MXAA52..ARL,GEN,RUS;AXAH52,MXAA54..LHD..CVT..G..GEN;AXAH52,MXAA54..(M,V,X)..(ARL,GEN)201907-202005

MARK=R3

main81581-42151iAXAH52,AXAL5#..LHD..EUR;AXAH54..LHD..(G,M,P,V)..EUR;AXAA5#,AXAH5#,MXAA5#..JPP..(ARL,GCC,GEN,RUS)202310

81582GASKET, REAR LAMP

main81538-42200×2iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)202210

81584AGASKET, REAR LAMP RH

main81584-42080iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202004

81584DGASKET, REAR LAMP

main81584-22040×6iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA)201811-202007

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-42080iAXAA52..X..GEN;AXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAH5#..RHD..M..GEN;AXAA54..RHD..V..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAA52,AXAL5#..RHD..(ARL,GEN)202008-202111

main81585-42090iAXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

81589AGASKET, REAR LAMP

main81538-42200×2iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310

8158ALED, REAR LAMP

main81536-42200×2iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202004

8158ACLED, STOP LAMP

main81536-42200×2iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

81591BLENS AND BODY, REAR LAMP, LH

main81591-42050iAXAH52..G..ARL;AXAA5#,AXAH54,MXAA52..ARL,GEN;AXAH52,MXAA54..LHD..CVT..G..GEN;AXAH52,MXAA54..(M,V,X)..(ARL,GEN)201811-201907

MARK=L1

main81591-42060iAXAA5#,AXAH5#,MXAA5#..LHD..(EUR,GCC,RUS); AXAA5#,AXAH5#,MXAA5#..LHD..GEN201811-201908

REAR FOG LAMP-WITH

main81591-42061supersedes 81591-42050iAXAA5#..GCC,RUS;AXAH54..LHD..(EUR,GCC);AXAH52,MXAA5#..LHD..(EUR,GCC,RUS); MXAA54..CVT..G..GEN;MXAA54..LHD..(M,V,X)..GEN;AXAA5#,AXAH5#,MXAA52..LHD..GEN201908-202005

REAR FOG LAMP-WITH

main81591-42062iAXAA5#,AXAH5#,AXAL5#,MXAA5#..LHD..(EUR,GCC); AXAA5#,AXAH5#,MXAA5#..LHD..GEN202005-202007

REAR FOG LAMP-WITH

main81591-42120iMXAA52..RHD..6F..(M,X)..(EUR,SA);AXAA54,AXAH5#,MXAA5#..RHD..(ATM,CVT)..(EUR,SA)201908-202005

MARK=L3

main81591-42121iAXAL5#..RHD;AXAH54..LHD..G..GEN;AXAH52..(G,M,P)..GEN;MXAA52..X..(ARL,GEN);AXAH52..RHD..(G,P)..EUR;AXAA54,MXAA54..ARL,GEN,SA;AXAH5#..RHD..(ARL,GEN,SA);MXAA52..(G,M)..(ARL,GEN,SA)202310

81594AGASKET, REAR LAMP LH

main81594-42050iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)202210

81595SOCKET & WIRE, REAR LAMP, LH

main81585-42080iMXAA52..X..SA;MXAA52..G..EUR202210

main81585-42090iAXAH52..(G,M,P)..GEN;AXAA54,AXAH54,MXAA5#..LHD..(G,M,V,X)..GEN; AXAH52..X..GEN;AXAH54..P..GEN;MXAA5#..JPP..(GCC,RUS);AXAA5#,AXAH5#,AXAL5#..LHD..(EUR,GCC)202210-202310

REAR FOG LAMP-WITH

8155A42220

main8155A-42220

9015960621

main90159-60621

9017905102

main90179-05102

9018906242

main90189-06242

9018906249

main90189-06249

9046709206

main90467-09206

31 parts on this diagram · 2 diagrams in section
