EPC Data

SEAT & SEAT TRACK

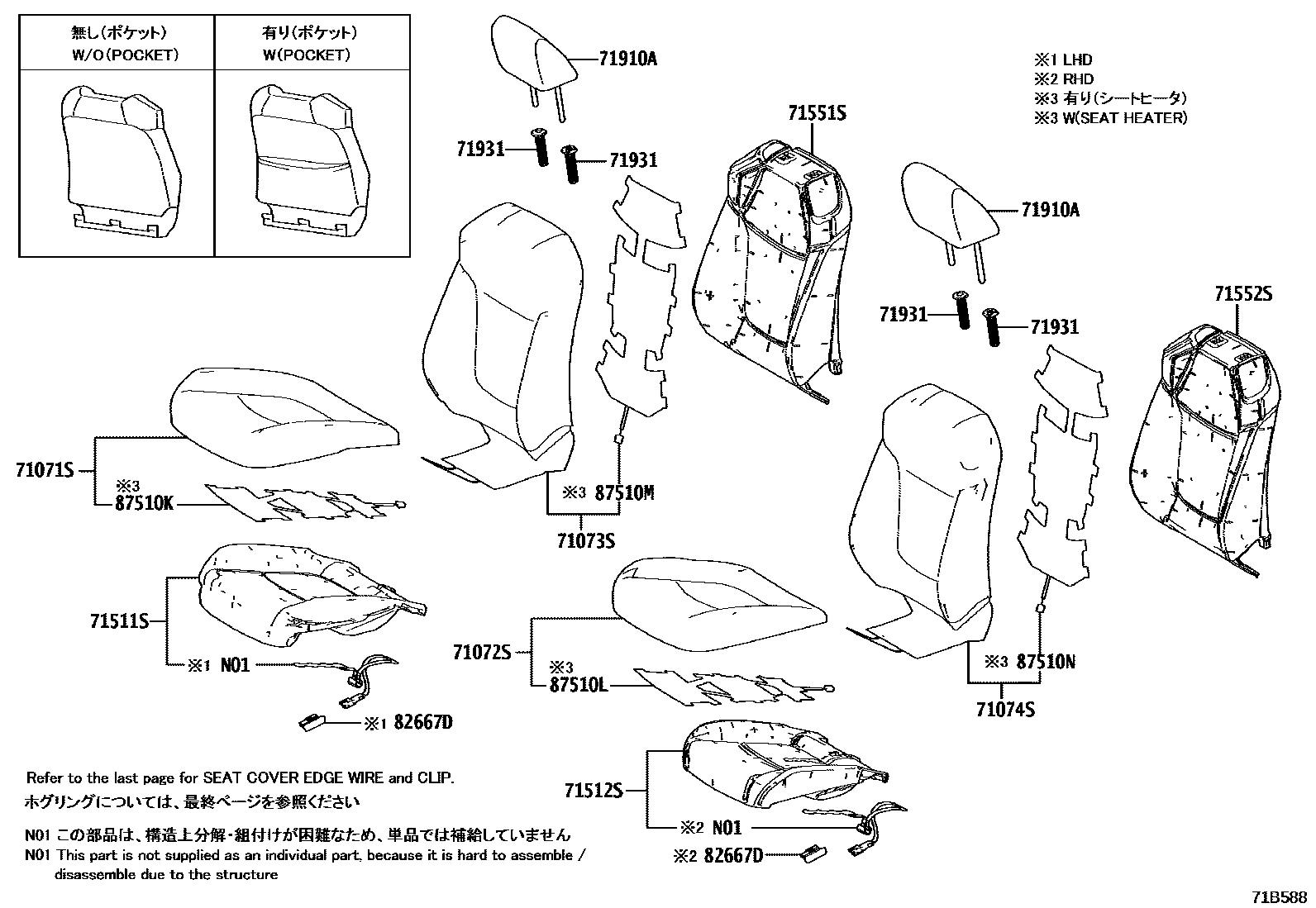

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-0R370-C1i202010-202102
BLACK,TRIM2#
main71071-0R371-C2i202102-202203
BLACK,TRIM2#
main71071-0R380-C1i202010-202102
BLACK,TRIM2#
main71071-0R381-C2i202102-202203
BLACK,TRIM2#
main71071-42860-A3i201901-202007
GALLANT BEIGE,TRIM4#
main71071-42860-C3i201811-201910
BLACK,TRIM2#
main71071-42861-A5i202008-202210
GALLANT BEIGE,TRIM4#
main71071-42861-C5i202008-202210
BLACK,TRIM2#
main71071-42861-C6i202210-202310
BLACK,TRIM2#
main71071-42880-A3i201901-202007
GALLANT BEIGE,TRIM4#
main71071-42880-B3i201901-202007
NEUTRAL WARM GRAY,TRIM1#
main71071-42880-C3i201910-202007
BLACK,TRIM2#
main71071-42881-A4i202008-202210
GALLANT BEIGE,TRIM4#
main71071-42881-A5i202310
GALLANT BEIGE,TRIM4#
main71071-42881-B4i202008-202210
NEUTRAL WARM GRAY,TRIM1#
main71071-42881-B5i202210-202310
NEUTRAL WARM GRAY,TRIM1#
main71071-42881-C5i202008-202210
BLACK,TRIM2#
main71071-42881-C6i202210-202310
BLACK,TRIM2#
main71071-42A30-20i201901-202007
BLACK,TRIM2#
main71071-42A30-21i202008-202210
ORCHID BROWN,TRIM4#
main71071-42A30-26i202210-202310
BLACK/ORANGE,TRIM2#
main71071-42A30-27i202210-202310
ORCHID BROWN/ORANGE,TRIM4#
main71071-42C30-C3i202112-202210
BLACK,TRIM20
main71071-42C30-C4i202112-202210
BLACK/LT.GRAY,TRIM20
main71071-42C30-C5i202210-202310
BLACK/BLUE,TRIM2#
main71071-42C40-A2i201811-201909
GALLANT BEIGE,TRIM4#
main71071-42C40-A3i202008-202210
GALLANT BEIGE,TRIM4#
main71071-42C40-A5i202210-202310
GALLANT BEIGE,TRIM4#
main71071-42C40-B5i201811-202007
GRAY,TRIM1#
main71071-42C40-B6i202008-202112
GRAY,TRIM1#
main71071-42C40-B8i202310
GRAY,TRIM1#
main71071-42C40-C3i201811-201909
BLACK,TRIM2#
main71071-42C40-C4i202008-202210
BLACK,TRIM2#
main71071-42C40-C6i202210-202310
BLACK,TRIM2#
main71071-42C60-A3i201811-202007
GALLANT BEIGE,TRIM4#
main71071-42C60-C3i201811-202007
BLACK,TRIM2#
main71071-42C61-A4i202008-202111
GALLANT BEIGE,TRIM4#
main71071-42C61-A5i202210-202310
GALLANT BEIGE,TRIM4#
main71071-42C61-C5i202008-202111
BLACK,TRIM2#
main71071-42C61-C6i202210-202310
BLACK,TRIM2#
main71071-42C70-C5supersedes 71071-42C60-C3i201902-201909
BLACK,TRIM2#
main71071-42C71-C8supersedes 71071-42C81-C7i202210-202310
COLD AREA SPEC,BLACK,TRIM2#
main71071-42C80-A3i201811-202007
GALLANT BEIGE,TRIM4#
main71071-42C80-B3i201811-202007
NEUTRAL WARM GRAY,TRIM1#
main71071-42C80-C3i201811-202007
BLACK,TRIM2#
main71071-42C81-A4i202008-202210
GALLANT BEIGE,TRIM4#
main71071-42C81-A6i202310
GALLANT BEIGE,TRIM4#
main71071-42C81-B4i202008-202210
NEUTRAL WARM GRAY,TRIM1#
main71071-42C81-B6i202310
NEUTRAL WARM GRAY,TRIM1#
main71071-42C81-C4i202008-202210
BLACK,TRIM2#
main71071-42C81-C7i202310
BLACK,TRIM2#
main71071-42D40-20i202210-202306
BLACK/RED,TRIM20
main71071-42D40-21i202306-202310
BLACK/ORANGE,TRIM2#
main71071-42D40-22i202210-202310
ORCHID BROWN/ORANGE,TRIM4#
main71071-42D40-C6i202008-202111
BLACK,TRIM2#
main71071-42D40-C8i202008-202111
ORCHID BROWN,TRIM4#
main71071-42D40-C9i202008-202210
BLACK/RED,TRIM20
main71071-42D70-C3i202112-202210
BLACK,TRIM20
main71071-42D70-C4i202112-202210
BLACK/LT.GRAY,TRIM20
main71071-42D70-C5i202310
BLACK/BLUE,TRIM2#
main71071-42D90-A3i201811-202007
GALLANT BEIGE,TRIM4#
main71071-42D90-A5i202310
GALLANT BEIGE,TRIM4#
main71071-42D90-B6i201811-201909
GRAY,TRIM1#
main71071-42D90-B8i202310
GRAY,TRIM1#
main71071-42D90-C4i201811-202007
BLACK,TRIM2#
main71071-42D90-C6i202310
BLACK,TRIM2#
main71071-42E00-A2supersedes 71071-42D90-A4i201811-202007
SEAT HEATER-WITH(*DRP:SEAT VENTILATION),GALLANT BEIGE,TRIM4#
main71071-42E00-A3i202008-202210
SEAT HEATER-WITH(*DRP), W(SEAT VENTILATION),GALLANT BEIGE,TRIM4#
main71071-42E00-A4i202210-202310
SEAT HEATER-WITH(*DRP:SEAT VENTILATION),GALLANT BEIGE,TRIM4#
main71071-42E00-B5supersedes 71071-42D90-B7i201811-202007
SEAT HEATER-WITH(*DRP:SEAT VENTILATION),GRAY,TRIM1#
main71071-42E00-B6i202008-202210
GRAY,TRIM1#
main71071-42E00-B7i202310
SEAT HEATER-WITH(*DRP:SEAT VENTILATION),GRAY,TRIM1#
main71071-42E00-C3supersedes 71071-42D90-C5i201811-202007
SEAT HEATER-WITH(*DRP:SEAT VENTILATION),BLACK,TRIM2#
main71071-42E00-C4i202008-202210
SEAT HEATER-WITH(*DRP), W(SEAT VENTILATION),BLACK,TRIM2#
main71071-42E00-C5i202310
SEAT HEATER-WITH(*DRP:SEAT VENTILATION),BLACK,TRIM2#
main71071-42E10-A2i201901-202007
GALLANT BEIGE,TRIM4#
main71071-42E10-A3i202008-202210
GALLANT BEIGE,TRIM4#
main71071-42E10-A4i202210-202310
TAIWAN SPEC&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE&SEAT HEATER-WITH(*DRP:SEAT VENTILATION)&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),GALLANT BEIGE,TRIM4#
main71071-42E10-B5i201901-202007
GRAY,TRIM1#
main71071-42E10-B6i202008-202111
GRAY,TRIM1#
main71071-42E10-B7i202210-202310
TAIWAN SPEC&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE&SEAT HEATER-WITH(*DRP:SEAT VENTILATION)&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),GRAY,TRIM1#
main71071-42E10-C3i201901-202004
BLACK,TRIM2#
main71071-42E10-C4i202008-202111
BLACK,TRIM2#
main71071-42E10-C5i202310
BLACK,TRIM2#
main71071-42L10-C0i202112-202210
BLACK/ORANGE,TRIM2#
main71071-42L10-C1i202310
BLACK/ORANGE,TRIM2#
main71071-42L20-A0supersedes 71071-42D90-A4i202112-202210
COLD AREA SPEC,WITH(REAR SEAT HEATER),GALLANT BEIGE,TRIM4#
main71071-42L20-A1i202210-202310
COLD AREA SPEC,WITH(REAR SEAT HEATER),GALLANT BEIGE,TRIM4#
main71071-42L20-B0supersedes 71071-42D90-B7i202112-202210
COLD AREA SPEC,WITH(REAR SEAT HEATER),GRAY,TRIM1#
main71071-42L20-B1i202210-202310
COLD AREA SPEC,WITH(REAR SEAT HEATER),GRAY,TRIM1#
main71071-42L20-C0supersedes 71071-42D90-C5i202112-202210
COLD AREA SPEC,WITH(REAR SEAT HEATER),BLACK,TRIM2#
main71071-42L20-C1i202310
COLD AREA SPEC,WITH(REAR SEAT HEATER),BLACK,TRIM2#
main71071-42L30-C0i202112-202210
BLACK,TRIM2#
main71071-42L30-C2i202210-202310
BLACK/ORANGE,TRIM2#
main71071-42890-C4i201811-202007
LEATHER PACKAGE,BLACK,TRIM2#
main71071-42890-C5i202008-202112
LEATHER PACKAGE,BLACK,TRIM2#
main71071-42A00-C3i201910-202007
LEATHER PACKAGE&SEAT COVER MATERIAL-ART-LEATHER(XLE+/LIMITED)&FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main71071-42A00-C4i202008-202210
LEATHER PACKAGE&SEAT COVER MATERIAL-ART-LEATHER(XLE, LIMITED)&FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main71071-42A00-C6supersedes 71071-42881-C6i202210-202310
LEATHER PACKAGE&SEAT COVER MATERIAL-ART-LEATHER(XLE+/LIMITED)&FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main71071-42C71-C7i202008-202210
COLD AREA SPEC,WITH(STEERING HEATER),BLACK,TRIM2#
main71071-42D00-C3supersedes 71071-42C80-C3i201811-202007
LEATHER PACKAGE&SEAT COVER MATERIAL-ART-LEATHER(XLE+/LIMITED)&SEAT HEATER-HI-LO(*DRP),BLACK,TRIM2#
main71071-42D00-C5i202112-202210
LEATHER PACKAGE&COLD AREA SPEC&FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main71071-42D00-C7i202210
LEATHER PACKAGE&COLD AREA SPEC&FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main71071-42D20-C0i201811-202007
LEATHER PACKAGE&SEAT COVER MATERIAL-ART-LEATHER(XLE+/LIMITED),BLACK,TRIM2#
main71071-42D20-C1i202008-202112
LEATHER PACKAGE&SEAT COVER MATERIAL-ART-LEATHER(XLE, LIMITED),BLACK,TRIM2#
main71071-42E20-A3supersedes 71071-42D90-A3i201811-202007
COLD AREA SPEC,WITH(REAR SEAT HEATER),GALLANT BEIGE,TRIM4#
main71071-42E20-A4supersedes 71071-42D90-A4i202008-202112
COLD AREA SPEC,WITH(REAR SEAT HEATER),GALLANT BEIGE,TRIM4#
main71071-42E20-B5supersedes 71071-42D90-B6i201811-201909
COLD AREA SPEC,WITH(REAR SEAT HEATER),GRAY,TRIM1#
main71071-42E20-B6supersedes 71071-42D90-B7i202008-202112
COLD AREA SPEC,WITH(REAR SEAT HEATER),GRAY,TRIM1#
main71071-42E20-C3supersedes 71071-42D90-C4i201811-202004
COLD AREA SPEC,WITH(REAR SEAT HEATER),BLACK,TRIM2#
main71071-42E20-C4supersedes 71071-42D90-C5i202008-202112
COLD AREA SPEC,WITH(REAR SEAT HEATER),BLACK,TRIM2#
main71071-42E30-A3i201901-202007
LEATHER PACKAGE,GALLANT BEIGE,TRIM4#
main71071-42E30-A4i202008-202112
LEATHER PACKAGE,GALLANT BEIGE,TRIM4#
main71071-42E30-B6i201901-202007
LEATHER PACKAGE,GRAY,TRIM1#
main71071-42E30-B7i202008-202112
LEATHER PACKAGE,GRAY,TRIM1#
main71071-42E30-C4i201901-202007
LEATHER PACKAGE,BLACK,TRIM2#
main71071-42E30-C5i202008-202112
LEATHER PACKAGE,BLACK,TRIM2#
main71071-42E40-A3i201901-202007
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER,GALLANT BEIGE,TRIM4#
main71071-42E40-A4i202112-202210
SEAT COVER MATERIAL-LEATHER,GALLANT BEIGE,TRIM4#
main71071-42E40-A5i202310
SEAT COVER MATERIAL-LEATHER,GALLANT BEIGE,TRIM4#
main71071-42E40-B6i201811-202007
LEATHER PACKAGE,GRAY,TRIM1#
main71071-42E40-B7i202008-202112
LEATHER PACKAGE,GRAY,TRIM1#
main71071-42E40-B8i202210-202310
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),GRAY,TRIM1#
main71071-42E40-C4i201901-202007
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71071-42E40-C5i202112-202210
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM2#
main71071-42E40-C6i202210-202310
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM2#
main71071-42G80-C0i201910-202007
LEATHER PACKAGE&FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main71071-42G80-C1i202008-202112
LEATHER PACKAGE&FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main71071-42L60-C3supersedes 71071-42C30-C5i202210-202310
GR-S PACKAGE&SEAT COVER MATERIAL-GR-S(SPORTY)&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE,BLACK/LT.GRAY,TRIM2#
main71071-42M10-C0i202310
GR-S PACKAGE&SEAT COVER MATERIAL-GR-S(SPORTY)&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE,BLACK/LT.GRAY,TRIM2#
main71071-YY450i202010-202112
"STYLE PACKAGE"
main71071-YY451i202112-202203
"STYLE PACKAGE"
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0R390-C1i201910-202009
BLACK,TRIM2#
main71072-0R391-C2i202102-202203
BLACK,TRIM2#
main71072-0R400-C1i201910-202010
BLACK,TRIM2#
main71072-0R401-C2i202102-202203
BLACK,TRIM2#
main71072-42690-A3i201901-201910
GALLANT BEIGE,TRIM4#
main71072-42690-C3i201811-201910
BLACK,TRIM2#
main71072-42691-A5i202008-202111
GALLANT BEIGE,TRIM4#
main71072-42691-C5i202008-202210
BLACK,TRIM2#
main71072-42691-C6i202310
BLACK,TRIM2#
main71072-42710-A3i201811-202007
GALLANT BEIGE,TRIM4#
main71072-42710-C3i201811-202007
BLACK,TRIM2#
main71072-42711-A4i202008-202111
GALLANT BEIGE,TRIM4#
main71072-42711-A5i202310
GALLANT BEIGE,TRIM4#
main71072-42711-C5i202008-202111
BLACK,TRIM2#
main71072-42711-C6i202210-202310
BLACK,TRIM2#
main71072-42730-A3i201901-202007
GALLANT BEIGE,TRIM4#
main71072-42730-B3i201910-202007
NEUTRAL WARM GRAY,TRIM1#
main71072-42730-C3i201910-202007
BLACK,TRIM2#
main71072-42731-A4i202008-202111
GALLANT BEIGE,TRIM4#
main71072-42731-A5i202210-202310
GALLANT BEIGE,TRIM4#
main71072-42731-B4i202008-202111
NEUTRAL WARM GRAY,TRIM1#
main71072-42731-B5i202210-202310
NEUTRAL WARM GRAY,TRIM1#
main71072-42731-C5i202008-202210
BLACK,TRIM2#
main71072-42731-C6i202310
BLACK,TRIM2#
main71072-42740-C4supersedes 71072-42710-C3i201902-201909
BLACK,TRIM2#
main71072-42741-C7supersedes 71072-42751-C7i202210-202310
COLD AREA SPEC,WITHOUT(REAR SEAT HEATER),BLACK,TRIM2#
main71072-42750-A3i201811-202007
GALLANT BEIGE,TRIM4#
main71072-42750-B3i201811-202007
NEUTRAL WARM GRAY,TRIM1#
main71072-42750-C3i201811-202007
BLACK,TRIM2#
main71072-42751-A4i202008-202210
GALLANT BEIGE,TRIM4#
main71072-42751-A6i202310
GALLANT BEIGE,TRIM4#
main71072-42751-B4i202008-202210
NEUTRAL WARM GRAY,TRIM1#
main71072-42751-B6i202310
NEUTRAL WARM GRAY,TRIM1#
main71072-42751-C4i202008-202210
BLACK,TRIM2#
main71072-42751-C7i202310
BLACK,TRIM2#
main71072-42A50-20i201901-202007
BLACK,TRIM2#
main71072-42A50-21i202008-202111
ORCHID BROWN,TRIM4#
main71072-42A50-26i202310
BLACK/ORANGE,TRIM2#
main71072-42A50-27i202310
ORCHID BROWN/ORANGE,TRIM4#
main71072-42A80-20i202210-202306
BLACK/RED,TRIM20
main71072-42A80-21i202310
BLACK/ORANGE,TRIM2#
main71072-42A80-22i202210-202310
ORCHID BROWN/ORANGE,TRIM4#
main71072-42A80-C6i202008-202210
BLACK,TRIM20
main71072-42A80-C8i201811-202007
ORCHID BROWN,TRIM4#
main71072-42A80-C9i202008-202210
BLACK/RED,TRIM20
main71072-42B00-C3i202112-202210
BLACK,TRIM20
main71072-42B00-C4i202112-202210
BLACK/LT.GRAY,TRIM20
main71072-42B00-C5i202210-202310
BLACK/BLUE,TRIM2#
main71072-42B10-C3i202112-202210
BLACK,TRIM20
main71072-42B10-C4i202112-202210
BLACK/LT.GRAY,TRIM20
main71072-42B10-C5i202210-202310
BLACK/BLUE,TRIM2#
main71072-42B20-A2i201811-201909
GALLANT BEIGE,TRIM4#
main71072-42B20-A3i202008-202112
GALLANT BEIGE,TRIM4#
main71072-42B20-B5i201811-201909
GRAY,TRIM1#
main71072-42B20-B6i202008-202112
GRAY,TRIM1#
main71072-42B20-C3i201811-201909
BLACK,TRIM2#
main71072-42B20-C4i202008-202111
BLACK,TRIM2#
main71072-42B30-A2i201811-202007
GALLANT BEIGE,TRIM4#
main71072-42B30-A3i202008-202210
GALLANT BEIGE,TRIM4#
main71072-42B30-A4i202210
GALLANT BEIGE,TRIM4#
main71072-42B30-B5i201811-201909
GRAY,TRIM1#
main71072-42B30-B6i202112-202210
GRAY,TRIM1#
main71072-42B30-B7i202210
GRAY,TRIM1#
main71072-42B30-C3i201811-201909
BLACK,TRIM2#
main71072-42B30-C4i202008-202210
BLACK,TRIM2#
main71072-42B30-C5i202210
BLACK,TRIM2#
main71072-42B60-A4i202112-202210
GALLANT BEIGE,TRIM4#
main71072-42B60-A5i202210-202310
COLD AREA SPEC,WITH(REAR SEAT HEATER),GALLANT BEIGE,TRIM4#
main71072-42B60-B6i202112-202210
GRAY,TRIM1#
main71072-42B60-B7i202310
COLD AREA SPEC,WITH(REAR SEAT HEATER),GRAY,TRIM1#
main71072-42B60-C4i202112-202210
BLACK,TRIM2#
main71072-42B60-C5i202210-202310
COLD AREA SPEC,WITH(REAR SEAT HEATER),BLACK,TRIM2#
main71072-42B70-A2i201811-202007
SEAT HEATER-WITH(*DRP:SEAT VENTILATION),GALLANT BEIGE,TRIM4#
main71072-42B70-A3i202008-202210
SEAT HEATER-WITH(*DRP), W(SEAT VENTILATION),GALLANT BEIGE,TRIM4#
main71072-42B70-A4i202310
TAIWAN SPEC&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE&SEAT HEATER-WITH(*DRP:SEAT VENTILATION)&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),GALLANT BEIGE,TRIM4#
main71072-42B70-B5i201811-202007
SEAT HEATER-WITH(*DRP:SEAT VENTILATION),GRAY,TRIM1#
main71072-42B70-B6i202008-202210
GRAY,TRIM1#
main71072-42B70-B7i202210-202310
SEAT HEATER-WITH(*DRP:SEAT VENTILATION),GRAY,TRIM1#
main71072-42B70-C3i201811-202007
SEAT HEATER-WITH(*DRP:SEAT VENTILATION),BLACK,TRIM2#
main71072-42B70-C4i202008-202210
SEAT HEATER-WITH(*DRP), W(SEAT VENTILATION),BLACK,TRIM2#
main71072-42B70-C5i202310
SEAT HEATER-WITH(*DRP:SEAT VENTILATION),BLACK,TRIM2#
main71072-42B90-A2i201901-202004
GALLANT BEIGE,TRIM4#
main71072-42B90-A3i202008-202111
GALLANT BEIGE,TRIM4#
main71072-42B90-A4i202210-202310
GALLANT BEIGE,TRIM4#
main71072-42B90-B5i201901-202007
GRAY,TRIM1#
main71072-42B90-B6i202008-202111
GRAY,TRIM1#
main71072-42B90-B7i202210-202310
GRAY,TRIM1#
main71072-42B90-C3i201901-202004
BLACK,TRIM2#
main71072-42B90-C4i202008-202111
BLACK,TRIM2#
main71072-42B90-C5i202210-202310
BLACK,TRIM2#
main71072-42J00-C0i202112-202210
BLACK,TRIM2#
main71072-42J00-C2i202310
BLACK/ORANGE,TRIM2#
main71072-42J30-C0i202112-202210
BLACK/ORANGE,TRIM2#
main71072-42J30-C1i202210-202310
BLACK/ORANGE,TRIM2#
main71072-42741-C6i202112-202210
COLD AREA SPEC,BLACK,TRIM2#
main71072-42760-C4i201811-202007
LEATHER PACKAGE,BLACK,TRIM2#
main71072-42760-C5i202008-202112
LEATHER PACKAGE,BLACK,TRIM2#
main71072-42A00-C3i201910-202007
LEATHER PACKAGE&SEAT COVER MATERIAL-ART-LEATHER(XLE+/LIMITED)&FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main71072-42A00-C4i202008-202112
LEATHER PACKAGE&SEAT COVER MATERIAL-ART-LEATHER(XLE, LIMITED),BLACK,TRIM2#
main71072-42A00-C6supersedes 71072-42731-C6i202310
LEATHER PACKAGE&SEAT COVER MATERIAL-ART-LEATHER(XLE, LIMITED)&FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main71072-42A20-C4supersedes 71072-42750-C3i201811-202004
LEATHER PACKAGE&COLD AREA SPEC,WITH(STEERING HEATER)&SEAT COVER MATERIAL-ART-LEATHER(XLE+/LIMITED),BLACK,TRIM2#
main71072-42A20-C5i202008-202112
LEATHER PACKAGE&SEAT COVER MATERIAL-ART-LEATHER(XLE, LIMITED)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-42A30-C3i201910-202007
LEATHER PACKAGE&COLD AREA SPEC&SEAT COVER MATERIAL-ART-LEATHER(XLE+/LIMITED)&FRONTSEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main71072-42A30-C5i202112-202210
LEATHER PACKAGE&COLD AREA SPEC&FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main71072-42A30-C7i202210
LEATHER PACKAGE&COLD AREA SPEC&FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main71072-42B40-A3i201901-202007
LEATHER PACKAGE,GALLANT BEIGE,TRIM4#
main71072-42B40-A4i202008-202112
LEATHER PACKAGE,GALLANT BEIGE,TRIM4#
main71072-42B40-B6i201901-202007
LEATHER PACKAGE,GRAY,TRIM1#
main71072-42B40-B7i202008-202112
LEATHER PACKAGE,GRAY,TRIM1#
main71072-42B40-C4i201901-202007
LEATHER PACKAGE,BLACK,TRIM2#
main71072-42B40-C5i202008-202112
LEATHER PACKAGE,BLACK,TRIM2#
main71072-42B50-A3i201811-202007
LEATHER PACKAGE,GALLANT BEIGE,TRIM4#
main71072-42B50-A4i202112-202210
SEAT COVER MATERIAL-LEATHER,GALLANT BEIGE,TRIM4#
main71072-42B50-A5i202210-202310
SEAT COVER MATERIAL-LEATHER,GALLANT BEIGE,TRIM4#
main71072-42B50-B6i201811-202007
LEATHER PACKAGE,GRAY,TRIM1#
main71072-42B50-B7i202112-202210
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),GRAY,TRIM1#
main71072-42B50-B8i202210-202310
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),GRAY,TRIM1#
main71072-42B50-C4i201811-202007
LEATHER PACKAGE,BLACK,TRIM2#
main71072-42B50-C5i202112-202210
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM2#
main71072-42B50-C6i202310
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM2#
main71072-42B60-A3supersedes 71072-42B30-A2i201811-201909
COLD AREA SPEC,WITH(REAR SEAT HEATER),GALLANT BEIGE,TRIM4#
main71072-42B60-B5supersedes 71072-42B30-B5i201811-201909
COLD AREA SPEC,WITH(REAR SEAT HEATER),GRAY,TRIM1#
main71072-42B60-C3supersedes 71072-42B30-C3i201811-202004
COLD AREA SPEC,WITH(REAR SEAT HEATER),BLACK,TRIM2#
main71072-42J40-C3i202210-202310
GR-S PACKAGE&SEAT COVER MATERIAL-GR-S(SPORTY)&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE,BLACK/LT.GRAY,TRIM2#
main71072-42J50-C3supersedes 71072-42B00-C5i202310
GR-S PACKAGE&SEAT COVER MATERIAL-GR-S(SPORTY)&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE,BLACK/LT.GRAY,TRIM2#
main71072-YY440i202010-202112
"STYLE PACKAGE"
main71072-YY441i202112-202203
"STYLE PACKAGE"
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-0R500-C1i202010-202102
BLACK,TRIM2#
main71073-0R501-C3i202102-202203
BLACK,TRIM2#
main71073-0R510-C1i202010-202102
BLACK,TRIM2#
main71073-0R511-C3i202102-202203
BLACK,TRIM2#
main71073-42C50-A4i202008-202210
GALLANT BEIGE,TRIM4#
main71073-42C50-C5i202008-202210
BLACK,TRIM2#
main71073-42C50-C8i202310
BLACK,TRIM2#
main71073-42D70-22i202210-202310
BLACK/ORANGE,TRIM2#
main71073-42D70-23i202210-202310
ORCHID BROWN/ORANGE,TRIM4#
main71073-42D70-C6i202008-202210
BLACK,TRIM2#
main71073-42D70-C7i202008-202111
ORCHID BROWN,TRIM4#
main71073-42E00-C3i202112-202210
BLACK,TRIM20
main71073-42E00-C4i202112-202210
BLACK/LT.GRAY,TRIM20
main71073-42E00-C6i202310
BLACK/BLUE,TRIM2#
main71073-42E40-C6supersedes 71073-42E60-C5i201902-201909
BLACK,TRIM2#
main71073-42E40-C8supersedes 71073-42E60-C7i202210-202310
BLACK,TRIM2#
main71073-42E60-A4i201811-202007
GALLANT BEIGE,TRIM4#
main71073-42E60-A6i202310
GALLANT BEIGE,TRIM4#
main71073-42E60-B4i201811-202007
NEUTRAL WARM GRAY,TRIM1#
main71073-42E60-B6i202310
NEUTRAL WARM GRAY,TRIM1#
main71073-42E60-C5i202008-202210
BLACK,TRIM2#
main71073-42E60-C7i202310
BLACK,TRIM2#
main71073-42F10-A0i201901-202007
GALLANT BEIGE,TRIM4#
main71073-42F10-A2i202210-202310
GALLANT BEIGE,TRIM4#
main71073-42F10-B0i202008-202210
NEUTRAL WARM GRAY,TRIM1#
main71073-42F10-B2i202210-202310
NEUTRAL WARM GRAY,TRIM1#
main71073-42F10-C1i202008-202111
BLACK,TRIM2#
main71073-42F10-C3i202310
BLACK,TRIM2#
main71073-42G50-A4i201811-202007
GALLANT BEIGE,TRIM4#
main71073-42G50-A6i202210-202310
GALLANT BEIGE,TRIM4#
main71073-42G50-B6i202008-202210
GRAY,TRIM1#
main71073-42G50-B8i202310
GRAY,TRIM1#
main71073-42G50-C4i201811-202007
BLACK,TRIM2#
main71073-42G50-C6i202210-202310
BLACK,TRIM2#
main71073-42G60-A3i202008-202210
SEAT HEATER-WITH(*DRP), W(SEAT VENTILATION),GALLANT BEIGE,TRIM4#
main71073-42G60-A5i202310
TAIWAN SPEC&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE&SEAT HEATER-WITH(*DRP:SEAT VENTILATION)&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),GALLANT BEIGE,TRIM4#
main71073-42G60-B5i202008-202111
GRAY,TRIM1#
main71073-42G60-B7i202210-202310
TAIWAN SPEC&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE&SEAT HEATER-WITH(*DRP:SEAT VENTILATION)&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),GRAY,TRIM1#
main71073-42G60-C3i201811-202007
SEAT HEATER-WITH(*DRP:SEAT VENTILATION),BLACK,TRIM2#
main71073-42G60-C5i202210-202310
SEAT HEATER-WITH(*DRP:SEAT VENTILATION),BLACK,TRIM2#
main71073-42J00-A1i202008-202111
GALLANT BEIGE,TRIM4#
main71073-42J00-A3i202210-202310
GALLANT BEIGE,TRIM4#
main71073-42J00-C2i202008-202210
BLACK,TRIM2#
main71073-42J00-C5i202210-202310
BLACK,TRIM2#
main71073-42J40-A0i202008-202111
GALLANT BEIGE,TRIM4#
main71073-42J40-A2i202210-202310
GALLANT BEIGE,TRIM4#
main71073-42J40-B1i201901-202004
GRAY,TRIM1#
main71073-42J40-B3i202310
GRAY,TRIM1#
main71073-42J40-C0i202008-202111
BLACK,TRIM2#
main71073-42J40-C2i202210-202310
BLACK,TRIM2#
main71073-42J50-C0i202008-202111
BLACK,TRIM2#
main71073-42J50-C1i202008-202210
ORCHID BROWN,TRIM4#
main71073-42J50-C4i202310
BLACK/ORANGE,TRIM2#
main71073-42J50-C5i202210-202310
ORCHID BROWN/ORANGE,TRIM4#
main71073-42J60-A0i202008-202210
GALLANT BEIGE,TRIM4#
main71073-42J60-A3i202210
GALLANT BEIGE,TRIM4#
main71073-42J60-B1i202008-202210
GRAY,TRIM1#
main71073-42J60-B4i202210-202310
GRAY,TRIM1#
main71073-42J60-C0i202008-202111
BLACK,TRIM2#
main71073-42J60-C3i202310
BLACK,TRIM2#
main71073-42J80-C0i202112-202210
BLACK,TRIM20
main71073-42J80-C1i202112-202210
BLACK/LT.GRAY,TRIM20
main71073-42J80-C3i202210-202310
BLACK/BLUE,TRIM2#
main71073-42P00-C0i202112-202210
BLACK/ORANGE,TRIM2#
main71073-42P00-C2i202310-202410
BLACK/ORANGE,TRIM2#
main71073-42P10-A0i202112-202210
GALLANT BEIGE,TRIM4#
main71073-42P10-A2i202310
GALLANT BEIGE,TRIM4#
main71073-42P10-B0i202112-202210
GRAY,TRIM1#
main71073-42P10-B2i202310
GRAY,TRIM1#
main71073-42P10-C0i202112-202210
BLACK,TRIM2#
main71073-42P10-C2i202210-202310
BLACK,TRIM2#
main71073-42P20-C0i202112-202210
BLACK,TRIM2#
main71073-42P20-C4i202210-202310
BLACK/ORANGE,TRIM2#
main71073-42C90-C3i202008-202112
LEATHER PACKAGE&COLD AREA SPEC,WITH(STEERING HEATER)&SEAT COVER MATERIAL-ART-LEATHER(XLE, LIMITED)&FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main71073-42C90-C6i202210-202310
LEATHER PACKAGE&COLD AREA SPEC&SEAT COVER MATERIAL-ART-LEATHER(XLE+/LIMITED)&FRONTSEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main71073-42E20-A3supersedes 71073-42G50-A4i201811-202007
COLD AREA SPEC,WITH(REAR SEAT HEATER),GALLANT BEIGE,TRIM4#
main71073-42E20-A5supersedes 71073-42G50-A6i202210
COLD AREA SPEC,WITH(REAR SEAT HEATER),GALLANT BEIGE,TRIM4#
main71073-42E20-B5supersedes 71073-42G50-B6i201811-201909
COLD AREA SPEC,WITH(REAR SEAT HEATER),GRAY,TRIM1#
main71073-42E20-B7supersedes 71073-42G50-B8i202310
COLD AREA SPEC,WITH(REAR SEAT HEATER),GRAY,TRIM1#
main71073-42E20-C3supersedes 71073-42G50-C4i201811-202004
COLD AREA SPEC,WITH(REAR SEAT HEATER),BLACK,TRIM2#
main71073-42E20-C5supersedes 71073-42G50-C6i202210
COLD AREA SPEC,WITH(REAR SEAT HEATER),BLACK,TRIM2#
main71073-42G70-A4i202008-202112
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER,GALLANT BEIGE,TRIM4#
main71073-42G70-A6i202210-202310
SEAT COVER MATERIAL-LEATHER,GALLANT BEIGE,TRIM4#
main71073-42G70-B6i202112-202210
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),GRAY,TRIM1#
main71073-42G70-B8i202310
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),GRAY,TRIM1#
main71073-42G70-C4i202008-202112
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71073-42G70-C6i202210-202310
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM2#
main71073-42J10-C0i201910-202007
LEATHER PACKAGE&SEAT COVER MATERIAL-ART-LEATHER(XLE+/LIMITED)&FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main71073-42J10-C3supersedes 71073-42F10-C3i202310-202410
LEATHER PACKAGE&SEAT COVER MATERIAL-ART-LEATHER(XLE, LIMITED)&FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main71073-42J20-C0i202008-202112
LEATHER PACKAGE,BLACK,TRIM2#
main71073-42J30-A0i201901-202007
LEATHER PACKAGE,GALLANT BEIGE,TRIM4#
main71073-42J30-B1i201901-202007
LEATHER PACKAGE,GRAY,TRIM1#
main71073-42J30-C0i202008-202112
LEATHER PACKAGE,BLACK,TRIM2#
main71073-42L30-C0i202010-202112
TAIWAN SPEC&"OFFROAD PACKAGE"*(B),BLACK,TRIM2#
main71073-42L30-C2i202210-202306
TAIWAN SPEC&"OFFROAD PACKAGE"*(B)&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),BLACK/RED,TRIM2#
main71073-42P90-C3supersedes 71073-42J80-C3i202210-202310
GR-S PACKAGE&SEAT COVER MATERIAL-GR-S(SPORTY)&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE,BLACK/LT.GRAY,TRIM2#
main71073-42Q40-C0i202310
GR-S PACKAGE&SEAT COVER MATERIAL-GR-S(SPORTY)&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE,BLACK/LT.GRAY,TRIM2#
main71073-YY540i202010-202112
"STYLE PACKAGE"
main71073-YY541i202112-202203
"STYLE PACKAGE"
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0R460-C1i201910-202009
BLACK,TRIM2#
main71074-0R461-C3i202102-202203
BLACK,TRIM2#
main71074-0R470-C1i201910-202010
BLACK,TRIM2#
main71074-0R471-C3i202102-202203
BLACK,TRIM2#
main71074-42630-A4i201811-202007
GALLANT BEIGE,TRIM4#
main71074-42630-A6i202210-202310
GALLANT BEIGE,TRIM4#
main71074-42630-C5i202008-202210
BLACK,TRIM2#
main71074-42630-C8i202210-202310
BLACK,TRIM2#
main71074-42670-A4i202008-202111
GALLANT BEIGE,TRIM4#
main71074-42670-A6i202310
GALLANT BEIGE,TRIM4#
main71074-42670-B4i202008-202210
NEUTRAL WARM GRAY,TRIM1#
main71074-42670-B6i202210-202310
NEUTRAL WARM GRAY,TRIM1#
main71074-42670-C5i201910-202007
BLACK,TRIM2#
main71074-42670-C7i202310
BLACK,TRIM2#
main71074-42690-C1supersedes 71074-42B10-C1i201902-201909
BLACK,TRIM2#
main71074-42690-C3supersedes 71074-42B10-C3i202210-202310
COLD AREA SPEC,WITHOUT(REAR SEAT HEATER),BLACK,TRIM2#
main71074-42890-24i202210-202310
BLACK/ORANGE,TRIM2#
main71074-42890-25i202210-202310
ORCHID BROWN/ORANGE,TRIM4#
main71074-42890-C8i202008-202210
BLACK,TRIM2#
main71074-42890-C9i201901-202007
ORCHID BROWN,TRIM4#
main71074-42A20-C3i202112-202210
BLACK,TRIM20
main71074-42A20-C4i202112-202210
BLACK/LT.GRAY,TRIM20
main71074-42A20-C6i202210-202310
BLACK/BLUE,TRIM2#
main71074-42A50-A4i202008-202210
GALLANT BEIGE,TRIM4#
main71074-42A50-A7i202310-202410
GALLANT BEIGE,TRIM4#
main71074-42A50-B6i202008-202111
GRAY,TRIM1#
main71074-42A50-B9i202310-202410
GRAY,TRIM1#
main71074-42A50-C4i202008-202112
BLACK,TRIM2#
main71074-42A50-C7i202310-202410
BLACK,TRIM2#
main71074-42A70-A3i202008-202111
GALLANT BEIGE,TRIM4#
main71074-42A70-A5i202310
GALLANT BEIGE,TRIM4#
main71074-42A70-B5i201901-202007
GRAY,TRIM1#
main71074-42A70-B7i202310
GRAY,TRIM1#
main71074-42A70-C3i201901-202007
BLACK,TRIM2#
main71074-42A70-C5i202310
BLACK,TRIM2#
main71074-42B00-A1i202008-202210
GALLANT BEIGE,TRIM4#
main71074-42B00-C2i202008-202111
BLACK,TRIM2#
main71074-42B00-C5i202210-202310
BLACK,TRIM2#
main71074-42B10-A0i201811-202007
GALLANT BEIGE,TRIM4#
main71074-42B10-A2i202310
GALLANT BEIGE,TRIM4#
main71074-42B10-B0i201811-202007
NEUTRAL WARM GRAY,TRIM1#
main71074-42B10-B2i202310
NEUTRAL WARM GRAY,TRIM1#
main71074-42B10-C1i201811-202007
BLACK,TRIM2#
main71074-42B10-C3i202210-202310
BLACK,TRIM2#
main71074-42B60-C0i202008-202111
BLACK,TRIM2#
main71074-42B60-C1i202008-202111
ORCHID BROWN,TRIM4#
main71074-42B60-C4i202310
BLACK/ORANGE,TRIM2#
main71074-42B60-C5i202210-202310
ORCHID BROWN/ORANGE,TRIM4#
main71074-42B80-C0i202112-202210
BLACK,TRIM20
main71074-42B80-C1i202112-202210
BLACK/LT.GRAY,TRIM20
main71074-42B80-C3i202310
BLACK/BLUE,TRIM2#
main71074-42B90-A0i202008-202210
GALLANT BEIGE,TRIM4#
main71074-42B90-A2i202310
GALLANT BEIGE,TRIM4#
main71074-42B90-B1i201811-201909
GRAY,TRIM1#
main71074-42B90-B3i202210-202310
GRAY,TRIM1#
main71074-42B90-C0i201811-202007
BLACK,TRIM2#
main71074-42B90-C2i202310
BLACK,TRIM2#
main71074-42C00-A0i202008-202210
SEAT HEATER-WITH(*DRP), W(SEAT VENTILATION),GALLANT BEIGE,TRIM4#
main71074-42C00-A2i202210-202310
TAIWAN SPEC&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE&SEAT HEATER-WITH(*DRP:SEAT VENTILATION)&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),GALLANT BEIGE,TRIM4#
main71074-42C00-B1i201811-202007
SEAT HEATER-WITH(*DRP:SEAT VENTILATION),GRAY,TRIM1#
main71074-42C00-B3i202310
TAIWAN SPEC&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE&SEAT HEATER-WITH(*DRP:SEAT VENTILATION)&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),GRAY,TRIM1#
main71074-42C00-C0i201811-202007
SEAT HEATER-WITH(*DRP:SEAT VENTILATION),BLACK,TRIM2#
main71074-42C00-C2i202310
SEAT HEATER-WITH(*DRP:SEAT VENTILATION),BLACK,TRIM2#
main71074-42G40-C0i202112-202210
BLACK/ORANGE,TRIM2#
main71074-42G40-C2i202210-202310
BLACK/ORANGE,TRIM2#
main71074-42G50-A0i202112-202210
GALLANT BEIGE,TRIM4#
main71074-42G50-A2i202310
GALLANT BEIGE,TRIM4#
main71074-42G50-B0i202112-202210
GRAY,TRIM1#
main71074-42G50-B2i202210-202310
GRAY,TRIM1#
main71074-42G50-C0i202112-202210
BLACK,TRIM2#
main71074-42G50-C2i202210-202310
BLACK,TRIM2#
main71074-42G60-C0i202112-202210
BLACK,TRIM2#
main71074-42G60-C4i202310
BLACK/ORANGE,TRIM2#
main71074-42720-C4i202008-202112
LEATHER PACKAGE,BLACK,TRIM2#
main71074-42730-C3i201811-202007
LEATHER PACKAGE&SEAT COVER MATERIAL-ART-LEATHER(XLE+/LIMITED),BLACK,TRIM2#
main71074-42730-C6supersedes 71074-42670-C7i202210-202310
LEATHER PACKAGE&SEAT COVER MATERIAL-ART-LEATHER(XLE+/LIMITED)&FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main71074-42A80-A4i201901-202007
LEATHER PACKAGE,GALLANT BEIGE,TRIM4#
main71074-42A80-B6i201901-202007
LEATHER PACKAGE,GRAY,TRIM1#
main71074-42A80-C4i202008-202112
LEATHER PACKAGE,BLACK,TRIM2#
main71074-42B30-A0i202008-202112
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER,GALLANT BEIGE,TRIM4#
main71074-42B30-A2i202210-202310
SEAT COVER MATERIAL-LEATHER,GALLANT BEIGE,TRIM4#
main71074-42B30-B1i202112-202210
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),GRAY,TRIM1#
main71074-42B30-B3i202210-202310
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),GRAY,TRIM1#
main71074-42B30-C0i201811-202007
LEATHER PACKAGE,BLACK,TRIM2#
main71074-42B30-C2i202210-202310
TAIWAN SPEC&SEAT COVER MATERIAL-LEATHER&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),BLACK,TRIM2#
main71074-42B40-C0supersedes 71074-42B10-C1i202008-202112
LEATHER PACKAGE&COLD AREA SPEC,WITH(STEERING HEATER)&SEAT COVER MATERIAL-ART-LEATHER(XLE, LIMITED)&FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main71074-42B40-C3i202310
LEATHER PACKAGE&COLD AREA SPEC,WITHOUT(REAR SEAT HEATER)&SEAT COVER MATERIAL-ART-LEATHER(XLE, LIMITED)&FRONT SEAT-DRIVER SEAT:POWER SEAT,BLACK,TRIM2#
main71074-42C10-A0supersedes 71074-42B90-A0i201811-202004
COLD AREA SPEC,WITH(REAR SEAT HEATER),GALLANT BEIGE,TRIM4#
main71074-42C10-A2supersedes 71074-42B90-A2i202210
COLD AREA SPEC,WITH(REAR SEAT HEATER),GALLANT BEIGE,TRIM4#
main71074-42C10-B1supersedes 71074-42B90-B1i202008-202210
COLD AREA SPEC,WITH(REAR SEAT HEATER),GRAY,TRIM1#
main71074-42C10-B3supersedes 71074-42B90-B3i202210-202310
COLD AREA SPEC,WITH(REAR SEAT HEATER),GRAY,TRIM1#
main71074-42C10-C0supersedes 71074-42B90-C0i202008-202210
COLD AREA SPEC,WITH(REAR SEAT HEATER),BLACK,TRIM2#
main71074-42C10-C2supersedes 71074-42B90-C2i202210
COLD AREA SPEC,WITH(REAR SEAT HEATER),BLACK,TRIM2#
main71074-42D70-C0i202010-202112
TAIWAN SPEC&"OFFROAD PACKAGE"*(B),BLACK,TRIM2#
main71074-42D70-C2i202210-202306
TAIWAN SPEC&"OFFROAD PACKAGE"*(B)&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT),BLACK/RED,TRIM2#
main71074-42J30-C3i202210-202310
GR-S PACKAGE&SEAT COVER MATERIAL-GR-S(SPORTY)&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE,BLACK/LT.GRAY,TRIM2#
main71074-42J70-C0supersedes 71074-42A20-C6i202210-202310
GR-S PACKAGE&SEAT COVER MATERIAL-GR-S(SPORTY)&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE,BLACK/LT.GRAY,TRIM2#
main71074-YY480i202010-202112
"STYLE PACKAGE"
main71074-YY481i202112-202203
"STYLE PACKAGE"
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-0R100i202010-202203
main71501-42040i201811-201909
main71501-42050i201811-202007
COLD AREA SPEC,WITH(REAR SEAT HEATER)
main71501-42060i202008-202210
main71511-42240i202008-202111
main71511-42250supersedes 71511-42240i202008-202112
LEATHER PACKAGE&FRONT SEAT-DRIVER SEAT:POWER SEAT
main71511-42260i202008-202210
main71511-42270i202310
main71511-42280i201901-202007
main71501-42130supersedes 71501-42140i202112-202210
TAIWAN SPEC&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE&SEAT HEATER-WITH(*DRP), W(SEATVENTILATION)&SEAT BELT WARNING-WITH(FRONT SEAT & REAR SEAT)
main71501-42150i202310
GR-S PACKAGE&SEAT COVER MATERIAL-GR-S(SPORTY)&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-42030i201811-201909
main71502-42040i202210-202310
main71502-42050i202310
main71502-42060i202310
main71502-42140i202112-202210
main71502-42150i202112-202210
main71512-0R230i201910-202009
main71512-0R240i202010-202203
main71512-42170i201811-202004
main71512-42180i201811-201909
main71512-42190supersedes 71512-42180i202310
COLD AREA SPEC,WITH(REAR SEAT HEATER)
main71512-42220i202008-202210
main71502-42160i202310-202410
GR-S PACKAGE&SEAT COVER MATERIAL-GR-S(SPORTY)&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-0R200i202010-202203
main71551-42320i202310-202410
main71551-42340i202310
COLD AREA SPEC,WITH(REAR SEAT HEATER)
main71551-42360i202310-202410
main71551-42380i202008-202111
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-0R250i201910-202009
main71552-42200i202008-202210
main71552-42210i202008-202111
main71552-42230i201811-202007
HV EMOTIONAL PACKAGE&SEAT COVER MATERIAL-ART-LEATHER(HV-SPORT)&FRONT SEAT-DRIVER SEAT:POWER SEAT&SEAT HEATER-HI-LO(*DRP)
main71552-42240i202008-202111
71910AHEADREST ASSY, FRONT SEAT
main71910-0R220-C0×2i202010-202203
BLACK,TRIM2#
main71910-0R230-C1×2i202010-202203
BLACK,TRIM2#
main71910-42380-A1×2i202008-202210
GALLANT BEIGE,TRIM4#
main71910-42380-B1×2i201811-202007
NEUTRAL WARM GRAY,TRIM1#
main71910-42380-C1×2i202310-202410
BLACK,TRIM2#
main71910-42410-A2×2i201811-202007
GALLANT BEIGE,TRIM4#
main71910-42410-B2×2i202210-202310
GRAY,TRIM1#
main71910-42410-C3×2supersedes 71910-42380-C1i201811-201909
BLACK,TRIM2#
main71910-42440-C4×2i202008-202210
BLACK,TRIM20
main71910-42440-C5×2i202310
BLACK,TRIM2#
main71910-42440-C7×2i202008-202210
BLACK/RED,TRIM20
main71910-42440-C8×2i202112-202210
BLACK/LT.GRAY,TRIM20
main71910-42440-E4×2i202310
ORCHID BROWN,TRIM4#
main71910-42460-A0×2i202210-202310
GALLANT BEIGE,TRIM4#
main71910-42460-C0×2i202008-202210
BLACK,TRIM2#
main71910-42620-C2×2supersedes 71910-42440-C5i202310-202410
GR-S PACKAGE&SEAT COVER MATERIAL-GR-S(SPORTY)&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE,BLACK/LT.GRAY,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47050-C5×2i202210
W(LOCK),BLACK,TRIM2#
main71931-47030-C4×2i202210-202310
W/O(LOCK),BLACK,TRIM1#,2#,4#
82667DHOLDER, CONNECTOR
main82666-47630i202008-202203
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-0R270i202010-202203
main87510-12320i201811-201909
main87510-12330i202310
main87510-12390i202310
GR-S PACKAGE&SEAT COVER MATERIAL-GR-S(SPORTY)&FRONT SEAT-*DRS:*PSE(MEMORY), *PAS:*PSE
main87510-12410i202310
LEATHER PACKAGE&SEAT COVER MATERIAL-ART-LEATHER(XLE, LIMITED)&FRONT SEAT-DRIVER SEAT:POWER SEAT
main87510-42260supersedes 87510-12320i202210-202310
COLD AREA SPEC,WITH(REAR SEAT HEATER)
main87510-42270i202310
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-0R280i201910-202009
main87510-0R290i202010-202203
main87510-12320i201902-201909
main87510-12390i202112-202210
main87510-12400i202008-202112
LEATHER PACKAGE&COLD AREA SPEC,WITHOUT(REAR SEAT HEATER)&SEAT COVER MATERIAL-ART-LEATHER(XLE, LIMITED)
main87510-12410i202112-202210
LEATHER PACKAGE&COLD AREA SPEC&SEAT COVER MATERIAL-ART-LEATHER(XLE, LIMITED)&FRONTSEAT-DRIVER SEAT:POWER SEAT
main87510-12420i202112-202210
main87510-42260supersedes 87510-12410i202210-202310
COLD AREA SPEC,WITH(REAR SEAT HEATER)
main87510-42270i202310
87510MHEATER ASSY, FRONT SEATBACK, RH
main87530-0R130i202010-202203
main87530-12080i201811-202007
LEATHER PACKAGE&COLD AREA SPEC,WITHOUT(REAR SEAT HEATER)&SEAT COVER MATERIAL-ART-LEATHER(XLE+/LIMITED)
main87530-12090i202210-202310
main87530-42050supersedes 87530-12080i202210-202310
COLD AREA SPEC,WITH(REAR SEAT HEATER)
main87530-42060i202210-202310
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-0R130i201910-202009
main87530-12080i201811-201909
main87530-12090i202310
main87530-42050supersedes 87530-12080i202310
COLD AREA SPEC,WITH(REAR SEAT HEATER)
main87530-42060i202210-202310

15 parts on this diagram · 21 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
