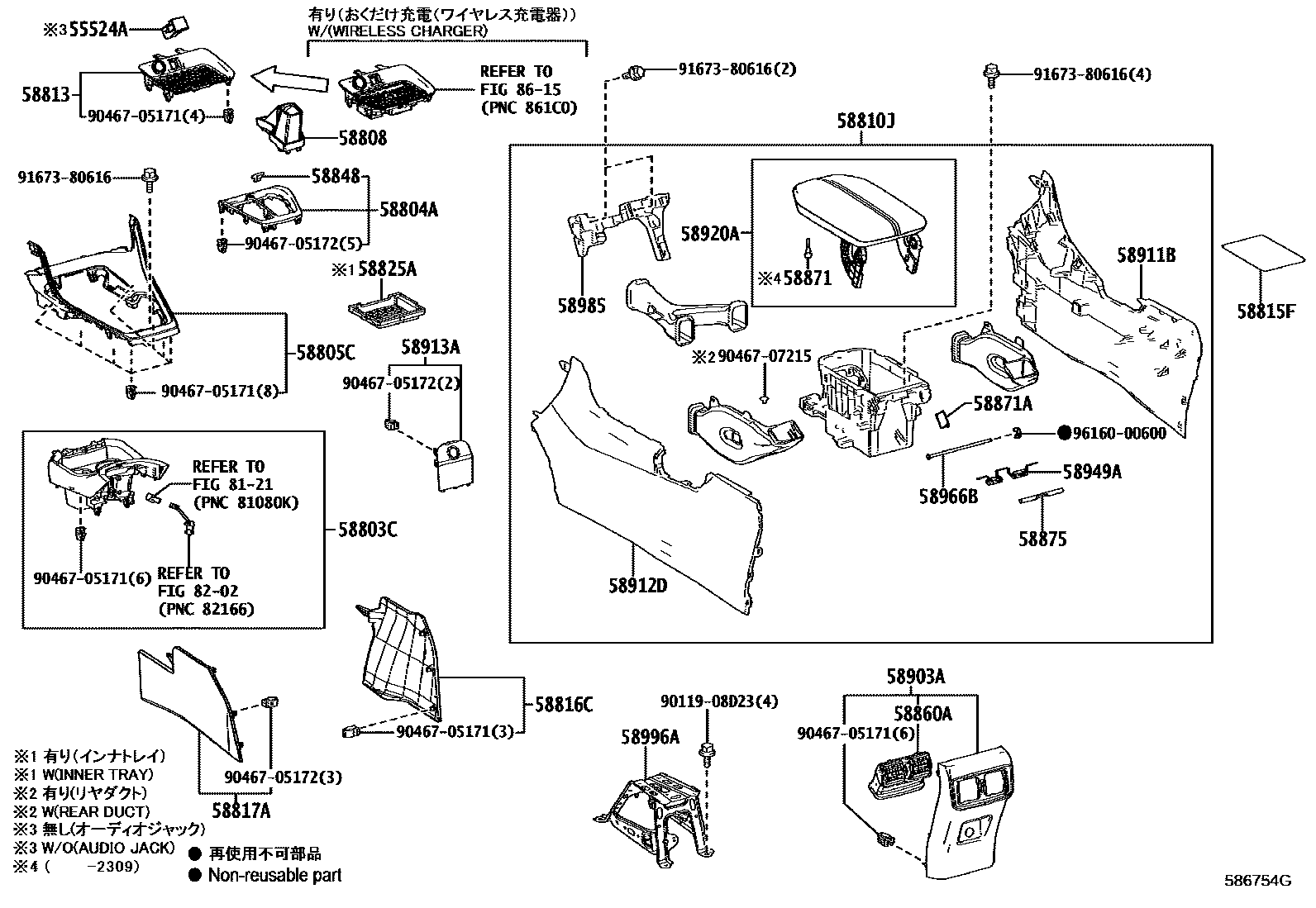

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

55524ACOVER, SWITCH BASE HOLE

main55524-12010-C0iAXAH52,AXAL52,MXAA54..LHD..G..EUR;AXAH54,AXAL54,MXAA52..LHD..CVT..(G,X)..EUR202112-202210

AUDIO-4SPEAKER(AUDIO LESS),BLACK

main55524-12010-C0iAXAH52,AXAL52,MXAA54..LHD..G..EUR;AXAH54,AXAL54,MXAA52..LHD..CVT..(G,X)..EUR202112-202210

BLACK

main55524-42010-C0iAXAH52..X..GEN;AXAH54..P..GEN;MXAA52..G..EUR202210

BLACK

main55524-42010-C0iAXAH52..X..GEN;AXAH54..P..GEN202310

AUDIO JACK-WITHOUT,BLACK

main55524-42010-C0iAXAH52..P..GEN;MXAA5#..6F..GEN202411

AUDIO JACK-FRONT:USB1,REAR:USB2,BLACK

main55524-42010-C0iAXAH52..P..GEN;MXAA5#..6F..GEN202411

AUDIO JACK-FRONT:USB1,BLACK

main55524-42010-C0iAXAH52..P..GEN;MXAA5#..6F..GEN202411

AUDIO JACK-FRONT:USB3, REAR:USB2,BLACK

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-42030-C3iAXAA54..LHD..X..GEN;MXAA54..JPP..LHD..CVT..X;AXAA52,AXAH5#,AXAL5#..X..(ARL,GCC,GEN);AXAA54,MXAA52..(ATM,CVT)..X..(ARL,GCC)201811-202203

BLACK,TRIM2#

main58803-42030-C3iAXAA54,AXAH5#,AXAL5#,MXAA5#..(ATM,CVT)..(M,X)..(EUR,RUS)201811-202111

BLACK,TRIM2#,4#

main58803-42030-C3iAXAA5#,AXAH5#,AXAL5#,MXAA5#..(ATM,CVT)..X..(ARL,GCC,GEN,SA)201811-202111

BLACK,TRIM1#,2#,4#

main58803-42040-C5iMXAA52..6F..SA;MXAA5#..LHD..6F..X..GEN201901-202310

BLACK,TRIM1#,2#,4#

main58803-42040-C5iMXAA52..6F..SA;MXAA5#..LHD..6F..X..GEN201901-202310

BLACK,TRIM2#,4#

main58803-42040-C5iMXAA52..6F..SA201811-202210

BLACK,TRIM2#

main58803-42050-C3iAXAH52..RHD..G..GEN201811-202007

BLACK,TRIM10,20

sub58803-42100

main58803-42050-C3iAXAH5#,AXAL5#..M..EUR201811-202111

HV EMOTIONAL PACKAGE,BLACK,TRIM2#

sub58803-42100

main58803-42050-C3iAXAH5#,AXAL5#..M..EUR201811-202111

BLACK,TRIM1#,2#

sub58803-42100

main58803-42050-C3iAXAH5#,AXAL5#,MXAA5#..CVT..G..EUR202008-202111

HV BLACK PACKAGE,BLACK,TRIM2#

sub58803-42100

main58803-42050-C3iAXAA54,MXAA5#..G..RUS201910-202203

BLACK,TRIM2#

sub58803-42100

main58803-42050-C4iAXAH54..G..RUS201811-202111

DK.BROWN,TRIM4#

sub58803-42100

main58803-42050-C4iAXAH5#,AXAL5#,MXAA5#..CVT..G..EUR201811-202007

DK.BROWN,TRIM10,20,4#

sub58803-42100

main58803-42050-C4iAXAA5#,AXAH5#,AXAL5#,MXAA5#..G..(ARL,GCC,GEN,SA)202005-202111

DK.BROWN,TRIM1#,2#,4#

sub58803-42100

main58803-42050-C5iAXAA54,MXAA54..V201811-202111

ORANGE,TRIM2#,4#

sub58803-42100

main58803-42050-C5iMXAA54..LHD..V..GEN202008-202111

ORANGE,TRIM20,4#

sub58803-42100

main58803-42050-C6iMXAA54..LHD..V..GEN202008-202111

BLACK/SENSUAL RED,TRIM20

sub58803-42100

main58803-42060-C2iMXAA54..6F..G201811-202210

BLACK,TRIM1#,2#

main58803-42060-C2iMXAA5#..6F..G..(GEN,SA)201901-201909

BLACK,TRIM10,20

main58803-42060-C3iMXAA5#..6F..G..(GEN,SA)201901-201909

DK.BROWN,TRIM10,20,4#

main58803-42060-C3iMXAA5#..6F..G..EUR201811-202210

DK.BROWN,TRIM4#

main58803-42090-C0iAXAA5#,AXAH5#,MXAA5#..(ATM,CVT)..X..(GCC,GEN)202112-202310

BLACK,TRIM1#,2#,4#

main58803-42090-C0iAXAA5#,AXAH5#,MXAA5#..(ATM,CVT)..M..(GCC,GEN)202112-202410

BLACK,TRIM2#

main58803-42090-C0iAXAA5#,AXAH5#,MXAA5#..(ATM,CVT)..M..(GCC,GEN)202112-202310

BLACK,TRIM2#,4#

main58803-42100-C0iAXAH5#,AXAL5#..G..EUR202112-202410

BLACK,TRIM2#

main58803-42100-C0iAXAH5#,AXAL5#,MXAA5#..CVT..G..EUR202112-202410

BLACK,TRIM1#,2#

main58803-42100-C1iMXAA54..LHD..V..GEN202112-202310

BLACK/SENSUAL RED,TRIM20

main58803-42100-C2iAXAA5#,AXAH5#,MXAA5#..G..(ARL,GCC,GEN,SA)202112-202410

BLACK/DK.BROWN,TRIM4#

main58803-42100-C2iAXAH5#,AXAL5#..G..EUR202112-202310

BLACK/DK.BROWN,TRIM1#,2#,4#

main58803-42100-C2iAXAA54,AXAH54,MXAA52..G..SA202310

BLACK/DK.BROWN,TRIM2#,4#

main58803-42100-C3iMXAA54..RHD..V;AXAA54,AXAH54..V..(ARL,GCC,GEN,SA)202112-202310

BLACK/ORANGE,TRIM2#,4#

main58803-42100-C3iMXAA54..RHD..V;AXAA54..LHD..V..GEN;AXAA54,AXAH54..V..(ARL,GCC,SA)202112-202310

BLACK/ORANGE,TRIM20,4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0R230iAXAA54,MXAA5#..(ATM,CVT)..RUS201910-202203

main58804-42460iAXAA52..GCC;AXAA52..LHD..(G,M)..GEN;MXAA54..JPP..LHD..CVT..(M,X);MXAA54..LHD..CVT..(G,V)..(EUR,GEN);AXAA54,AXAH5#,AXAL5#,MXAA52..JPP..LHD..(ATM,CVT)201811-202410

main58804-42470iMXAA5#..6F..RUS201811-202310

main58804-42480iMXAA52..RHD..X..(ARL,GEN);MXAA52..RHD..(G,M)..(ARL,GEN,SA);AXAA54,AXAH5#,AXAL5#,MXAA54..RHD201811-202410

main58804-42490iMXAA52..6F..G..SA201811-202210

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-42080iAXAH54..RUS201811-202410

main58805-42090iMXAA5#..6F..GEN201811-202310

main58805-42100iAXAH5#..X..ARL;MXAA5#..RHD..CVT;AXAH54..RHD..G..GEN;AXAA54..(M,V,X)..ARL;AXAL5#..RHD..(G,M,P,V)..EUR;AXAA54..RHD..(G,M,X)..(GEN,SA);AXAH5#..RHD..(G,M,P,V)..(ARL,EUR201811-202410

main58805-42110iMXAA5#..RHD..6F..(ARL,GEN)201811-202210

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-42110-C0iAXAH54..LHD..G;AXAH54..M..GCC;AXAH52,AXAL5#..LHD..G..EUR;AXAA5#,AXAH52,MXAA5#..LHD..(ATM,CVT)..(G,M)..(GCC,GEN)202210-202310

BLACK,TRIM20

main58808-42110-C0iAXAH54..RUS201811-202310

BLACK,TRIM1#,2#,4#

main58808-42110-C0iAXAA5#,AXAH54,MXAA54..LHD..(ATM,CVT)..(V,X)..(GCC,GEN)201811-202310

BLACK,TRIM2#,4#

main58808-42110-C0iAXAL5#..LHD..(M,X)202005-202410

BLACK,TRIM2#

main58808-42110-C4iAXAH54,AXAL54..LHD..P..EUR202210-202310

BLACK/LT.GRAY,TRIM20

main58808-42120-C0iMXAA54..6F..G;MXAA5#..LHD..6F..M..GEN201811-202310

BLACK,TRIM1#,2#,4#

main58808-42120-C0iMXAA54..6F..G;MXAA5#..LHD..6F..M..GEN202008-202210

BLACK,TRIM2#

main58808-42120-C0iMXAA5#..6F..(M,X)..EUR201901-202310

BLACK,TRIM2#,4#

main58808-42130-C0iAXAA54..G..ARL;AXAL5#..(G,M)..ARL;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN202005-202410

BLACK,TRIM2#

main58808-42130-C0iAXAH5#,AXAL5#..RHD..X..EUR201811-202310

BLACK,TRIM2#,4#

main58808-42130-C0iAXAH5#,AXAL5#..RHD..X..EUR201811-202410

BLACK,TRIM1#,2#,4#

main58808-42130-C0iAXAH5#..RHD..(M,V)..EUR202210-202410

BLACK,TRIM20

main58808-42130-C4iAXAL54..RHD..P202210-202410

BLACK/LT.GRAY,TRIM20

58810JBOX ASSY, CONSOLE

main58810-42020-C0iAXAA5#,AXAH5#,MXAA5#..LHD..(ATM,CVT)..M..(GCC,GEN)201811-202310

BLACK,TRIM1#,2#,4#

main58810-42020-C0iAXAA5#,AXAH5#,MXAA5#..LHD..(ATM,CVT)..X..(GCC,GEN)201811-202310

BLACK,TRIM2#,4#

main58810-42030-C1iAXAH5#..P..GEN;MXAA54..JPP..RUS;AXAL54..LHD..(M,V,X);AXAH54..LHD..(M,V)..EUR;AXAH52,AXAL52..LHD..(M,P,X)..EUR201811-202310

BLACK,TRIM2#,4#

main58810-42030-C1iAXAH5#..P..GEN;MXAA54..JPP..RUS;AXAH54,AXAL54..LHD..(M,V,X)..EUR;AXAH52,AXAL52..LHD..(M,P,X)..EUR201811-202410

BLACK,TRIM2#

main58810-42030-C1iAXAA54,MXAA54..LHD..V202210-202310

BLACK,TRIM20

main58810-42030-C1iAXAA54,MXAA54..LHD..V201811-202310

BLACK,TRIM1#,2#,4#

main58810-42030-C4iAXAH54,AXAL54..LHD..P..EUR202210-202310

BLACK/LT.GRAY,TRIM20

main58810-42040-C1iMXAA5#..LHD..6F..M..EUR201811-202310

BLACK,TRIM1#,2#,4#

main58810-42040-C1iMXAA5#..LHD..6F..M..EUR201811-202210

BLACK,TRIM2#

main58810-42040-C1iMXAA5#..6F..M..GEN201901-202310

BLACK,TRIM2#,4#

main58810-42050-C0iAXAH5#..RHD..M..GEN201901-202310

BLACK,TRIM2#,4#

main58810-42050-C0iAXAH5#..RHD..M..GEN201901-202310

BLACK,TRIM1#,2#,4#

main58810-42050-C0iAXAH5#,MXAA52..X..ARL202310

BLACK,TRIM2#

main58810-42060-C1iAXAH54..V..ARL;MXAA54..RHD..V;AXAA54..(G,V)..(ARL,SA);AXAH54,MXAA52..(G,V)..SA201811-202410

BLACK,TRIM2#

main58810-42060-C1iAXAH52..RHD..G..GEN201811-202410

BLACK,TRIM1#,2#,4#

main58810-42060-C1iAXAA54,MXAA54..RHD..V201901-202310

BLACK,TRIM2#,4#

main58810-42060-C1iAXAA54,AXAH54,MXAA54..RHD..V..(ARL,GEN,SA)202210-202410

BLACK,TRIM20

main58810-42060-C4iAXAH54..RHD..P..EUR202210-202410

BLACK/LT.GRAY,TRIM20

main58810-42070-C1iMXAA52..6F..G..SA201901-202111

BLACK,TRIM1#,2#,4#

main58810-42070-C1iMXAA52..6F..SA201901-202210

BLACK,TRIM2#,4#

main58810-42070-C1iMXAA52..RHD..6F..EUR201811-202007

BLACK,TRIM2#

58813BOX, CONSOLE, UPPER

main58813-42040-C3iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..G..EUR201811-202007

HV EMOTIONAL PACKAGE&WIRELESS CHARGER-WITH,BLACK,TRIM2#

sub58813-42041

main58813-42040-C3iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..G..EUR201811-202007

XLE PACKAGE&WIRELESS CHARGER-WITH,BLACK,TRIM2#

sub58813-42041

main58813-42040-C3iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..G..EUR201811-202111

BLACK,TRIM1#,2#

sub58813-42041

main58813-42040-C3iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..G..EUR201811-202111

BLACK,TRIM2#

sub58813-42041

main58813-42040-C3iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..G..EUR201811-202007

BLACK,TRIM10,20

sub58813-42041

main58813-42040-C3iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..M..EUR201811-202111

WIRELESS CHARGER-WITH,BLACK,TRIM1#,2#

sub58813-42041

main58813-42040-C3iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..M..EUR201811-202111

WIRELESS CHARGER-WITH,BLACK,TRIM2#

sub58813-42041

main58813-42040-C3iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..M..EUR201811-202007

WIRELESS CHARGER-WITH,BLACK,TRIM10,20

sub58813-42041

main58813-42040-C4iMXAA54..LHD..V..GEN202008-202111

WIRELESS CHARGER-WITH,BLACK/SENSUAL RED,TRIM20

sub58813-42041

main58813-42040-C4iMXAA54..LHD..V..GEN202008-202111

BLACK/SENSUAL RED,TRIM20

sub58813-42041

main58813-42040-E7iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..G..EUR201811-202111

WIRELESS CHARGER-WITH,DK.BROWN,TRIM4#

sub58813-42041

main58813-42040-E7iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..G..EUR202008-202111

WIRELESS CHARGER-WITH,DK.BROWN,TRIM1#,2#,4#

sub58813-42041

main58813-42040-E7iMXAA54..G..GEN;AXAA5#,AXAH5#,MXAA52..LHD..G..(GCC,GEN)202008-202111

DK.BROWN,TRIM1#,2#,4#

sub58813-42041

main58813-42040-E7iMXAA54..G..GEN;AXAA5#,AXAH5#,MXAA52..LHD..G..(GCC,GEN)201811-202111

DK.BROWN,TRIM4#

sub58813-42041

main58813-42040-E7iAXAA5#,AXAH5#,MXAA5#..LHD..(ATM,CVT)..G..(GCC,GEN)201811-202007

DK.BROWN,TRIM10,20,4#

sub58813-42041

main58813-42040-E7iAXAA5#,AXAH5#,MXAA5#..LHD..(ATM,CVT)..G..(GCC,GEN)201811-202007

WIRELESS CHARGER-WITH,DK.BROWN,TRIM10,20,4#

sub58813-42041

main58813-42040-E8iAXAA54..LHD..V;MXAA54..V..GCC201811-202111

ORANGE,TRIM2#,4#

sub58813-42041

main58813-42040-E8iAXAA54..LHD..V201811-202111

WIRELESS CHARGER-WITH,ORANGE,TRIM2#,4#

sub58813-42041

main58813-42040-E8iAXAA54..LHD..V202008-202111

WIRELESS CHARGER-WITH,ORANGE,TRIM20,4#

sub58813-42041

main58813-42040-E8iAXAA54..LHD..V202008-202111

ORANGE,TRIM20,4#

sub58813-42041

main58813-42041-C3iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..G..EUR202112-202210

WIRELESS CHARGER-WITH,BLACK,TRIM1#,2#

main58813-42041-C3iAXAH5#..P..GEN;AXAH5#,AXAL5#,MXAA5#..LHD..CVT..(M,P,V)..EUR202112-202210

WIRELESS CHARGER-WITH,BLACK,TRIM2#

main58813-42041-C3iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..G..EUR202112-202210

BLACK,TRIM1#,2#

main58813-42041-C3iAXAH5#,AXAL5#,MXAA5#..LHD..CVT..G..EUR202112-202210

BLACK,TRIM2#

main58813-42041-C4iMXAA54..LHD..V..GEN202112-202306

BLACK/SENSUAL RED,TRIM20

main58813-42041-C4iMXAA54..LHD..V..GEN202112-202306

WIRELESS CHARGER-WITH,BLACK/SENSUAL RED,TRIM20

main58813-42041-E7iAXAA5#,AXAH5#,MXAA5#..LHD..G..(GCC,GEN)202112-202210

DK.BROWN,TRIM4#

main58813-42041-E7iAXAH5#,AXAL5#..LHD..G..EUR202112-202310

WIRELESS CHARGER-WITH,DK.BROWN,TRIM1#,2#,4#

main58813-42041-E7iAXAH5#,AXAL5#..LHD..G..EUR202112-202310

WIRELESS CHARGER-WITH,DK.BROWN,TRIM4#

main58813-42041-E7iAXAH5#,AXAL5#..LHD..G..EUR202112-202310

DK.BROWN,TRIM1#,2#,4#

main58813-42041-E8iMXAA54..LHD..V202112-202310

ORANGE,TRIM2#,4#

main58813-42041-E8iMXAA54..LHD..V202112-202310

WIRELESS CHARGER-WITH,ORANGE,TRIM2#,4#

main58813-42041-E8iAXAA54..LHD..V202112-202306

ORANGE,TRIM20,4#

main58813-42041-E8iMXAA54..LHD..V..GEN202112-202306

WIRELESS CHARGER-WITH,ORANGE,TRIM20,4#

main58813-42050-C2iMXAA5#..6F..G..EUR201811-202007

XLE PACKAGE&WIRELESS CHARGER-WITH,BLACK,TRIM2#

sub58813-42051

main58813-42050-C2iMXAA5#..6F..G..EUR201811-202109

BLACK,TRIM1#,2#

sub58813-42051

main58813-42050-C2iMXAA5#..6F..M..EUR201811-202109

WIRELESS CHARGER-WITH,BLACK,TRIM2#

sub58813-42051

main58813-42050-C2iMXAA5#..6F..M..EUR201811-202109

WIRELESS CHARGER-WITH,BLACK,TRIM1#,2#

sub58813-42051

main58813-42050-C2iMXAA5#..6F..M..EUR201811-202109

BLACK,TRIM2#

sub58813-42051

main58813-42050-C2iMXAA5#..6F..G..(GEN,SA)201901-201909

BLACK,TRIM10,20

sub58813-42051

main58813-42050-E3iMXAA54..6F..G201811-202109

DK.BROWN,TRIM4#

sub58813-42051

main58813-42050-E3iMXAA54..6F..G201811-202109

WIRELESS CHARGER-WITH,DK.BROWN,TRIM4#

sub58813-42051

main58813-42050-E3iMXAA5#..6F..G..(GEN,SA)201901-201909

DK.BROWN,TRIM10,20,4#

sub58813-42051

main58813-42051-C2iMXAA5#..6F..M..EUR202110-202210

WIRELESS CHARGER-WITH,BLACK,TRIM2#

main58813-42051-C2iMXAA5#..6F..M..EUR202110-202210

BLACK,TRIM1#,2#

main58813-42051-C2iMXAA5#..6F..M..EUR202110-202210

BLACK,TRIM2#

main58813-42051-C2iMXAA54..6F..G202110-202210

WIRELESS CHARGER-WITH,BLACK,TRIM1#,2#

main58813-42051-E3iMXAA54..6F..G202110-202210

DK.BROWN,TRIM4#

main58813-42051-E3iMXAA54..6F..G202110-202210

WIRELESS CHARGER-WITH,DK.BROWN,TRIM4#

main58813-42060-C2iMXAA52..LHD..CVT..(M,X)..GEN;AXAA5#,AXAH5#,MXAA54..LHD..(ATM,CVT)..M..(GCC,GEN)201811-202007

WIRELESS CHARGER-WITH,BLACK,TRIM2#

main58813-42060-C2iAXAH54..M..RUS201811-202410

BLACK,TRIM2#

main58813-42060-C2iMXAA52..LHD..CVT..(M,X)..GEN;AXAA5#,AXAH5#,MXAA54..LHD..(ATM,CVT)..M..(GCC,GEN)201811-202310

BLACK,TRIM1#,2#,4#

main58813-42060-C2iMXAA52..LHD..CVT..(M,X)..GEN;AXAA5#,AXAH5#,MXAA54..LHD..(ATM,CVT)..M..(GCC,GEN)201811-202310

BLACK,TRIM2#,4#

main58813-42060-C2iMXAA52..LHD..CVT..(M,X)..GEN;AXAA5#,AXAH5#,MXAA54..LHD..(ATM,CVT)..M..(GCC,GEN)201811-202310

WIRELESS CHARGER-WITH,BLACK,TRIM1#,2#,4#

main58813-42060-C2iMXAA52..LHD..CVT..(M,X)..GEN;AXAA5#,AXAH5#,MXAA54..LHD..(ATM,CVT)..M..(GCC,GEN)201811-202007

WIRELESS CHARGER-WITH,BLACK,TRIM2#,4#

main58813-42070-C2iMXAA5#..LHD..6F..M..GEN201811-202210

BLACK,TRIM2#

main58813-42070-C2iMXAA5#..LHD..6F..M..GEN201901-202310

BLACK,TRIM1#,2#,4#

main58813-42070-C2iMXAA5#..LHD..6F..M..GEN201901-202210

BLACK,TRIM2#,4#

main58813-42070-C2iMXAA5#..LHD..6F..M..GEN201901-202310

WIRELESS CHARGER-WITH,BLACK,TRIM1#,2#,4#

main58813-42070-C2iMXAA5#..6F..M..GEN;MXAA52..RHD..6F..X..(GEN,SA)201901-202007

WIRELESS CHARGER-WITH,BLACK,TRIM2#,4#

main58813-42070-C2iMXAA52..6F..X..EUR201811-202007

WIRELESS CHARGER-WITH,BLACK,TRIM2#

main58813-42080-C1iAXAH5#,AXAL5#,MXAA52..RHD..CVT..M..EUR201811-202007

HV EMOTIONAL PACKAGE&WIRELESS CHARGER-WITH,BLACK,TRIM2#

sub58813-42081

main58813-42080-C1iAXAH5#,AXAL5#,MXAA52..RHD..CVT..M..EUR201811-202111

BLACK,TRIM2#

sub58813-42081

main58813-42080-C1iAXAH5#,AXAL5#,MXAA52..RHD..CVT..M..EUR201811-202111

BLACK,TRIM1#,2#

sub58813-42081

main58813-42080-C1iAXAH5#,AXAL5#,MXAA52..RHD..CVT..M..EUR201811-202111

WIRELESS CHARGER-WITH,BLACK,TRIM2#

sub58813-42081

main58813-42080-C1iAXAH5#,AXAL5#,MXAA52..RHD..M..EUR201811-202111

WIRELESS CHARGER-WITH,BLACK,TRIM1#,2#

sub58813-42081

main58813-42080-C1iAXAH5#,AXAL5#,MXAA52..RHD..CVT..M..EUR201811-202007

XLE PACKAGE&WIRELESS CHARGER-WITH,BLACK,TRIM2#

sub58813-42081

main58813-42080-C1iAXAH52..RHD..G..GEN201901-202007

BLACK,TRIM10,20

sub58813-42081

main58813-42080-C1iAXAH52..G..ARL;AXAA5#,AXAH54,MXAA52..RHD..(ATM,CVT)..G..(ARL,GEN,SA)201901-202007

WIRELESS CHARGER-WITH,BLACK,TRIM10,20

sub58813-42081

main58813-42080-E3iAXAA5#,AXAH5#,AXAL5#,MXAA52..RHD..G..(ARL,GEN,SA)201811-202111

DK.BROWN,TRIM4#

sub58813-42081

main58813-42080-E3iAXAH5#,AXAL5#,MXAA52..RHD..G..EUR201811-202111

WIRELESS CHARGER-WITH,DK.BROWN,TRIM4#

sub58813-42081

main58813-42080-E3iAXAL5#..G..ARL202005-202111

DK.BROWN,TRIM1#,2#,4#

sub58813-42081

main58813-42080-E3iAXAL5#..G..ARL202005-202111

WIRELESS CHARGER-WITH,DK.BROWN,TRIM1#,2#,4#

sub58813-42081

main58813-42080-E3iAXAH52..G..ARL;AXAA5#,AXAH54,MXAA52..RHD..(ATM,CVT)..G..(ARL,GEN,SA)201901-202007

WIRELESS CHARGER-WITH,DK.BROWN,TRIM10,20,4#

sub58813-42081

main58813-42080-E3iAXAH52..G..ARL;AXAA5#,AXAH54,MXAA52..RHD..(ATM,CVT)..G..(ARL,GEN,SA)201901-202007

DK.BROWN,TRIM10,20,4#

sub58813-42081

main58813-42080-E4iAXAA54,MXAA54..RHD..V201901-202111

ORANGE,TRIM2#,4#

sub58813-42081

main58813-42080-E4iAXAA54,MXAA54..RHD..V201901-202111

WIRELESS CHARGER-WITH,ORANGE,TRIM2#,4#

sub58813-42081

main58813-42081-C1iAXAH52..RHD..P;AXAH54..P..ARL;AXAL5#..RHD..(M,P,V)202112-202410

BLACK,TRIM2#

main58813-42081-C1iAXAH5#,AXAL5#,MXAA52..RHD..G..EUR202112-202410

BLACK,TRIM1#,2#

main58813-42081-C1iAXAH5#,AXAL5#,MXAA52..RHD..G..EUR202112-202310

WIRELESS CHARGER-WITH,BLACK,TRIM1#,2#

main58813-42081-C1iAXAH5#,AXAL5#,MXAA52..RHD..G..EUR202112-202310

WIRELESS CHARGER-WITH,BLACK,TRIM2#

main58813-42081-E3iAXAA54,AXAH5#,MXAA52..RHD..G..(ARL,GEN)202112-202310

DK.BROWN,TRIM1#,2#,4#

main58813-42081-E3iAXAA54,AXAH5#,MXAA52..RHD..G..(ARL,GEN)202112-202410

DK.BROWN,TRIM4#

main58813-42081-E3iAXAH52,AXAL5#..RHD..G..EUR202112-202310

WIRELESS CHARGER-WITH,DK.BROWN,TRIM1#,2#,4#

main58813-42081-E3iAXAH52,AXAL5#..RHD..G..EUR202112-202310

WIRELESS CHARGER-WITH,DK.BROWN,TRIM4#

main58813-42081-E4iAXAA54,AXAH54,MXAA54..RHD..V..(ARL,GEN)202112-202310

WIRELESS CHARGER-WITH,ORANGE,TRIM2#,4#

main58813-42081-E4iAXAA54,AXAH54,MXAA54..RHD..V..(ARL,GEN)202112-202310

ORANGE,TRIM2#,4#

main58813-42090-C1iAXAA54,MXAA5#..RHD..M..GEN201901-202310

BLACK,TRIM1#,2#,4#

main58813-42090-C1iAXAA54,MXAA5#..RHD..M..GEN201901-202210

BLACK,TRIM2#,4#

main58813-42090-C1iAXAA54,MXAA5#..RHD..M..GEN201811-202111

BLACK,TRIM2#

main58813-42090-C1iAXAA54,MXAA5#..RHD..M..GEN201811-202007

WIRELESS CHARGER-WITH,BLACK,TRIM2#

main58813-42090-C1iAXAA54,MXAA5#..RHD..M..GEN201901-202310

WIRELESS CHARGER-WITH,BLACK,TRIM1#,2#,4#

main58813-42090-C1iAXAA54,AXAH5#,MXAA52..(ATM,CVT)..X..ARL201901-202007

WIRELESS CHARGER-WITH,BLACK,TRIM2#,4#

58815FCARPET, CONSOLE BOX

main58815-0R100iAXAA54,MXAA5#..RUS201910-202203

main58815-42040iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)201811-202410

58816CINSERT, CONSOLE BOX, FRONT NO.1

main58816-42020-C0iAXAH54..LHD..G;AXAH54..M..GCC;AXAH52,AXAL5#..LHD..G..EUR;AXAA5#,AXAH52,MXAA5#..LHD..(G,M)..(GCC,GEN)201811-202310

BLACK,TRIM1#,2#,4#

main58816-42020-C0iMXAA52..LHD..6F..X..GEN;AXAA5#,AXAH54,MXAA54..LHD..(V,X)..(GCC,GEN)201811-202310

BLACK,TRIM2#,4#

main58816-42020-C0iAXAL5#..LHD..(M,X)202005-202410

BLACK,TRIM2#

main58816-42030-C0iAXAL5#..X..ARL;AXAA54..RHD..V..GEN;MXAA52..RHD..6F..(ARL,GEN)201811-202410

BLACK,TRIM1#,2#,4#

main58816-42030-C0iAXAH5#..P..ARL;AXAH5#,AXAL5#..RHD..(M,P,V)..EUR201811-202310

BLACK,TRIM2#,4#

main58816-42030-C0iAXAH54..RHD..G;AXAH54..M..ARL;AXAH52,AXAL5#..RHD..G..EUR;AXAA54,AXAH52,MXAA5#..RHD..(G,M)..(ARL,GEN,SA)202005-202410

BLACK,TRIM2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-42020-C0iMXAA52..G..RUS;MXAA54..M..EUR;AXAA54,MXAA54..RUS;AXAH5#,AXAL5#,MXAA52..LHD..(M,X)..(EUR,RUS)201811-202111

BLACK,TRIM1#,2#,4#

sub58817-42021

main58817-42020-C0iMXAA52..G..RUS;MXAA54..M..EUR;AXAA54,MXAA54..RUS;AXAH5#,AXAL5#,MXAA52..LHD..(M,X)..(EUR,RUS)202005-202111

BLACK,TRIM2#

sub58817-42021

main58817-42020-C0iAXAA5#,AXAH54,MXAA5#..LHD..(V,X)..(GCC,GEN)201811-202111

BLACK,TRIM2#,4#

sub58817-42021

main58817-42021-C0iAXAA5#,AXAH5#,MXAA5#..LHD..(V,X)..(GCC,GEN)202112-202310

BLACK,TRIM2#,4#

main58817-42021-C0iAXAH52..P..GEN;MXAA54..JPP..RUS;AXAH54..LHD..(M,P,V)..(EUR,GEN);AXAH52,AXAL5#..LHD..(M,P,V,X)..EUR202112-202410

BLACK,TRIM2#

main58817-42021-C0iAXAH52..P..GEN;MXAA54..JPP..RUS;AXAH54..LHD..(M,P,V)..(EUR,GEN);AXAH52,AXAL5#..LHD..(M,P,V,X)..EUR202112-202310

BLACK,TRIM1#,2#,4#

main58817-42030-C0iMXAA52..X..SA;MXAA54..RHD..(V,X);AXAA54..RHD..X..GEN;MXAA52..RHD..CVT..X..(ARL,GEN);AXAA54,AXAH5#..(V,X)..(ARL,SA)202005-202410

BLACK,TRIM2#

main58817-42030-C0iAXAH5#..P..ARL;AXAH5#,AXAL5#,MXAA52..RHD..(M,P,V)..EUR201811-202310

BLACK,TRIM2#,4#

main58817-42030-C0iAXAH5#..P..ARL;AXAH5#,AXAL5#,MXAA52..RHD..(M,P,V)..EUR201811-202410

BLACK,TRIM1#,2#,4#

58825APOCKET, CONSOLE BOX

main58825-42030iAXAA54..G..ARL;MXAA54..G..GCC;AXAA52,AXAL5#..RHD..G..(ARL,GEN)201811-202410

58848COVER, SHIFT LEVER HOLE

main58848-42010iAXAA54,MXAA5#..(ATM,CVT)..RUS201811-202410

main58848-42020iMXAA52..G..EUR;MXAA52..CVT..X..SA201811-202410

58860AREGISTER ASSY, CONSOLE BOX

main58860-48050-C2iAXAA54..G..ARL;MXAA54..G..GCC;MXAA54..RHD..6F;AXAL5#..(G,M)..ARL;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN201811-202410

BLACK,TRIM1#,2#,4#

main58860-48050-C2iAXAA54..G..ARL;MXAA54..G..GCC;MXAA54..RHD..6F;AXAL5#..(G,M)..ARL;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN201811-202310

BLACK,TRIM2#,4#

main58860-48050-C2iMXAA54..V..GCC;AXAA54..RHD..V..GEN;MXAA52..RHD..6F..(ARL,GEN);AXAA52,AXAL5#..X..(ARL,GEN)202005-202410

BLACK,TRIM2#

58871CUSHION, CONSOLE BOX

main90541-03078iAXAA54..X..ARL;MXAA52..M..GEN;MXAA52..6F..M..EUR;MXAA54..JPP..LHD..6F;MXAA52..JPP..LHD..6F..X;AXAH5#..X..(ARL,GCC,GEN);AXAH54..LHD..M..(GCC,GEN);MXAA52..CVT..X..(AR201811-202309

58871ACUSHION, CONSOLE BOX, NO.2

main58871-42040iAXAA54,MXAA5#..RUS201811-202410

58875SPACER, CONSOLE BOX

main58875-42010iAXAA54,MXAA5#..RUS201811-202410

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-42050-C0iAXAA54,AXAH5#,MXAA5#..(G,M)..GEN201811-202310

BLACK,TRIM2#,4#

main58903-42050-C0iAXAA54,AXAH5#,MXAA5#..(G,M)..GEN201811-202310

BLACK,TRIM1#,2#,4#

main58903-42050-C0iAXAA54,AXAH5#,MXAA5#..(G,M)..GEN202112-202310

BLACK,TRIM2#

main58903-42050-C0iAXAH5#..P..GEN202008-202310

AUDIO JACK-WITHOUT,BLACK,TRIM2#

main58903-42050-C0iAXAH5#..P..GEN201811-202310

AUDIO JACK-WITHOUT,BLACK,TRIM1#,2#,4#

main58903-42050-C0iAXAH54,AXAL54,MXAA52..LHD..CVT..X..EUR202008-202210

AUDIO-4SPEAKER(AUDIO LESS)&AUDIO JACK-WITHOUT,BLACK,TRIM2#

main58903-42050-C0iAXAH54,AXAL54,MXAA52..LHD..CVT..X..EUR201811-202210

AUDIO-4SPEAKER(AUDIO LESS)&AUDIO JACK-WITHOUT,BLACK,TRIM1#,2#,4#

main58903-42050-C0iMXAA54..G..GCC201811-202210

AUDIO JACK-WITHOUT,BLACK,TRIM2#,4#

main58903-42050-C0iAXAL5#..G..EUR;AXAA5#..(G,M)..GCC;AXAH54,MXAA52..LHD..CVT..X..EUR;AXAH5#,MXAA5#..(G,M)..(EUR,GCC)201811-202007

AUDIO-4SPEAKER(AUDIO LESS)&AUDIO JACK-WITHOUT,BLACK,TRIM2#,4#

main58903-42060-C0iMXAA5#..(M,X)..EUR202005-202410

BLACK,TRIM2#

main58903-42060-C0iMXAA54..G..EUR201811-202410

BLACK,TRIM1#,2#,4#

main58903-42060-C0iAXAA54..V..GCC;AXAH54..V..ARL;AXAH54,MXAA52..(G,V)..SA;AXAA54,MXAA54..(G,V)..(ARL,SA)201811-202310

BLACK,TRIM2#,4#

main58903-42060-C0iAXAA54..V..GCC;AXAH54..V..ARL;AXAH54,MXAA52..(G,V)..SA;AXAA54,MXAA54..(G,V)..(ARL,SA)202210-202310

AUDIO JACK-FRONT:USB1,REAR:USB2,BLACK,TRIM2#

main58903-42060-C0iAXAA54..V..GCC;AXAH54..V..ARL;AXAH54,MXAA52..(G,V)..SA;AXAA54,MXAA54..(G,V)..(ARL,SA)202008-202310

AUDIO JACK-FRONT:USB1,REAR:USB2,BLACK,TRIM2#,4#

main58903-42060-C0iAXAA54..V..GCC;AXAH54..V..ARL;AXAH54,MXAA52..(G,V)..SA;AXAA54,MXAA54..(G,V)..(ARL,SA)202008-202310

AUDIO JACK-FRONT:USB1,REAR:USB2,BLACK,TRIM1#,2#,4#

main58903-42060-C0iAXAA54..V..GCC;AXAH54..V..ARL;AXAH54,MXAA52..(G,V)..SA;AXAA54,MXAA54..(G,V)..(ARL,SA)202310

AUDIO JACK-FRONT:USB3, REAR:USB2,BLACK,TRIM2#,4#

main58903-42060-C0iAXAA54..V..GCC;AXAH54..V..ARL;AXAH54,MXAA52..(G,V)..SA;AXAA54,MXAA54..(G,V)..(ARL,SA)202310

AUDIO JACK-FRONT:USB3, REAR:USB2,BLACK,TRIM2#

main58903-42060-C0iAXAA54..V..GCC;AXAH54..V..ARL;AXAH54,MXAA52..(G,V)..SA;AXAA54,MXAA54..(G,V)..(ARL,SA)202310

AUDIO JACK-FRONT:USB3, REAR:USB2,BLACK,TRIM1#,2#,4#

main58903-42060-C0iAXAH54..RUS;MXAA52..6F..G..SA201811-202210

AUDIO JACK-FRONT:AUX & USB1,REAR:USB2,BLACK,TRIM1#,2#,4#

main58903-42060-C0iAXAH54..RUS;MXAA52..6F..G..SA201811-202210

AUDIO JACK-FRONT:AUX & USB3,REAR:USB2,BLACK,TRIM1#,2#,4#

main58903-42060-C0iAXAH5#,AXAL5#..RHD..X..EUR202008-202210

AUDIO JACK-FRONT:AUX & USB1,REAR:USB2,BLACK,TRIM2#,4#

main58903-42060-C0iAXAH5#,AXAL5#..RHD..X..EUR202008-202210

AUDIO JACK-FRONT:AUX & USB3,REAR:USB2,BLACK,TRIM2#,4#

main58903-42060-C0iAXAH5#,AXAL5#..RHD..X..EUR202008-202310

AUDIO JACK-FRONT:USB3, REAR:USB3,BLACK,TRIM2#,4#

main58903-42060-C0iAXAH5#,AXAL5#..RHD..X..EUR202008-202310

AUDIO JACK-FRONT:USB3, REAR:USB3,BLACK,TRIM1#,2#,4#

main58903-42060-C0iMXAA52..X..ARL;AXAH5#..(V,X)..(ARL,SA);AXAA54,MXAA54..V..(ARL,GCC,SA)202210-202310

AUDIO JACK-FRONT:USB3, REAR:USB3,BLACK,TRIM2#

58911BPANEL, BOX, NO.1

main58911-42060-C0iAXAA5#,AXAH54,MXAA54..LHD..(ATM,CVT)..(V,X)..(GCC,GEN)201811-202410

BLACK,TRIM2#

main58911-42060-C0iAXAA52..X..GEN;MXAA54..V..GCC201811-202310

BLACK,TRIM2#,4#

main58911-42060-C0iAXAA52..X..GEN;MXAA54..V..GCC201811-202310

BLACK,TRIM1#,2#,4#

main58911-42070-C0iMXAA5#..6F..X..GEN201901-202310

BLACK,TRIM2#,4#

main58911-42070-C0iMXAA5#..6F..X..GEN201811-202310

BLACK,TRIM1#,2#,4#

main58911-42070-C0iMXAA5#..LHD..6F..X..GEN202008-202210

BLACK,TRIM2#

main58911-42080-C0iAXAH52..RHD..P..EUR;AXAL5#..RHD..(M,P,V);AXAA54,AXAH5#,MXAA52..(M,P,X)..ARL201811-202410

BLACK,TRIM2#

main58911-42080-C0iAXAH54..V..ARL;MXAA54..RHD..(V,X);MXAA52..RHD..X..GEN;AXAA54..(G,V)..(ARL,SA);AXAH54,MXAA52..(G,V)..SA201901-202310

BLACK,TRIM2#,4#

main58911-42080-C0iAXAH54..V..ARL;MXAA54..RHD..(V,X);MXAA52..RHD..X..GEN;AXAA54..(G,V)..(ARL,SA);AXAH54,MXAA52..(G,V)..SA201811-202410

BLACK,TRIM1#,2#,4#

main58911-42090-C0iMXAA52..6F..G..SA201811-202111

BLACK,TRIM1#,2#,4#

main58911-42090-C0iMXAA52..RHD..6F..(ARL,GEN)201901-202210

BLACK,TRIM2#,4#

58912DPANEL, BOX, NO.2

main58912-42050-C0iAXAH54..LHD..G;AXAH54..M..GCC;AXAH52,AXAL5#..LHD..G..EUR;AXAA5#,AXAH52,MXAA5#..LHD..(ATM,CVT)..(G,M)..(GCC,GEN)201811-202310

BLACK,TRIM2#,4#

main58912-42050-C0iAXAH54..LHD..G;AXAH54..M..GCC;AXAH52,AXAL5#..LHD..G..EUR;AXAA5#,AXAH52,MXAA5#..LHD..(ATM,CVT)..(G,M)..(GCC,GEN)201811-202410

BLACK,TRIM2#

main58912-42050-C0iAXAH52..P..GEN;MXAA54..JPP..RUS;AXAH54..LHD..(M,P,V,X)..(EUR,GEN);AXAH52,AXAL5#..LHD..(M,P,V,X)..EUR201811-202310

BLACK,TRIM1#,2#,4#

main58912-42060-C0iMXAA5#..6F..(M,X)..EUR201901-202310

BLACK,TRIM2#,4#

main58912-42060-C0iMXAA5#..6F..(M,X)..EUR201811-202310

BLACK,TRIM1#,2#,4#

main58912-42060-C0iMXAA5#..LHD..6F..X..GEN202008-202210

BLACK,TRIM2#

main58912-42070-C0iMXAA52..CVT..X..SA201901-202310

BLACK,TRIM2#,4#

main58912-42070-C0iAXAH52..RHD..G..GEN201811-202410

BLACK,TRIM1#,2#,4#

main58912-42070-C0iAXAH52..RHD..M;AXAL5#..(G,M)..ARL;AXAL5#..RHD..G..EUR;MXAA54..RHD..CVT..(M,X);AXAH52..RHD..G..(ARL,EUR);AXAA54,MXAA52..RHD..(ATM,CVT)..X..(GEN,SA);AXAA5#,AXAH54,MXA201811-202410

BLACK,TRIM2#

main58912-42080-C0iMXAA52..6F..SA201901-202210

BLACK,TRIM2#,4#

main58912-42080-C0iMXAA54..RHD..6F201811-202111

BLACK,TRIM1#,2#,4#

58913APANEL, BOX, NO.3

main58913-42010iAXAL5#..RHD;MXAA54..JPP..M..RUS;MXAA52..X..(GCC,GEN);AXAH52..RHD..(G,P)..EUR;MXAA52..(G,M)..(GEN,SA);AXAH54..LHD..(M,P,V)..EUR;AXAA5#,AXAH5#,MXAA54..GCC,GEN,SA;AXAH201811-202410

main58913-42010iMXAA52..X..SA202112-202210

AUDIO-4SPEAKER(AUDIO LESS)&AUDIO JACK-WITHOUT

main58913-42010iMXAA52..X..SA202008-202112

LE PACKAGE

main58913-42030iMXAA54..RHD..6F;AXAH54..RHD..M..GEN;AXAA54..RHD..V..GEN;AXAA52,AXAH52..RHD..GEN202008-202112

AUDIO JACK-FRONT:USB3, REAR:USB3

main58913-42030iMXAA54..RHD..6F;AXAH54..RHD..M..GEN;AXAA54..RHD..V..GEN;AXAA52,AXAH52..RHD..GEN202008-202112

AUDIO JACK-FRONT:AUX & USB3,REAR:USB2

main58913-42030iAXAA54,MXAA52..G..SA202008-202112

AUDIO JACK-FRONT:USB2,REAR:USB2

main58913-42030iAXAA54,MXAA5#..RUS202005-202009

main58913-42040iMXAA52..X..SA201901-202112

main58913-42050iMXAA5#..M..EUR202112-202310

AUDIO JACK-FRONT:USB3, REAR:USB3

main58913-42050iAXAA54..(M,V,X)..ARL;AXAH5#,MXAA52..CVT..ARL;AXAH5#,AXAL5#,MXAA5#..LHD..G..EUR202112-202210

AUDIO JACK-FRONT:AUX & USB3,REAR:USB2

main58913-42050iAXAL5#..RHD;MXAA54..JPP..M..RUS;AXAH52..RHD..(G,P)..EUR;AXAH54..(G,M,V)..(GCC,GEN,SA);AXAH5#,AXAL5#..LHD..(M,P,V)..EUR;AXAA5#,AXAH52,MXAA5#..(ATM,CVT)..(G,M,P,V)..(202310

AUDIO JACK-FRONT:USB3, REAR:USB2

58920AARMREST ASSY, REAR CONSOLE

main58920-42010-C0iAXAA52..X..GCC;AXAA54,AXAH5#,MXAA5#..(ATM,CVT)..X..(ARL,GCC,GEN,SA)201811-202310

BLACK,TRIM1#,2#,4#

main58920-42010-C0iAXAH5#..LHD..M..(GCC,GEN);AXAA5#,MXAA5#..(ATM,CVT)..M..(GCC,GEN)201811-202310

BLACK,TRIM2#,4#

main58920-42010-C0iAXAA5#,AXAH5#,MXAA5#..(ATM,CVT)..X..(GCC,GEN)202310

BLACK,TRIM2#

main58920-42020-C1iMXAA54..V..GCC;AXAA54..RHD..V..GEN201811-202410

BLACK,TRIM2#

main58920-42020-C1iAXAH54..G..RUS201811-202410

BLACK,TRIM1#,2#,4#

main58920-42020-C1iAXAA54,MXAA54..V201811-202310

BLACK,TRIM2#,4#

main58920-42020-C1iAXAA54,AXAH54,MXAA54..V..(ARL,GCC,GEN,SA)202210-202410

BLACK,TRIM20

main58920-42020-C4iAXAH54..RHD..P..EUR202210-202410

BLACK/LT.GRAY,TRIM20

main58920-42030-C1iMXAA52..6F..SA;MXAA5#..LHD..6F..X..GEN201901-202310

BLACK,TRIM2#,4#

main58920-42030-C1iMXAA54..6F..G;MXAA5#..LHD..6F..M..GEN201811-202310

BLACK,TRIM1#,2#,4#

main58920-42030-C1iMXAA54..6F..G;MXAA5#..LHD..6F..M..GEN202008-202210

BLACK,TRIM2#

58949ASPRING, CONSOLE BOX MOUNTING BRACKET

main58949-42040iMXAA52..CVT..X..SA201811-202310

main58949-42050iAXAA54,MXAA5#..RUS201811-202410

58966BPIN, CONSOLE COMPARTMENT DOOR STOPPER

main58966-42020iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR201811-202410

58985RETAINER, CONSOLE BOX

main58985-42060iMXAA5#..LHD..CVT..EUR201811-202410

main58985-42070iMXAA5#..6F..GEN201811-202310

main58985-42080iAXAL5#..ARL;AXAA54..G..ARL;AXAH54..RHD..M..GEN;AXAA54..RHD..V..GEN;AXAA52,AXAH52..RHD..GEN;AXAH5#,AXAL5#..RHD..X..EUR201811-202410

main58985-42090iMXAA5#..RHD..6F..(M,X)201811-202210

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0R100iAXAA54,MXAA5#..RUS201910-202203

sub58996-42080

main58996-42080iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXA201811-202207

sub58996-42081

main58996-42081iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR202208-202410

8121

8202

8615

9011908D23

main90119-08D23

9046705171

main90467-05171

9046705172

main90467-05172

9046707215

main90467-07215

9167380616

main91673-80616

9616000600

main96160-00600

34 parts on this diagram · 6 diagrams in section
