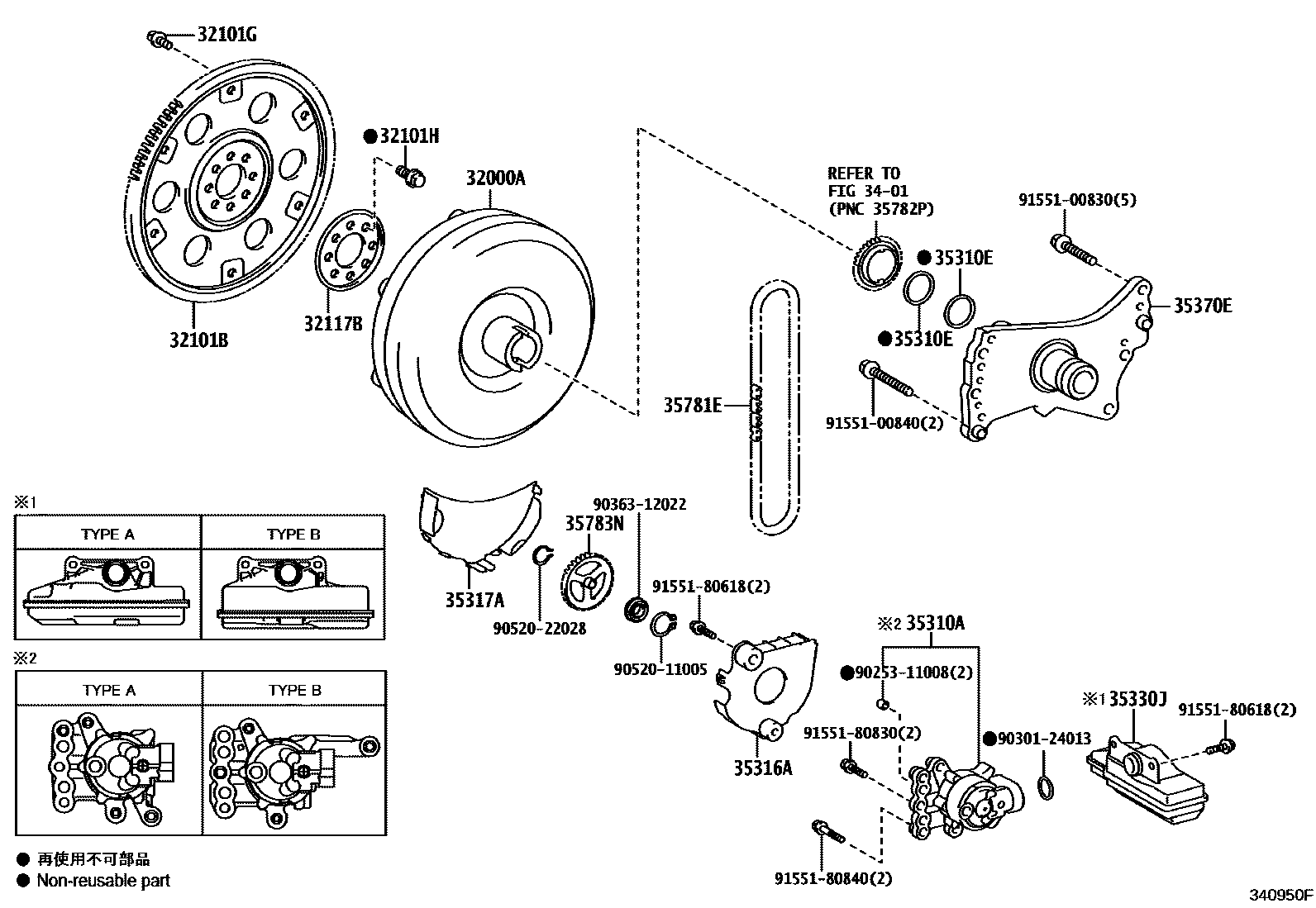

TORQUE CONVERTER, FRONT OIL PUMP(CVT)
32000ACONVERTER ASSY, TORQUE
main32000-12460iMXAA52..JPP..CVT;MXAA54..JPP..CVT..(M,X);MXAA54..CVT..(G,V)..(EUR,GEN,SA)202201-202210
AISIN:REFER 34-01
TMH:REFER 34-01
32101BGEAR SUB-ASSY, DRIVE PLATE & RING
32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.4-7.3,BLACK
main90119-09025×5iMXAA52..CVT..X..(ARL,GCC,GEN);MXAA52..CVT..(G,M)..(ARL,GEN,SA);MXAA54..JPP..CVT..(GCC,GEN,RUS,SA)202210-202310
*9-1.25PX12.4-8.4,SILVER WHITE
32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
32117BSPACER, DRIVE PLATE, REAR
3401TRANSAXLE ASSY(CVT)
35310APUMP ASSY, FRONT OIL
main35310-28050iMXAA52..CVT..X..(ARL,GCC,GEN);MXAA52..CVT..(G,M)..(ARL,GEN,SA);MXAA54..JPP..CVT..(GCC,GEN,RUS,SA)202210-202310
TYPE B:REFER ILLUST.
35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)
main35617-12060×2iMXAA52..CVT..X..(ARL,GCC,GEN);MXAA52..CVT..(G,M)..(ARL,GEN,SA);MXAA54..JPP..CVT..(GCC,GEN,RUS,SA)202210-202310
TMH:REFER 34-01
main35617-12070×2iMXAA52..CVT..X..(ARL,GCC,GEN);MXAA52..CVT..(G,M)..(ARL,GEN,SA);MXAA54..JPP..CVT..(GCC,GEN,RUS,SA)202310
AISIN AW:REFER 34-01
35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1
main35316-12010iMXAA52..CVT..X..(ARL,GCC,GEN);MXAA52..CVT..(G,M)..(ARL,GEN,SA);MXAA54..JPP..CVT..(GCC,GEN,RUS,SA)202310
TMH:REFER 34-01
AISIN AW:REFER 34-01
35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2
main35317-12010iMXAA52..JPP..CVT;MXAA54..JPP..CVT..(M,X);MXAA54..CVT..(G,V)..(EUR,GEN,SA)202008-202210
TMH:REFER 34-01
main35317-12020iMXAA52..CVT..X..(ARL,GCC,GEN);MXAA52..CVT..(G,M)..(ARL,GEN,SA);MXAA54..JPP..CVT..(GCC,GEN,RUS,SA)202310
AISIN AW:REFER 34-01
35330JSTRAINER ASSY, OIL
TYPE A:REFER ILLUST.
main35330-12090iMXAA5#..CVT..EUR; MXAA5#..LHD..CVT..EUR; MXAA52..CVT..ARL; MXAA54..(G,V)..(GEN,SA);MXAA54..CVT..(M,X)..(GCC,GEN);MXAA52..CVT..(ARL,GCC,GEN,SA)202201-202209
*708; LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN,*708; REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.
main35330-28040iMXAA52..JPP..CVT;MXAA54..JPP..CVT..(M,X);MXAA54..CVT..(G,V)..(EUR,GEN,SA)202106-202210
TYPE B:REFER ILLUST.
35370ESHAFT ASSY, STATOR (CVT)
TMH:REFER 34-01
main35370-12130iMXAA52..CVT..X..(ARL,GCC,GEN);MXAA52..CVT..(G,M)..(ARL,GEN,SA);MXAA54..JPP..CVT..(GCC,GEN,RUS,SA)202310
AISIN AW:REFER 34-01
35781ECHAIN, TRANSMISSION DRIVE
main35781-33010iMXAA52..JPP..CVT;MXAA54..JPP..CVT..(M,X);MXAA54..CVT..(G,V)..(EUR,GEN,SA)202206-202209
AISIN AW:REFER 34-01
main35781-42010iMXAA52..CVT..X..(ARL,GCC,GEN);MXAA52..CVT..(G,M)..(ARL,GEN,SA);MXAA54..JPP..CVT..(GCC,GEN,RUS,SA)202210-202310
TMH:REFER 34-01,AISIN AW:REFER 34-01
35783NSPROCKET, DRIVEN
9025311008
main90253-11008
9030124013
main90301-24013
9036312022
main90363-12022
9052011005
main90520-11005
9052022028
main90520-22028
9155100830
main91551-00830
9155100840
main91551-00840
9155180618
main91551-80618
9155180830
main91551-80830
9155180840
main91551-80840
24 parts on this diagram · 1 diagram in section
