HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1AIR DUCT 0002 1AIR DUCT 0003 1SENSOR 0004 1SENSOR 0005 1CONTROL PANEL

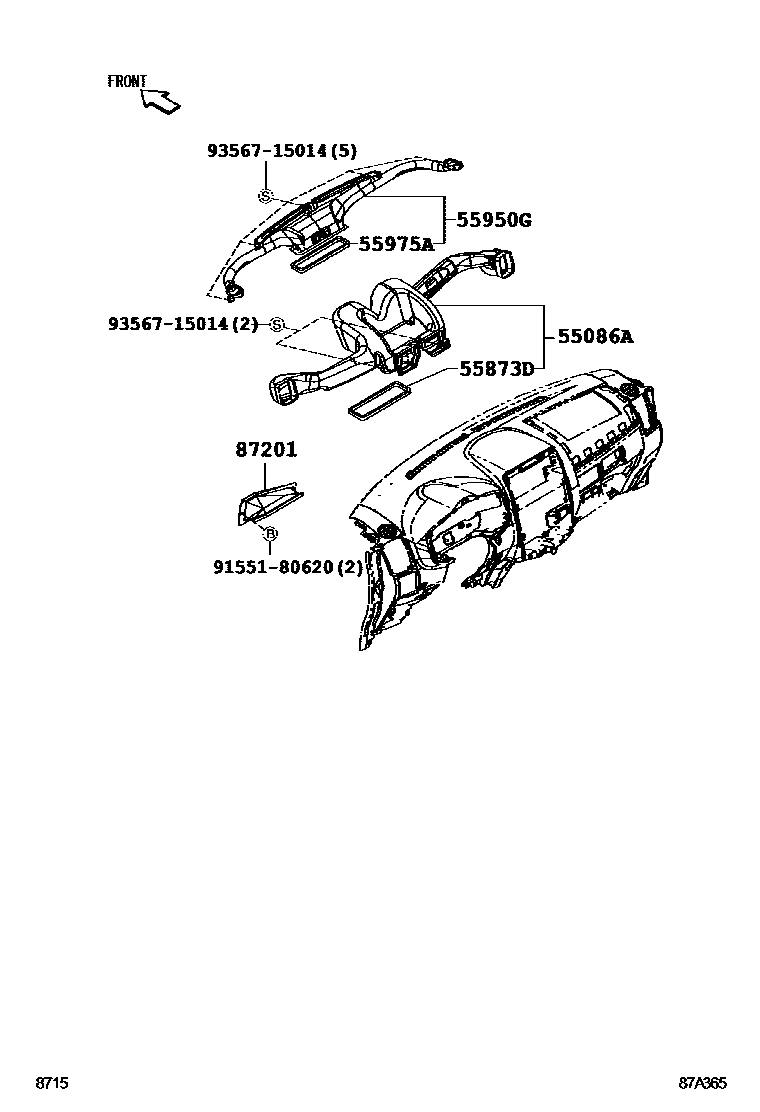

55086ADUCT SUB-ASSY, HEATER TO REGISTER, CENTER

main55086-B4020iJ200200811-200911

55873DSEAL, AIR DUCT, CENTER

main55873-B4010iJ200200811-200911

55950GNOZZLE ASSY, DEFROSTER

main55950-B4010iJ200200811-200911

55975ASEAL, DEFROSTER NOZZLE, NO.1

main55975-B4010iJ200200811-200911

87201DUCT SUB-ASSY, AIR, NO.1

main87220-B4020iJ200200811-200911

9155180620

main91551-80620

9356715014

main93567-15014

7 parts on this diagram · 5 diagrams in section
