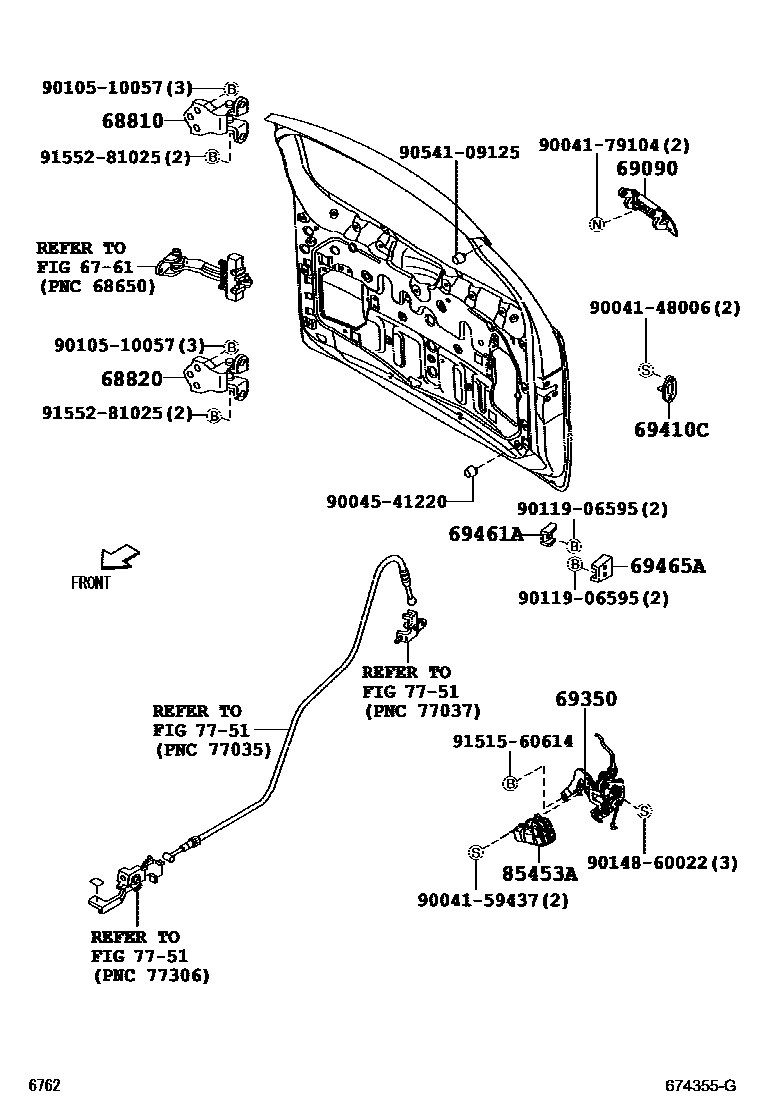

BACK DOOR LOCK & HINGE

6761BACK DOOR PANEL & GLASS

→ Go to FIG 67-61

68810HINGE ASSY, BACK DOOR, UPPER

main68810-B4010iJ200,210200811

68820HINGE ASSY, BACK DOOR, LOWER

main68810-B4010iJ200,210200811

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-B4010iJ200,210201605

main69090-B4020-A1iJ200200811-200911

WHITE,W23

main69090-B4020-B0iJ200200811-200911

SILVER ME.,S28

main69090-B4020-B1iJ200200811-200911

GRAY ME.,S33

main69090-B4020-C0iJ200200811-200911

BLACK M.M.,X07

main69090-B4020-D0iJ200200811-200911

RED,R40

main69090-B4020-E0iJ200200811-200911

CHAMPAGNE ME.,T23

main69090-B4020-G1iJ200200811-200911

BRITISH GREEN MC.,G37

main69090-B4020-J0iJ200200811-200911

BLUE M.M.,B58

main69090-B4021-A2iJ200,210201605

HI-G PACKAGE,WHITE PEARL MC.CS,W24; MID PACKAGE,WHITE PEARL MC.CS,W24

main69090-B4021-B0iJ200,210201605

HI-G PACKAGE,SILVER ME.,S28; MID PACKAGE,SILVER ME.,S28

main69090-B4021-B1iJ200,210201605

HI-G PACKAGE,GRAY ME.,S33; MID PACKAGE,GRAY ME.,S33

69350LOCK ASSY, BACK DOOR

main69301-B4010iJ200,210200811

69410CPLATE ASSY, BACK DOOR LOCK STRIKER

main69410-97203iJ200,210200811

69461ASTOPPER, BACK DOOR SIDE MALE

main69461-87401iJ200,210200811

69465ASTOPPER, BACK DOOR SIDE FEMALE

main69465-B4010iJ200,210200811

7751FUEL TANK & TUBE

→ Go to FIG 77-51

85453AMOTOR, DOOR CONTROL

main85490-B2010iJ200,210200811

9004148006

main90041-48006

9004159437

main90041-59437

9004179104

main90041-79104

9004541220

main90045-41220

9010510057

main90105-10057

9011906595

main90119-06595

9014860022

main90148-60022

9054109125

main90541-09125

9151560614

main91515-60614

9155281025

main91552-81025

20 parts on this diagram · 1 diagram in section
