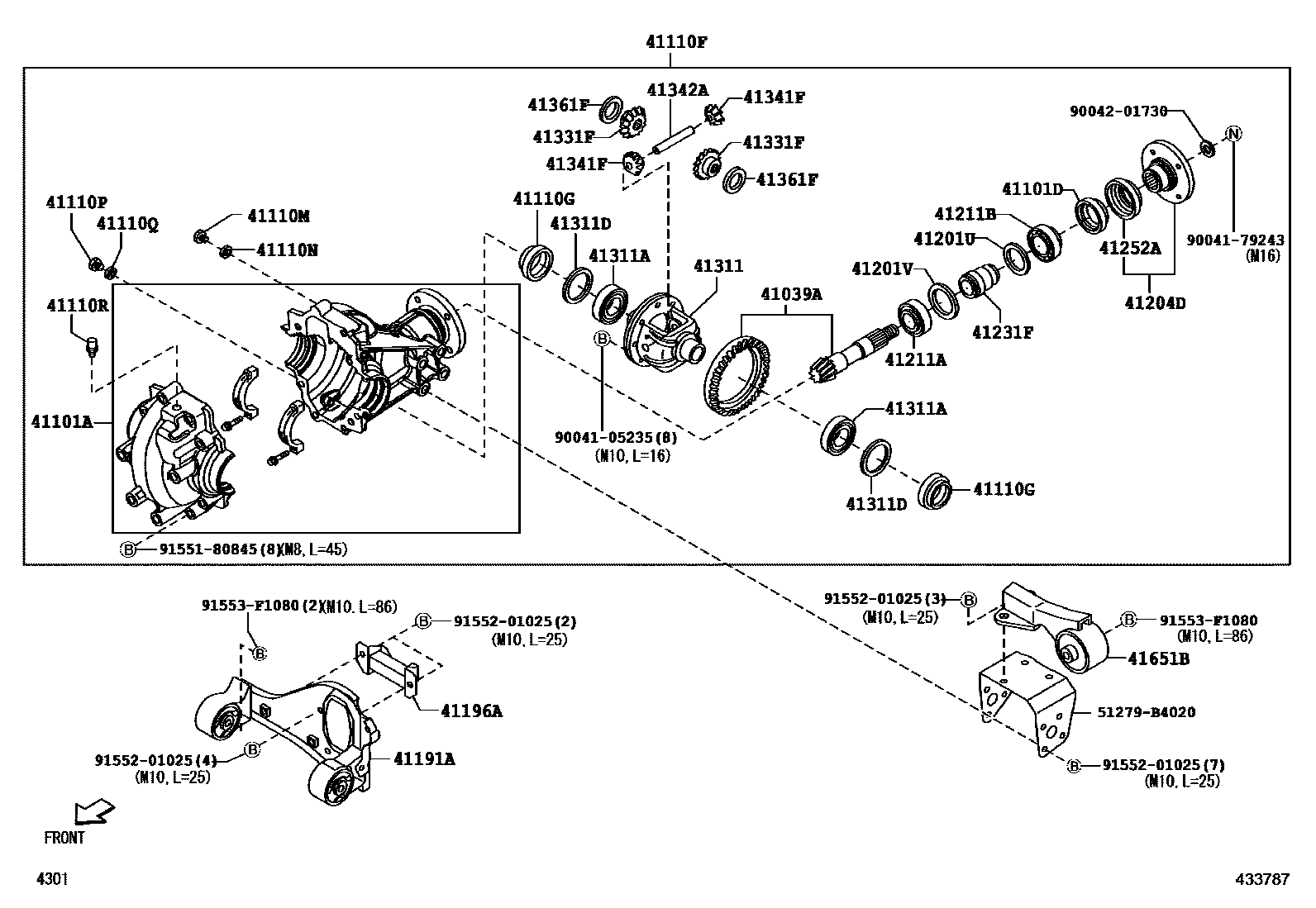

FRONT AXLE HOUSING & DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
41110GSEAL, OIL (FOR DIFFERENTIAL SIDE)
41110MPLUG, FRONT DIFFERENTIAL FILLER
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
41110PPLUG, FRONT DIFFERENTIAL DRAIN
41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG
41110RPLUG, BREATHER (FOR FRONT DIFFERENTIAL)
41191ABRACKET, FRONT DIFFERENTIAL CARRIER SUPPORT
41196ADAMPER, FRONT DIFFERENTIAL DYNAMIC
41201USHIM (FOR FRONT DIFF DRIVE PINION SPACER FRONT ADJUST)
T=1.65,T=1.65
T=1.70,T=1.90
T=1.75,T=1.90
T=1.80,T=1.90
T=1.85,T=1.90
T=1.90,T=1.90
T=1.95,T=1.90
T=2.00,T=1.90
T=2.05,T=1.90
T=2.10,T=1.90
T=2.15,T=1.90
T=2.20,T=1.90
T=2.25,T=1.90
T=2.30,T=1.90
T=2.35,T=1.90
T=2.40,T=1.90
T=2.45,T=1.90
41201VSHIM (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST)
T=0.15,T=0.15
T=0.20,T=0.20
T=0.25,T=0.25
T=0.5,T=0.50
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41311CASE, FRONT DIFFERENTIAL
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
T=1.30
T=1.35
T=1.40
T=1.45
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.8
T=0.9
T=1.0
T=0.85
41651BCUSHION, FRONT DIFFERENTIAL MOUNT, NO.1
RR
51279B4020PLATE, STRUT BAR BRACKET
main51279-B4020
9004105235
main90041-05235
9004179243
main90041-79243
9004201730
main90042-01730
9155180845
main91551-80845
9155201025
main91552-01025
91553F1080
main91553-F1080
34 parts on this diagram · 1 diagram in section
