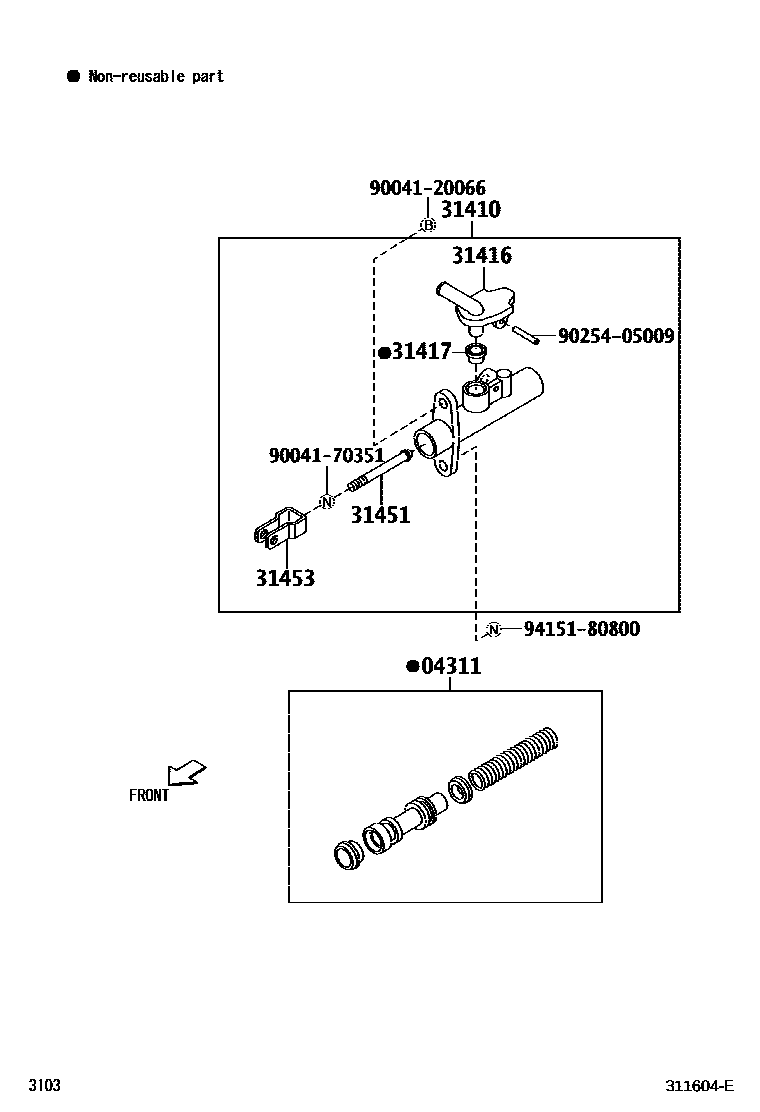

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-B4010iJ200..5F200811-200911

31410CYLINDER ASSY, CLUTCH MASTER

main31420-B4010iJ200..5F200811-200911

31416UNION, CLUTCH MASTER CYLINDER INLET

main31416-87401iJ200..5F200811-200911

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iJ200..5F200811-200911

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-36040iJ200..5F200811-200911

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-35010iJ200..5F200811-200911

9004120066

main90041-20066

9004170351

main90041-70351

9025405009

main90254-05009

9415180800

main94151-80800

10 parts on this diagram · 1 diagram in section
