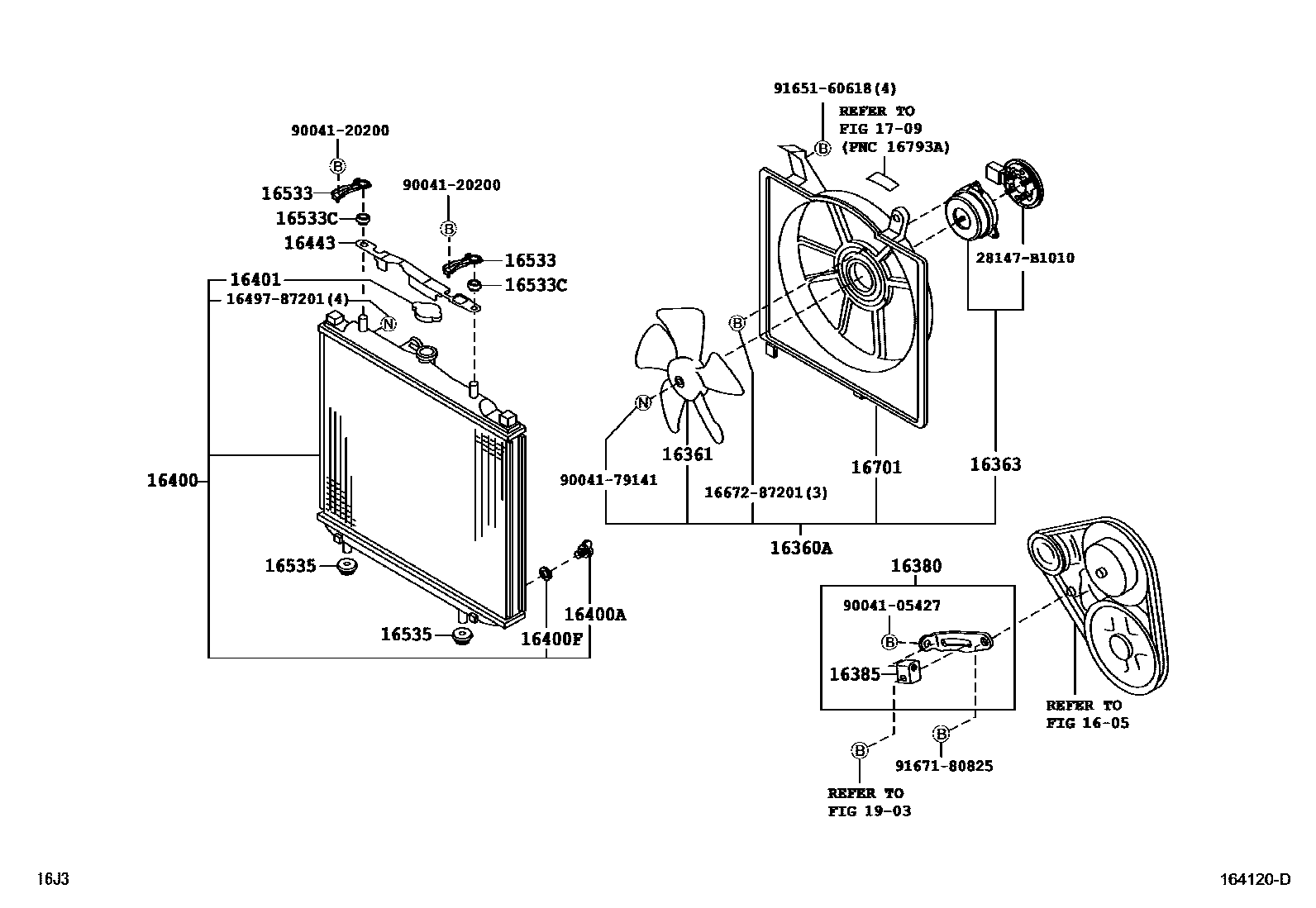

RADIATOR & WATER OUTLET

0001 1 0003 1 0005 1

1605V-BELT

→ Go to FIG 16-05

16360AFAN ASSY, W/MOTOR

main16360-B1101supersedes 16360-B1091i3SZVE..J200200811-200911

16361FAN

main16361-87404supersedes 16361-87403i3SZVE..J200200811-200911

16363MOTOR, COOLING FAN

main16680-87407supersedes 16680-97204i3SZVE..J200200811-200911

16380BRACKET ASSY, FAN

main16380-B1051i3SZVE..J200,210200811

16385SLIDER, FAN BELT ADJUSTING

main16385-23030i3SZVE..J200,210200811

16400RADIATOR ASSY

main16400-B1340i3SZVE..J200,210..5F200811

main16400-B1350i3SZVE..J200..E4AT200811-200911

main16400-B1440i3SZVE..J200,210..5F201605

TROPIC SPEC.-HOT AREA SPEC

main16400-B1450supersedes 16400-B1430i3SZVE..J200,210..E4AT201605

TROPIC SPEC.-HOT AREA SPEC

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main16417-30170i3SZVE..J200,210200811

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-87503i3SZVE..J200,210200811

16401CAP SUB-ASSY, RADIATOR

main16401-B1020i3SZVE..J200,210200811

16443PLATE, RADIATOR TANK, LOCK, UPPER

main16443-B1010i3SZVE..J200,210200811

16533SUPPORT, RADIATOR, UPPER

main16582-B1020×2i3SZVE..J200,210200811

16533CGROMMET(FOR RADIATOR SUPPORT)

main90044-80617×2i3SZVE..J200,210200811

16535SUPPORT, RADIATOR, LOWER

main90044-80651×2i3SZVE..J200,210200811

16701SHROUD SUB-ASSY, FAN

main16711-B1030i3SZVE..J200,210200811

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

1903ALTERNATOR

→ Go to FIG 19-03

1649787201INLET SUB-ASSY

main16497-87201

1667287201

main16672-87201

28147B1010

main28147-B1010

9004105427

main90041-05427

9004120200

main90041-20200

9004179141

main90041-79141

9165160618

main91651-60618

9167180825

main91671-80825

25 parts on this diagram · 3 diagrams in section
