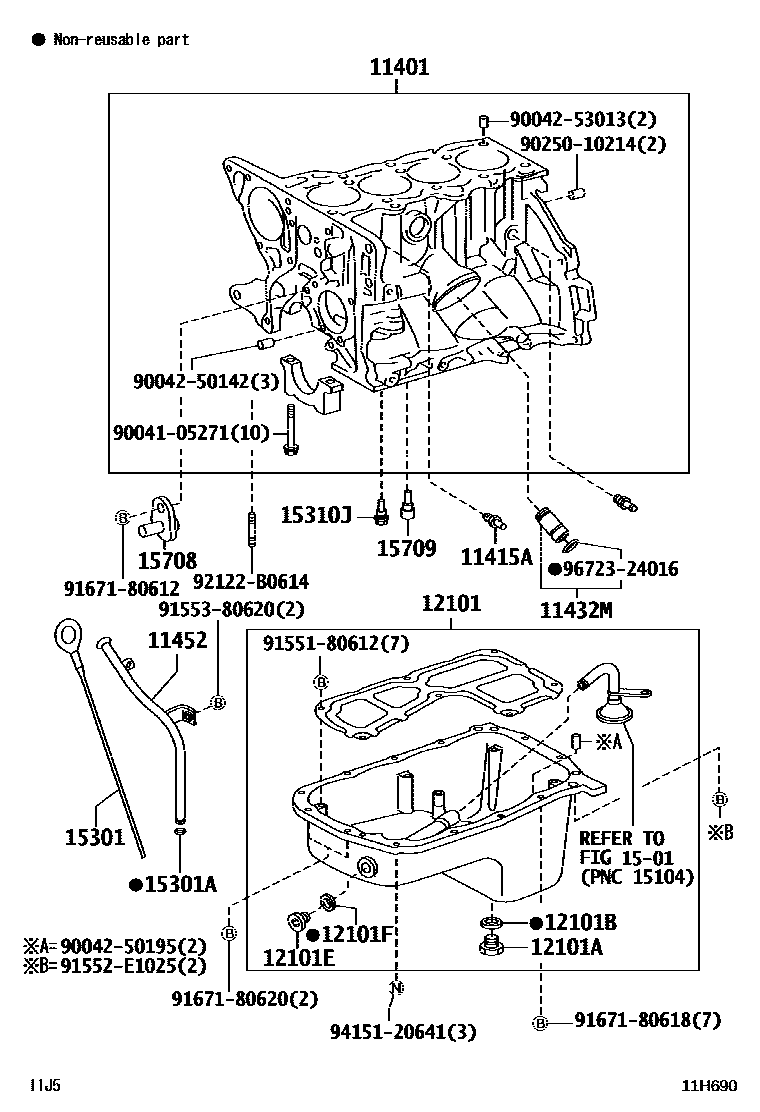

CYLINDER BLOCK

11401BLOCK SUB-ASSY, CYLINDER

main11401-B1020-10i3SZVE..J200200811-200911

.

main11401-B1150i3SZVE..J200,210201605

.

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90048-08005i3SZVE..J200,210200811

11432MUNION(FOR CYLINDER BLOCK)

main90044-04120i3SZVE..J200,210200811

11452GUIDE, OIL LEVEL GAGE

main11452-B1030i3SZVE..J200,210200811

12101PAN SUB-ASSY, OIL

main12101-B1030i3SZVE..J200,210200811

12101APLUG(FOR OIL PAN DRAIN)

main90043-41087i3SZVE..J200,210200811

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90044-30281i3SZVE..J200,210200811

12101EPLUG, OIL PAN(FOR OIL COOLER)

main90043-41076i3SZVE..J200,210200811

12101FGASKET(FOR OIL COOLER)

main90044-30290i3SZVE..J200,210200811

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-B1040i3SZVE..J200,210200811

15301ARING, O(FOR OIL LEVEL GAGE)

main96723-19010i3SZVE..J200,210200811

15310JREGULATOR ASSY, OIL

main15310-97401i3SZVE..J200,210200811

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-97402i3SZVE..J200,210200811

15709NOZZLE SUB-ASSY, OIL, NO.2

main15790-87201×4i3SZVE..J200200811-200911

main15790-B0010×4i3SZVE..J200,210201605

9004105271

main90041-05271

9004250142

main90042-50142

9004250195

main90042-50195

9004253013

main90042-53013

9025010214

main90250-10214

9155180612

main91551-80612

91552E1025

main91552-E1025

9155380620

main91553-80620

9167180612

main91671-80612

9167180618

main91671-80618

9167180620

main91671-80620

92122B0614

main92122-B0614

9415120641

main94151-20641

9672324016

main96723-24016

29 parts on this diagram · 1 diagram in section
