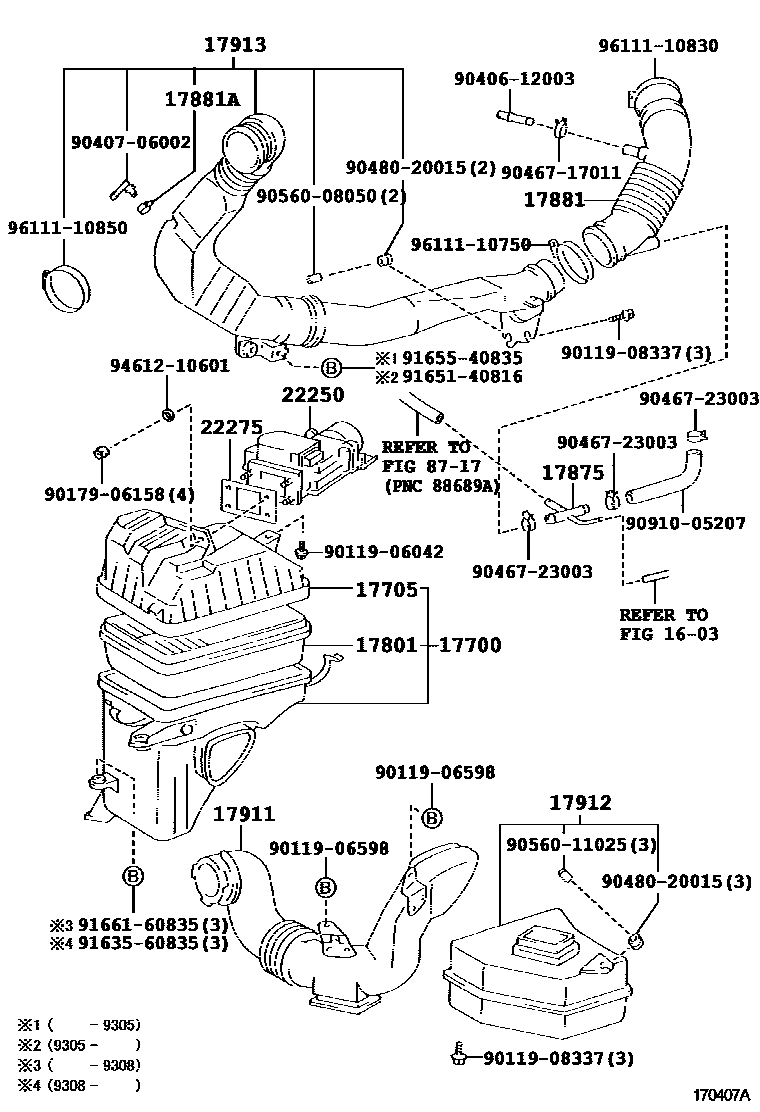

AIR CLEANER

0001 1 0002 1

1603

17700CLEANER ASSY, AIR

main17700-76120i2TZFE..TCR10,20199001-199108

main17700-76121i2TZFE..TCR10,20199108-199608

main17700-76140i2TZFZE..TCR10,20199401-199707

17705CAP SUB-ASSY, AIR CLEANER

main17705-76030i2TZFE..TCR10,20199001-199608

main17705-76040i2TZFZE..TCR10,20199401-199707

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-35020i2TZ#..TCR10,20199001-199707

17875PIPE, INTAKE AIR CONNECTOR

main17875-76020i2TZFE..TCR10,20199001-199108

sub17875-76021

main17875-76021i2TZFE..TCR10,20199108-199608

main17875-76030i2TZFZE..TCR10,20199401-199707

17881HOSE, AIR CLEANER, NO.1

main17881-76050i2TZFE..TCR10,20199001-199608

main17881-76070i2TZFZE..TCR10,20199401-199707

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90467-10088i2TZFE..TCR10,20199001-199608

sub96132-41000

main96111-20880i2TZFZE..TCR10,20199401-199707

THROTTLE BODY SIDE

sub96111-30880

main96111-30800i2TZFZE..TCR10,20199401-199707

AIR CLEANER SIDE

17911DUCT, COOL AIR INTAKE, NO.1

main52810-95D01i2TZFE..TCR10,20199001-199608

17912DUCT, COOL AIR INTAKE, NO.2

main52820-28030i2TZFZE..TCR10,20199401-199707

main52820-95D03i2TZFE..TCR10,20199001-199608

17913DUCT, COOL AIR INTAKE, NO.3

main52830-95D00i2TZFE..TCR10,20199001-199608

22250METER ASSY, INTAKE AIR FLOW

main22250-20010i2TZFZE..TCR10,20199401-199508

main22250-20020i2TZFZE..TCR10,20199508-199707

main22250-76010i2TZFE..TCR10,20199001-199608

main22250-76020i2TZFE..TCR10..07S..USA199302-199308

CHINA SPEC

22275GASKET, AIR FLOW METER

main22275-20010i2TZFZE..TCR10,20199401-199707

main22275-41010i2TZFE..TCR10,20199108-199608

8717

9011906042

main90119-06042

9011906598

main90119-06598

9011908337

main90119-08337

9017906158

main90179-06158

9040612003

main90406-12003

9040706002

main90407-06002

9046717011

main90467-17011

9046723003

main90467-23003

9048020015

main90480-20015

9056008050

main90560-08050

9056011025

main90560-11025

9091005207

main90910-05207

9163560835

main91635-60835

9165140816

main91651-40816

9165540835

main91655-40835

9166160835

main91661-60835

9461210601

main94612-10601

9611110750

main96111-10750

9611110830

main96111-10830

9611110850

main96111-10850

33 parts on this diagram · 2 diagrams in section
