ARMREST & VISOR

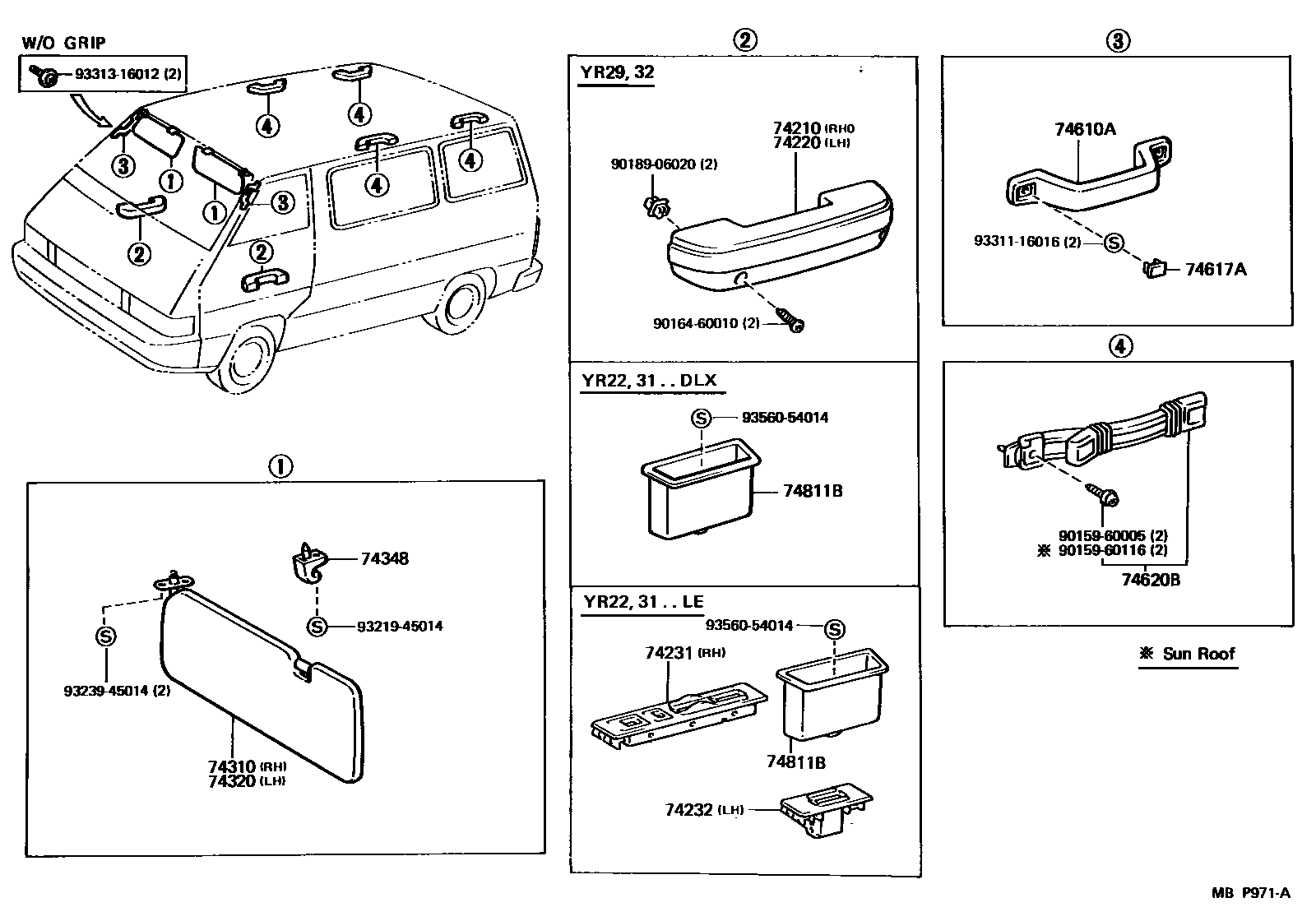

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74250-20010-13i198808-199001
SHADOW GRAY,TRIM1#
sub74250-20010
main74250-20010-24i198808-199001
BLUE,TRIM8#
sub74250-20010
main74250-20010-46i198808-199001
SABLE,TRIM4#
sub74250-20010
74220ARMREST ASSY, FRONT, LH
main74250-20010-13i198808-199001
SHADOW GRAY,TRIM1#
sub74250-20010
main74250-20010-24i198808-199001
BLUE,TRIM8#
sub74250-20010
main74250-20010-46i198808-199001
SABLE,TRIM4#
sub74250-20010
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-87002-03i198808-199001
SHADOW GRAY,TRIM1#
sub74231-87002
main74231-87002-04i198808-199001
BLUE,TRIM8#
sub74231-87002
main74231-87002-16i198808-199001
SABLE,TRIM4#
sub74231-87002
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-87001-03i198808-199001
SHADOW GRAY,TRIM1#
sub74232-87001
main74232-87001-04i198808-199001
BLUE,TRIM8#
sub74232-87001
main74232-87001-16i198808-199001
SABLE,TRIM4#
sub74232-87001
74310VISOR ASSY, RH
main74310-28040-03i198808-199001
GRAY,TRIM1#
sub74310-28040
sub74310-28050
main74310-28040-04i198808-199001
LIGHT BLUE,TRIM8#
sub74310-28040
sub74310-28050
main74310-28040-06i198808-199001
LIGHT SABLE,TRIM4#
sub74310-28040
sub74310-28050
main74310-28050-03i198808-199001
GRAY,TRIM1#
sub74310-28021
main74310-28050-04i198808-199001
LIGHT BLUE,TRIM8#
sub74310-28021
main74310-28050-06i198808-199001
LIGHT SABLE,TRIM4#
sub74310-28021
main74310-28060-04i198808-199001
W(TWIN SUN ROOF),LIGHT BLUE,TRIM8#
sub74310-28060
main74310-28060-06i198808-199001
W(TWIN SUN ROOF),LIGHT SABLE,TRIM4#
sub74310-28060
main74310-28060-33i198808-199001
W(TWIN SUN ROOF),GRAY,TRIM1#
sub74310-28060
74320VISOR ASSY, LH
main74320-28030-04i198808-199001
W(TWIN SUN ROOF),LIGHT BLUE,TRIM8#
sub74320-28030
main74320-28030-06i198808-199001
W(TWIN SUN ROOF),LIGHT SABLE,TRIM4#
sub74320-28030
main74320-28030-33i198808-199001
W(TWIN SUN ROOF),GRAY,TRIM1#
sub74320-28030
main74320-28040-03i198808-199001
GRAY,TRIM1#
main74320-28040-03i198808-199001
W(URETHANE BUMPER),GRAY,TRIM1#
main74320-28040-04i198808-199001
W(URETHANE BUMPER),LIGHT BLUE,TRIM8#
main74320-28040-04i198808-199001
LIGHT BLUE,TRIM8#
main74320-28040-06i198808-199001
W(URETHANE BUMPER),LIGHT SABLE,TRIM4#
main74320-28040-06i198808-199001
LIGHT SABLE,TRIM4#
main74320-87015-03i198808-199001
GRAY,TRIM1#
sub74320-87014
main74320-87015-04i198808-199001
LIGHT BLUE,TRIM8#
sub74320-87014
main74320-87015-06i198808-199001
LIGHT SABLE,TRIM4#
sub74320-87014
main74320-95D01-03i198808-199001
W(URETHANE BUMPER),GRAY,TRIM1#
main74320-95D01-03i198808-199001
GRAY,TRIM1#
main74320-95D01-04i198808-199001
W(URETHANE BUMPER),LIGHT BLUE,TRIM8#
main74320-95D01-04i198808-199001
LIGHT BLUE,TRIM8#
main74320-95D01-06i198808-199001
LIGHT SABLE,TRIM4#
main74320-95D01-06i198808-199001
W(URETHANE BUMPER),LIGHT SABLE,TRIM4#
main74320-95D02-03i198808-199001
GRAY,TRIM1#
main74320-95D02-04i198808-199001
LIGHT BLUE,TRIM8#
main74320-95D02-06i198808-199001
LIGHT SABLE,TRIM4#
74348HOLDER, VISOR
main74348-32010-06i198808-199001
LIGHT BROWN,TRIM4#
sub74348-17010
sub74348-12020
sub74348-32010
main74348-32010-06i198808-199001
W(SEPARATE SEAT & SEPARABLE HEADREST),LIGHT BROWN,TRIM4#
sub74348-17010
sub74348-12020
sub74348-32010
main74348-32010-13i198808-199001
GRAY,TRIM1#
sub74348-17010
sub74348-12020
sub74348-32010
main74348-32010-13i198808-199001
W(SEPARATE SEAT & SEPARABLE HEADREST),GRAY,TRIM1#
sub74348-17010
sub74348-12020
sub74348-32010
main74348-32010-14i198808-199001
DEEP BLUE,TRIM8#
sub74348-17010
sub74348-12020
sub74348-32010
main74348-32010-14i198808-199001
W(SEPARATE SEAT & SEPARABLE HEADREST),DEEP BLUE,TRIM8#
sub74348-17010
sub74348-12020
sub74348-32010
74610AGRIP SUB-ASSY, ASSIST
main74603-16010-03i198808-199001
GRAY,TRIM1#
sub74603-16010
sub74610-16010
sub74610-12030
main74603-16010-03i198808-199001
W(SEPARATE SEAT & SEPARABLE HEADREST),GRAY,TRIM1#
sub74603-16010
sub74610-16010
sub74610-12030
main74603-16010-04i198808-199001
DEEP BLUE,TRIM8#
sub74603-16010
sub74610-16010
sub74610-12030
main74603-16010-04i198808-199001
W(SEPARATE SEAT & SEPARABLE HEADREST),DEEP BLUE,TRIM8#
sub74603-16010
sub74610-16010
sub74610-12030
main74603-16010-16i198808-199001
LIGHT BROWN,TRIM4#
sub74603-16010
sub74610-16010
sub74610-12030
main74603-16010-16i198808-199001
W(SEPARATE SEAT & SEPARABLE HEADREST),LIGHT BROWN,TRIM4#
sub74603-16010
sub74610-16010
sub74610-12030
74617APLUG, ASSIST GRIP
main74617-16010-13i198808-199001
GRAY,TRIM1#
sub74617-16010
main74617-16010-24i198808-199001
DEEP BLUE,TRIM8#
sub74617-16010
main74617-16010-46i198808-199001
BROWN,TRIM4#
sub74617-16010
74620BGRIP ASSY, ASSIST, REAR
main74610-14030-13i198808-199001
W(TWIN SUN ROOF),GRAY,TRIM1#
sub74610-14030
sub74610-12050
main74610-14030-24i198808-199001
W(TWIN SUN ROOF),DEEP BLUE,TRIM8#
sub74610-14030
sub74610-12050
main74610-14030-36i198808-199001
W(TWIN SUN ROOF),BROWN,TRIM4#
sub74610-14030
sub74610-12050
main74610-87005-03i198808-198908
GRAY,TRIM1#
sub74610-87005
main74610-87005-04i198808-199001
LIGHT BLUE,TRIM8#
sub74610-87005
main74610-87005-26i198808-199001
LIGHT SABLE,TRIM4#
sub74610-87005
main74610-87005-43i198908-199001
LIGHT GRAY,TRIM1#
sub74610-87005
74811BHANDLE, DOOR PULL
main74811-87001-03i198808-199001
SHADOW GRAY,TRIM1#
sub74811-87001
main74811-87001-04i198808-199001
BLUE,TRIM8#
sub74811-87001
main74811-87001-36i198808-199001
BROWN,TRIM4#
sub74811-87001
9015960005
main90159-60005
9015960116
main90159-60116
9016460010
main90164-60010
9018906020
main90189-06020
9321945014
main93219-45014
9323945014
main93239-45014
9331116016
main93311-16016
9331316012
main93313-16012
9356054014
main93560-54014

20 parts on this diagram · 1 diagram in section
