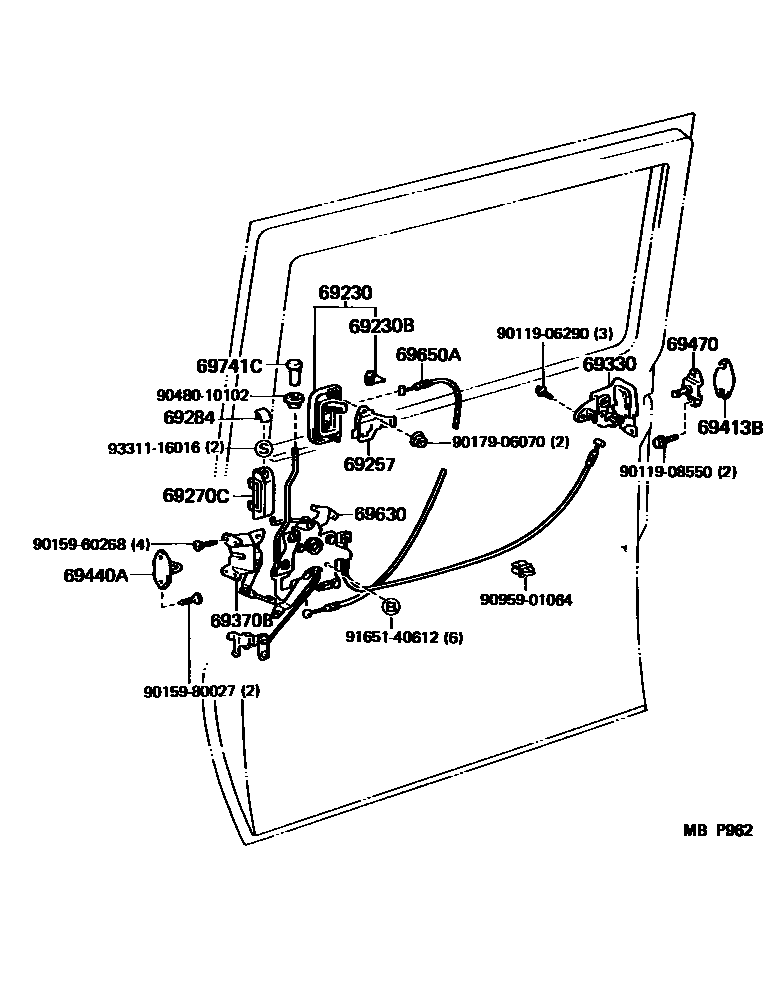

REAR DOOR LOCK & HANDLE

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-28010iYR2#,3#198808-199001

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021iYR2#,3#198808-199001

69257BRACKET, SLIDE DOOR OUTSIDE HANDLE

main69257-28010iYR2#,3#198808-199001

69270CHANDLE ASSY, FRONT SLIDE DOOR, INSIDE RH

main69270-28010-03iYR22,31;YR29,32..USA198808-199001

GRAY,TRIM1#

main69270-28010-04iYR22,31;YR29,32..USA198808-199001

BLUE,TRIM8#

main69270-28010-06iYR22,31;YR29,32..USA198808-199001

BROWN,TRIM4#

main69270-87001-03iYR29,32..CND198808-199001

GRAY,TRIM1#

main69270-87001-04iYR29,32..CND198808-199001

BLUE,TRIM8#

main69270-87001-06iYR29,32..CND198808-199001

BROWN,TRIM4#

69284PLUG, SLIDE DOOR INSIDE HANDLE

main69284-87001-03×2iYR2#,3#198808-199001

GRAY,TRIM1#

main69284-87001-14×2iYR2#,3#198808-199001

BLUE,TRIM8#

main69284-87001-16×2iYR2#,3#198808-199001

LIGHT BROWN,TRIM4#

69330LOCK ASSY, REAR DOOR, RH

main69330-87001iYR2#,3#198808-199001

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-28020iYR2#,3#198808-199001

69413BSHIM, DOOR LOCK STRIKER

main69413-87002iYR2#,3#198808-199001

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28010iYR2#,3#198808-199001

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-87001iYR2#,3#198808-199001

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-28011iYR22,31..DLX;YR29,32..USA198808-199001

main69630-28021iYR22,31..DLX;YR29,32..USA; YR22,31..LE198808-199001

W(POWER DOOR LOCK)

main69630-28031iYR29,32..CND198808-199001

69650ACABLE ASSY, SLIDE DOOR LOCK CONTROL

main69650-28010iYR22,31;YR29,32..USA198808-199001

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-28010iYR2#,3#198808-199001

9011906290

main90119-06290

9011908550

main90119-08550

9015960268

main90159-60268

9015980027

main90159-80027

9017906070

main90179-06070

9048010102

main90480-10102

9095901064

main90959-01064

9165140612

main91651-40612

9331116016

main93311-16016

22 parts on this diagram · 1 diagram in section
