FLOOR MAT & SILENCER PAD

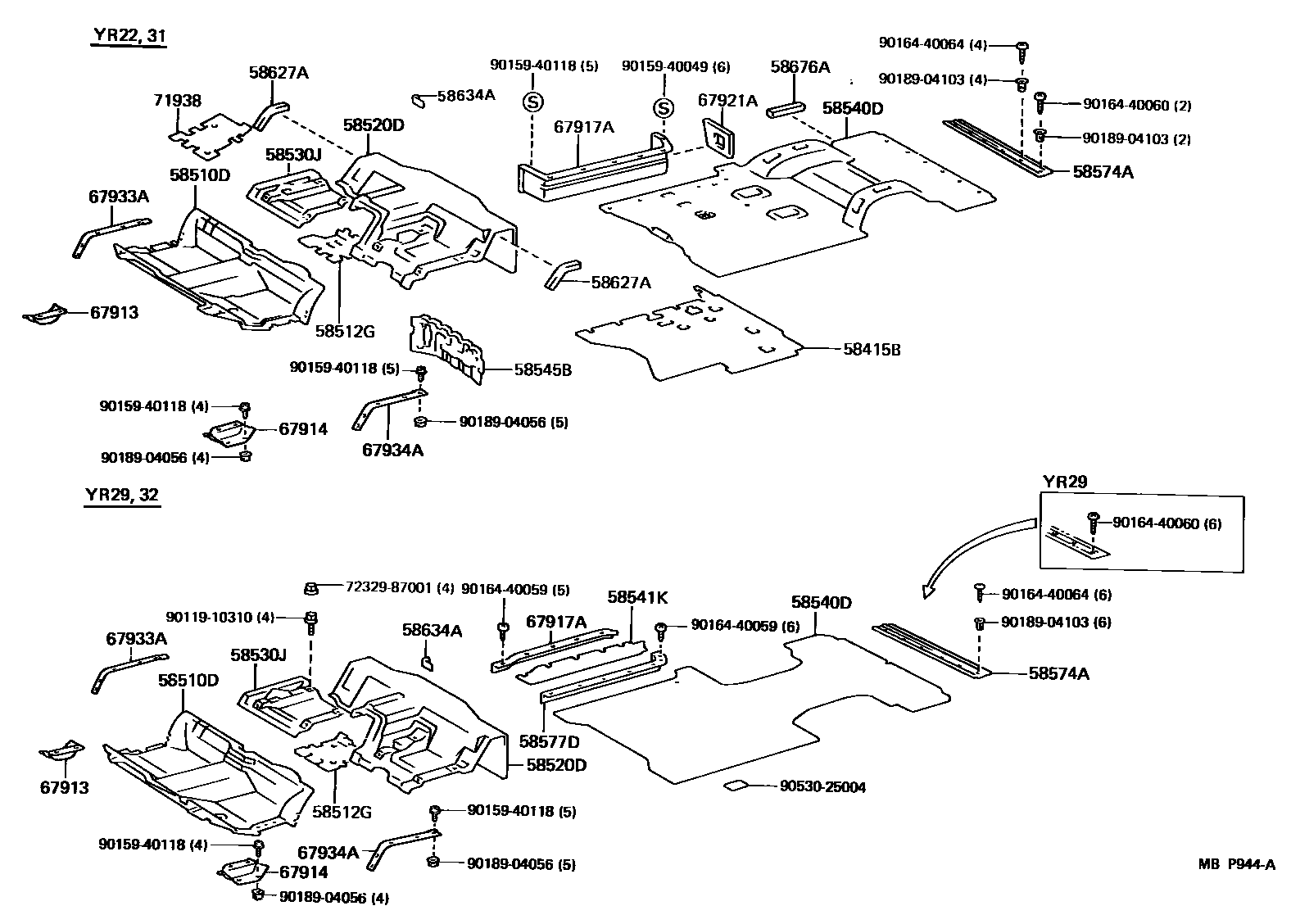

Parts diagram
58415BBOARD, REAR FLOOR, NO.1
main58415-28041i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE)
main58415-28051i198808-199001
58510DCARPET ASSY, FLOOR, FRONT
main58510-28023-03i198808-199001
GRAY,TRIM1#
main58510-28023-04i198808-199001
BLUE,TRIM8#
main58510-28023-16i198808-199001
SABLE,TRIM4#
main58510-28063-03i198808-199001
W(ICE COOL BOX),GRAY,TRIM1#
main58510-28063-04i198808-199001
W(ICE COOL BOX),BLUE,TRIM8#
main58510-28063-16i198808-199001
W(ICE COOL BOX),SABLE,TRIM4#
main58510-28073-03i198808-199001
W(5 SPEAKER & ICE COOL BOX),GRAY,TRIM1#
main58510-28073-04i198808-199001
W(5 SPEAKER & ICE COOL BOX),BLUE,TRIM8#
main58510-28073-16i198808-199001
W(5 SPEAKER & ICE COOL BOX),SABLE,TRIM4#
main58510-28082-04i198808-199001
BLUE,TRIM8#
main58510-28082-13i198808-199001
SHADOW GRAY,TRIM1#
main58510-28082-16i198808-199001
SABLE,TRIM4#
main58510-28092-04i198808-199001
W(ICE COOL BOX),BLUE,BLUE,TRIM8#; W(ICE COOL BOX),BLUE,TRIM8#
main58510-28092-13i198808-199001
W(ICE COOL BOX),SHADOW GRAY,SHADOW GRAY,TRIM1#; W(ICE COOL BOX),SHADOW GRAY,TRIM1#
main58510-28092-16i198808-199001
W(ICE COOL BOX),SABLE,SABLE,TRIM4#; W(ICE COOL BOX),SABLE,TRIM4#
main58510-28112-03i198808-199001
W(CRUISE CONTROL & ICE COOL BOX),SHADOW GRAY,TRIM1#
main58510-28112-04i198808-199001
W(CRUISE CONTROL & ICE COOL BOX),BLUE,TRIM8#
main58510-28112-16i198808-199001
W(CRUISE CONTROL & ICE COOL BOX),SABLE,TRIM4#
main58510-28122-03i198808-199001
SHADOW GRAY,TRIM1#
main58510-28122-04i198808-199001
W(CRUISE CONTROL & ICE COOL BOX & SPEAKER),BLUE,BLUE,TRIM8#; W(ICE COOL BOX),BLUE,TRIM8#
main58510-28122-16i198808-199001
W(CRUISE CONTROL & ICE COOL BOX & SPEAKER),SABLE,SABLE,TRIM4#; W(ICE COOL BOX SPEAKER),SABLE,SABLE,TRIM4#
main58510-28132-03i198808-199001
W(CRUISE CONTROL),SHADOW GRAY,TRIM1#
main58510-28132-04i198808-199001
W(CRUISE CONTROL),BLUE,TRIM8#
main58510-28132-16i198808-199001
W(CRUISE CONTROL),SABLE,TRIM4#
main58510-28141-03i198808-199001
SHADOW GRAY,TRIM1#
main58510-28141-04i198808-199001
BLUE,TRIM8#
main58510-28141-16i198808-199001
SABLE,TRIM4#
main58510-28151-03i198808-199001
W(CRUISE CONTROL),SHADOW GRAY,TRIM1#
main58510-28151-04i198808-199001
W(CRUISE CONTROL),BLUE,TRIM8#
main58510-28151-16i198808-199001
W(CRUISE CONTROL),SABLE,TRIM4#
main58510-28161-03i198808-199001
W(CRUISE CONTROL & ICE COOL BOX),SHADOW GRAY,TRIM1#
main58510-28161-04i198808-199001
W(CRUISE CONTROL & ICE COOL BOX),BLUE,TRIM8#
main58510-28161-16i198808-199001
W(CRUISE CONTROL & ICE COOL BOX),SABLE,TRIM4#
58512GSILENCER, FRONT FLOOR, NO.2
main58512-28010i198808-199001
main58512-87005i198808-199001
58520DMAT ASSY, FRONT FLOOR, FRONT NO.2
main58520-28012-03i198808-198810
SHADOW GRAY,TRIM1#
main58520-28013-03i198810-199001
SHADOW GRAY,TRIM1#
main58520-28013-04i198810-199001
BLUE,TRIM8#
main58520-28013-06i198810-199001
SABLE,TRIM4#
main58520-28033-03i198808-198810
SHADOW GRAY,TRIM1#
main58520-28034-03i198810-199001
SHADOW GRAY,TRIM1#
main58520-28034-04i198810-199001
BLUE,TRIM8#
main58520-28034-06i198810-199001
SABLE,TRIM4#
main58520-28043-03i198808-198810
SHADOW GRAY,TRIM1#; W(REAR HEATER),SHADOW GRAY,TRIM1#
main58520-28043-16i198808-198810
SABLE,TRIM4#
main58520-28044-03i198810-199001
SHADOW GRAY,TRIM1#; W(REAR HEATER),SHADOW GRAY,TRIM1#
main58520-28044-04i198810-199001
BLUE,TRIM8#; W(REAR HEATER),BLUE,TRIM8#
main58520-28044-06i198810-199001
SABLE,TRIM4#; W(REAR HEATER),SABLE,TRIM4#
main58520-28093-03i198808-198810
W(DUAL AIR CONDITIONER),SHADOW GRAY,TRIM1#
main58520-28094-03i198810-199001
W(DUAL AIR CONDITIONER),SHADOW GRAY,TRIM1#
main58520-28094-04i198810-199001
W(DUAL AIR CONDITIONER),BLUE,TRIM8#
main58520-28094-06i198810-199001
W(DUAL AIR CONDITIONER),SABLE,TRIM4#
main58520-28103-04i198808-198810
BLUE,TRIM8#; W(REAR HEATER),BLUE,TRIM8#
main58520-28103-13i198808-198810
SHADOW GRAY,SHADOW GRAY,TRIM1#; W(REAR HEATER),SHADOW GRAY,SHADOW GRAY,TRIM1#
main58520-28103-16i198808-198810
SABLE,SABLE,TRIM4#; W(REAR HEATER),SABLE,SABLE,TRIM4#
main58520-28104-03i198810-199001
SHADOW GRAY,TRIM1#; W(REAR HEATER),SHADOW GRAY,TRIM1#
main58520-28104-04i198810-199001
BLUE,TRIM8#; W(REAR HEATER),BLUE,TRIM8#
main58520-28104-06i198810-199001
SABLE,TRIM4#; W(REAR HEATER),SABLE,TRIM4#
main58520-28113-04i198808-198810
BLUE,TRIM8#
main58520-28113-13i198808-198810
SHADOW GRAY,SHADOW GRAY,TRIM1#
main58520-28113-16i198808-198810
SABLE,SABLE,TRIM4#
main58520-28114-03i198810-199001
SHADOW GRAY,TRIM1#
main58520-28114-04i198810-199001
BLUE,TRIM8#
main58520-28114-06i198810-199001
SABLE,TRIM4#
main58520-28123-04i198808-198810
W(DUAL AIR CONDITIONER),BLUE,TRIM8#
main58520-28123-13i198808-198810
W(DUAL AIR CONDITIONER),SHADOW GRAY,SHADOW GRAY,TRIM1#
main58520-28123-16i198808-198810
W(DUAL AIR CONDITIONER),SABLE,SABLE,TRIM4#
main58520-28124-03i198810-199001
W(DUAL AIR CONDITIONER),SHADOW GRAY,TRIM1#
main58520-28124-04i198810-199001
W(DUAL AIR CONDITIONER),BLUE,TRIM8#
main58520-28124-06i198810-199001
W(DUAL AIR CONDITIONER),SABLE,TRIM4#
main58520-28141-03i198808-198810
W(REAR HEATER),SHADOW GRAY,TRIM1#
main58520-28142-03i198810-199001
W(REAR HEATER),SHADOW GRAY,TRIM1#
main58520-28142-04i198810-199001
W(REAR HEATER),BLUE,TRIM8#
main58520-28142-06i198810-199001
W(REAR HEATER),SABLE,TRIM4#
58530JCARPET ASSY, FLOOR, CENTER
main58530-28102-03i198808-199001
SHADOW GRAY,TRIM1#
main58530-28102-04i198808-199001
BLUE,TRIM8#
main58530-28102-16i198808-199001
SABLE,TRIM4#
main58530-28112-03i198808-199001
W(SEPARATE SEAT & SEPARABLE HEADREST),SHADOW GRAY,TRIM1#
main58530-28112-04i198808-199001
W(SEPARATE SEAT & SEPARABLE HEADREST),BLUE,TRIM8#
main58530-28112-16i198808-199001
W(SEPARATE SEAT & SEPARABLE HEADREST),SABLE,TRIM4#
main58530-28122-04i198808-199001
BLUE,TRIM8#
main58530-28122-13i198808-199001
SHADOW GRAY,TRIM1#
main58530-28122-16i198808-199001
SABLE,TRIM4#
main58530-28132-03i198808-199001
SHADOW GRAY,TRIM1#
main58530-28132-04i198808-199001
BLUE,TRIM8#
main58530-28132-16i198808-199001
SABLE,TRIM4#
58540DCARPET ASSY, FLOOR, REAR
main58514-28110-03i198808-199001
SHADOW GRAY,TRIM1#
main58514-28110-04i198808-199001
BLUE,TRIM8#
main58514-28110-16i198808-199001
SABLE,TRIM4#
main58514-95D00-03i198808-199001
SHADOW GRAY,TRIM1#
main58514-95D00-04i198808-199001
BLUE,TRIM8#
main58514-95D00-16i198808-199001
SABLE,TRIM4#
main58540-28095-03i198808-199001
SHADOW GRAY,TRIM1#
main58540-28095-04i198808-199001
BLUE,TRIM8#
main58540-28095-06i198808-199001
SABLE,TRIM4#
main58540-28104-03i198808-199001
SHADOW GRAY,TRIM1#
main58540-28104-04i198808-199001
BLUE,TRIM8#
main58540-28104-06i198808-199001
SABLE,TRIM4#
main58540-28120-04i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8#
main58540-28120-13i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#
main58540-28120-16i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4#
58541KSILENCER, MAT STEP, RH
main58541-87002-03i198808-199001
SHADOW GRAY,TRIM1#
main58541-87002-04i198808-199001
BLUE,TRIM8#
main58541-87002-16i198808-199001
SABLE,TRIM4#
58545BSILENCER, HEADER PANEL
main58545-87001i198808-199001
58574APLATE, REAR FLOOR MAT SUPPORT, REAR
main58574-87001i198808-199001
main58574-87004i198808-199001
58577DPLATE, REAR FLOOR MAT SUPPORT SIDE, RH
main58577-87001i198808-199001
58627APAD, CENTER FLOOR SILENCER, REAR
main58627-28010i198808-199001
RH
main58628-28010i198808-199001
LH
58634APLATE, ENGINE SERVICE HOLE MAT, RH
main58634-87001i198808-199001
58676APAD, REAR FLOOR SILENCER
main58676-28080×2i198808-199001
67913PLATE, FRONT DOOR SCUFF, RH
main67913-87004-13i198808-199001
SHADOW GRAY,TRIM1#
main67913-87004-14i198808-199001
BLUE,TRIM8#
main67913-87004-16i198808-199001
BROWN,TRIM4#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-87001-13i198808-199001
SHADOW GRAY,TRIM1#
main67914-87001-14i198808-199001
BLUE,TRIM8#
main67914-87001-16i198808-199001
BROWN,TRIM4#
67917APLATE, REAR DOOR SCUFF, RH
main67910-28020-03i198808-199001
SHADOW GRAY,TRIM1#
main67910-28020-04i198808-199001
BLUE,TRIM8#
main67910-28020-16i198808-199001
SABLE,TRIM4#
main67910-95D00-04i198808-199001
BLUE,TRIM8#
main67910-95D00-16i198808-199001
SABLE,TRIM4#
main67917-87001i198808-199001
67921APAD, CENTER DOOR SCUFF PLATE
main67921-95D02i198808-199001
67933APLATE, FRONT DOOR SCUFF, REAR RH
main67933-87002-13i198808-199001
SHADOW GRAY,TRIM1#
main67933-87002-14i198808-199001
BLUE,TRIM8#
main67933-87002-16i198808-199001
SABLE,TRIM4#
67934APLATE, FRONT DOOR SCUFF, REAR LH
main67934-87002-13i198808-199001
SHADOW GRAY,TRIM1#
main67934-87002-14i198808-199001
BLUE,TRIM8#
main67934-87002-16i198808-199001
SABLE,TRIM4#
71938PAD, ENGINE SERVICE HOLE COVER, NO.2
main71938-87003i198808-199001
7232987001COVER, SEAT ADJUSTER BOLT
main72329-87001
9011910310
main90119-10310
9015940049
main90159-40049
9015940118
main90159-40118
9016440059
main90164-40059
9016440060
main90164-40060
9016440064
main90164-40064
9018904056
main90189-04056
9018904103
main90189-04103
9053025004
main90530-25004

30 parts on this diagram · 1 diagram in section
