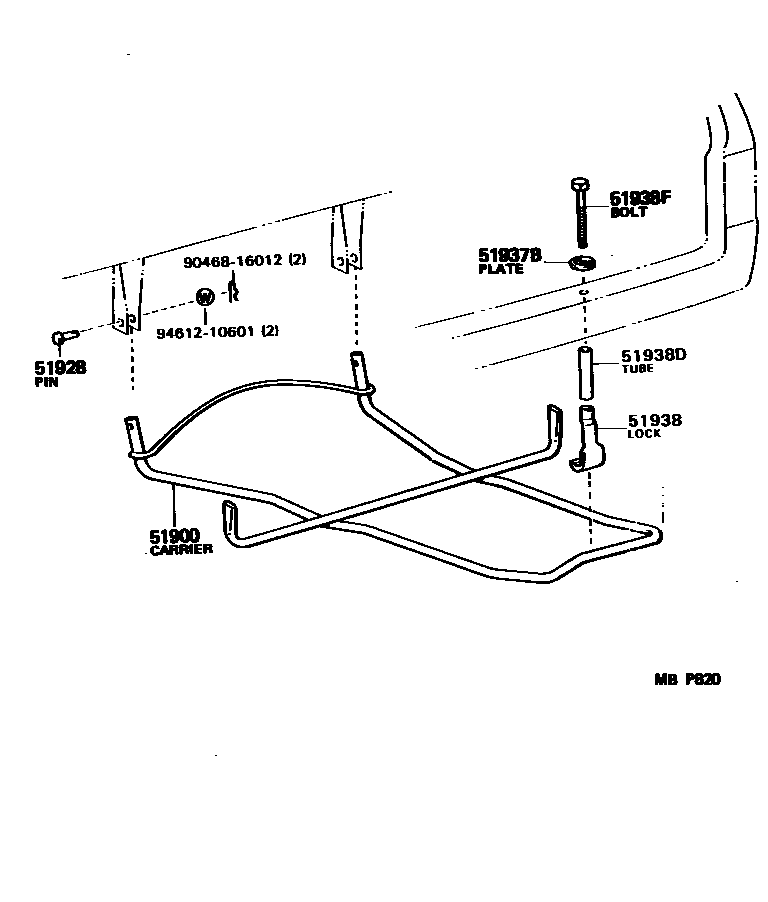

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-28091iYR22198808-199001

main51900-28100iYR29198808-199001

main51900-28120iYR3#198808-199001

51928PIN, SPARE WHEEL CARRIER

main90240-06002×2iYR2#,3#198808-199001

51937BPLATE, SPARE WHEEL CARRIER LOCK

main51937-26010iYR2#,3#198808-199001

51938LOCK, SPARE WHEEL CARRIER

main51938-27070iYR2#,3#198808-199001

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-17033iYR29198808-199001

main90440-17036iYR3#198808-199001

main90440-17037iYR29198808-199001

W(ALL SEASON TIRE)

main90440-17038iYR22198808-199001

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main90101-12007iYR22198808-199001

main90101-12101iYR29198808-199001

main90101-12124iYR29198808-199001

W(ALL SEASON TIRE)

main90101-12125iYR3#198808-199001

9046816012

main90468-16012

9461210601

main94612-10601

8 parts on this diagram · 1 diagram in section
