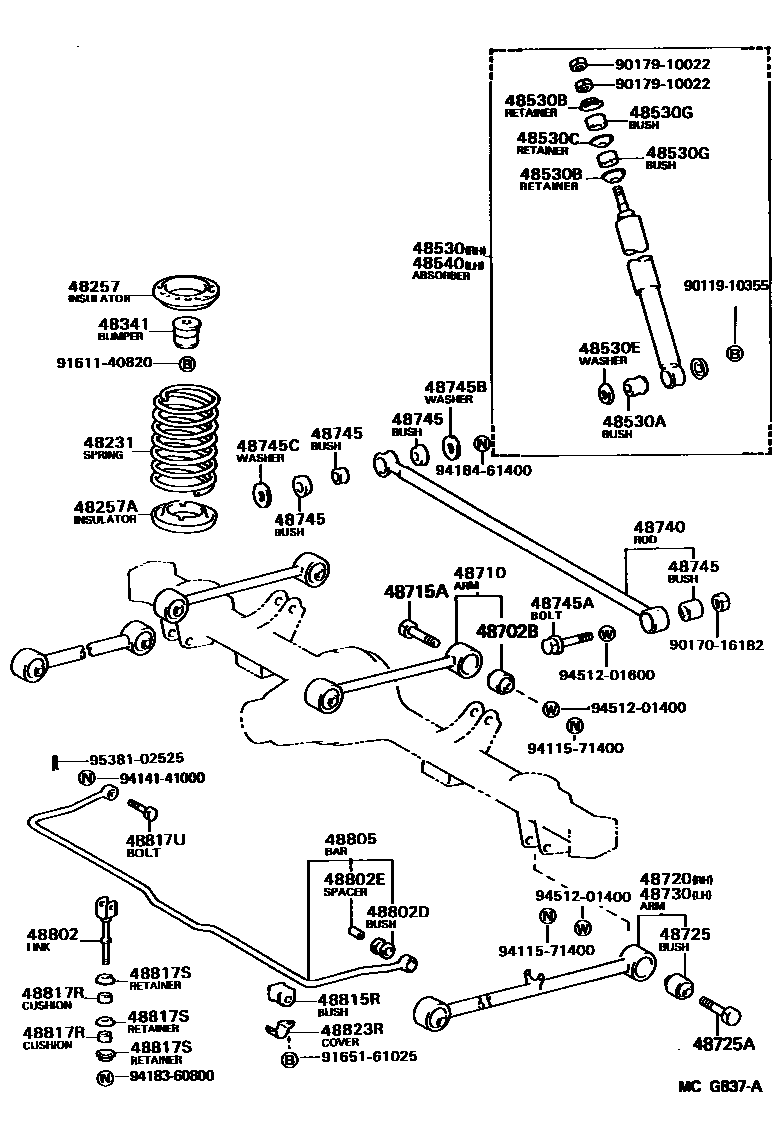

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1

48231SPRING, COIL, REAR

main48231-28120×2iYR22198808-199001

main48231-28180×2iYR3#198808-199001

48257INSULATOR, REAR COIL SPRING

main48257-28011×2iYR22,3#198808-199001

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-28010×2iYR22,3#198808-199001

48341BUMPER, REAR SPRING

main48341-28040×2iYR22,3#198808-199001

main48341-35030×2iYR29198808-199001

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80018iYR29198808-199001

sub48531-80594

main48531-80225iYR22198808-199001

sub48531-80297

main48531-80260iYR3#198808-199001

sub48531-80622

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16004×2iYR29198808-199001

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02002×2iYR22,3#198808-199001

LWR

main90948-02045×2iYR22,3#198808-199001

UPR

main90948-03004×4iYR29198808-199001

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02050×2iYR22,3#198808-199001

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iYR22198808-199001

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90540-10002×2iYR22,3#198808-199001

LWR

main90540-10005×2iYR22,3#198808-199001

UPR

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80018iYR29198808-199001

sub48531-80594

main48531-80225iYR22198808-199001

sub48531-80297

main48531-80260iYR3#198808-199001

sub48531-80622

48702BBUSH SUB-ASSY, TRAILING ARM, NO.1

main48702-28031×4iYR22,3#198808-199001

sub48702-14020

48710ARM ASSY, UPPER CONTROL

main48710-28030×2iYR3#198808-199001

main48710-28040×2iYR22198808-199001

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90105-14016×4iYR22,3#198808-199001

48720ARM ASSY, LOWER CONTROL, RH

main48720-28021iYR22198808-199001

main48720-28030iYR3#198808-199001

48725BUSH, LOWER CONTROL ARM

main48702-28041×2iYR22,3#198808-199001

48725ABOLT(FOR LOWER CONTROL ARM)

main90105-14017×4iYR22,3#198808-199001

48730ARM ASSY, LOWER CONTROL, LH

main48730-28021iYR22198808-199001

main48730-28030iYR3#198808-199001

48740ROD ASSY, REAR LATERAL CONTROL

main48740-28010iYR22198808-199001

main48740-28030iYR3#198808-199001

sub48740-28020

48745BUSH, LATERAL CONTROL ROD

main48706-28010iYR22,3#198808-199001

ROD X BODY

main90385-20001×2iYR22,3#198808-199001

ROD X HOUSING,L=15

main90386-20001iYR22,3#198808-199001

ROD X HOUSING,L=12

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90105-16006iYR22,3#198808-199001

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-15019iYR22,3#198808-199001

48745CWASHER, LATERAL CONTROL ROD CUSHION

main94612-12000iYR22,3#198808-199001

48802LINK SUB-ASSY, STABILIZER

main48802-28010×2iYR22198808-199001

main48802-28020×2iYR3#198808-199001

48802DBUSH, STABILIZER LINK

main90385-11021×2iYR22,3#198808-199001

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275×2iYR22,3#198808-199001

48805BAR SUB-ASSY, REAR STABILIZER

main48805-28010iYR3#198808-199001

main48805-28040iYR22198808-199001

48815RBUSH, STABILIZER(FOR REAR)

main48815-30040×2iYR22198808-199001

main48815-30060×2iYR3#198808-199001

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12010×4iYR22,3#198808-199001

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024×4iYR22,3#198808-199001

T=1.2

main90948-02025×2iYR22,3#198808-199001

T=1.0

48817UBOLT(FOR REAR STABILIZER)

main90102-10015×2iYR22,3#198808-199001

48823RCOVER, STABILIZER LINK(FOR REAR)

main48823-28020×2iYR22,3#198808-199001

9011910355

main90119-10355

9017016182

main90170-16182

9017910022

main90179-10022

9161140820

main91611-40820

9165161025

main91651-61025

9411571400

main94115-71400

9414141000

main94141-41000

9418360800

main94183-60800

9418461400

main94184-61400

9451201400

main94512-01400

9451201600

main94512-01600

9538102525

main95381-02525

44 parts on this diagram · 4 diagrams in section
