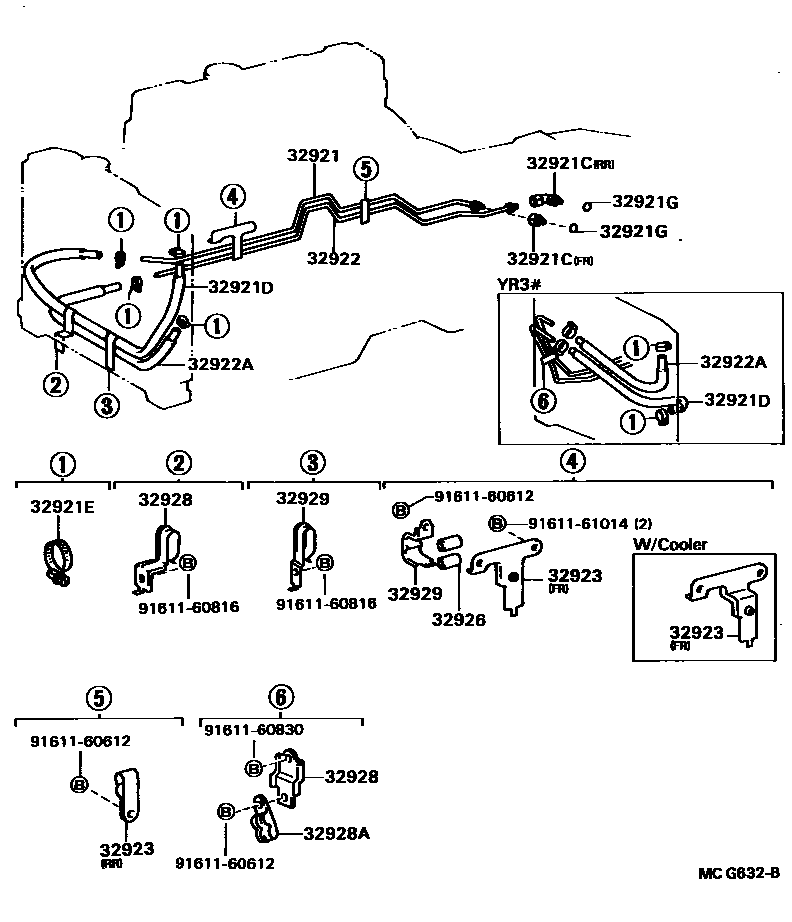

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-28040×2iYR2#..4FC198808-199001

main32921-28050×2iYR3#..4FC198808-199001

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021iYR2#..4FC198808-199001

FR

main90407-14008iYR3#..4FC198808-199001

FR

main90407-16010iYR2#,3#..4FC198808-199001

RR

32921DHOSE(FOR OIL COOLER INLET)

main32941-28080iYR2#..4FC198808-199001

main32941-28120iYR3#..4FC198808-199001

32921ECLAMP, HOSE(FOR OIL COOLER)

main90467-13039×4iYR2#,3#..4FC198808-199001

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iYR2#,3#..4FC198808-199001

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-28040×2iYR2#..4FC198808-199001

main32922-28050×2iYR3#..4FC198808-199001

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-28100iYR2#..4FC198808-199001

main32942-28130iYR3#..4FC198808-199001

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-28050iYR2#,3#..4FC198808-199001

FR

main32923-28060iYR22,31..4FC..USA; YR29,32..4FC;YR22,31..4FC..CND198808-199001

W(AIR CONDITIONER),FR

main90461-08628iYR2#,3#..4FC198808-199001

RR

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×2iYR2#,3#..4FC198808-199001

L=35,ID=10

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-28010iYR3#..4FC198808-199001

main90949-01430iYR2#..4FC198808-199001

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90461-08628iYR3#..4FC198808-199001

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-28010iYR2#..4FC; YR3#..4FC198808-199001

RR

main90949-01392iYR2#..4FC198808-199001

FR

9161160612

main91611-60612

9161160816

main91611-60816

9161160830

main91611-60830

9161161014

main91611-61014

16 parts on this diagram · 1 diagram in section
