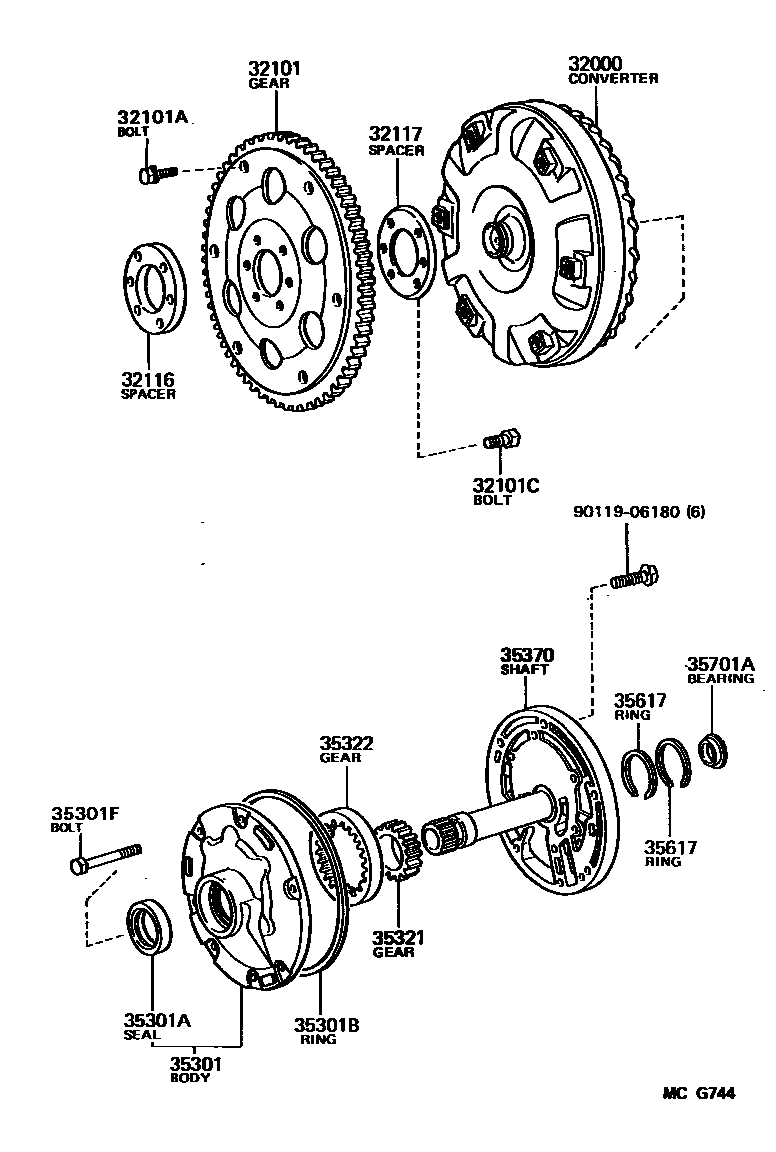

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-22051iYR2#,3#..4FC198808-199001

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-28010iYR2#,3#..4FC198808-199001

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90119-08519iYR2#,3#..4FC198808-199001

*8-1.25PX10.5-5.6,L=10.5,WHITE

main90119-08520×5iYR2#,3#..4FC198808-199001

*8-1.25PX10.5-6.5,L=10.5,YELLOW

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10046×6iYR2#,3#..4FC198808-199001

*10-1.25PX23-15.5

32116SPACER, DRIVE PLATE, FRONT

main32116-28010iYR2#,3#..4FC198808-199001

32117SPACER, DRIVE PLATE, REAR

main32117-20030iYR2#,3#..4FC198808-199001

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iYR2#,3#..4FC198808-199001

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iYR2#,3#..4FC198808-199001

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iYR2#,3#..4FC198808-199001

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08137×7iYR2#,3#..4FC198808-199001

35321GEAR, FRONT OIL PUMP DRIVE

main35321-14010iYR2#,3#..4FC198808-199001

T=17.286-17.235

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-14010iYR2#,3#..4FC198808-199001

T=17.286-17.235

35370SHAFT ASSY, STATOR

main35370-14012iYR2#,3#..4FC198808-199001

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010×2iYR2#,3#..4FC198808-199001

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-25003iYR2#,3#..4FC198808-199001

9011906180

main90119-06180

16 parts on this diagram · 1 diagram in section
