TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

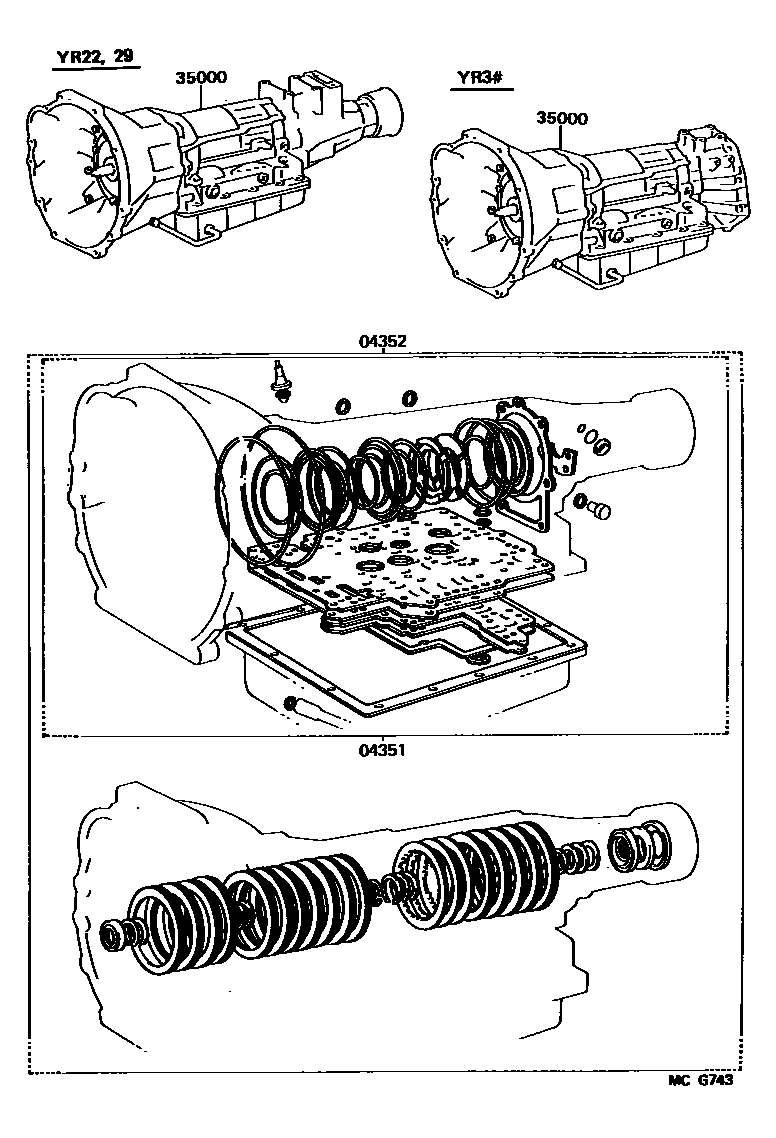

Parts diagram

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-30110i198808-199001

04352KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04352-35050i198808-199001

35000TRANSMISSION ASSY, AUTOMATIC

main35000-28190i198808-199001

main35000-28230i198808-199001

3 parts on this diagram · 1 diagram in section
