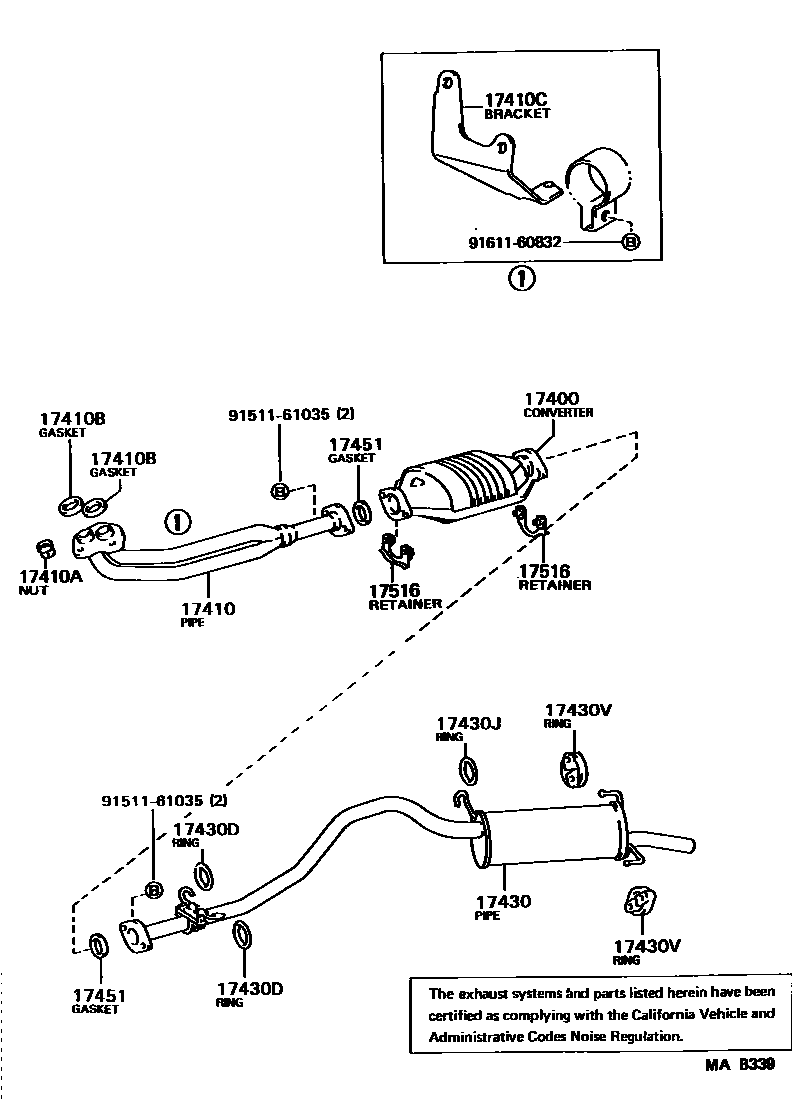

EXHAUST PIPE

0001 1 0002 1 0003 1

17400CONVERTER ASSY, W/CATALYST

main18450-43051i4YEC..YR3#198808-199001

main18450-73081i4YEC..YR2#198808-199001

17410PIPE ASSY, EXHAUST, FRONT

main17401-73090i4YEC..YR2#198808-199001

main17410-73351i4YEC..YR3#198808-199001

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i4YEC..YR2#,3#198808-199001

17410BGASKET, EXHAUST PIPE

main90917-06001×2i4YEC..YR2#,3#198808-198811

main90917-06038×2i4YEC..YR2#,3#198811-199001

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-73120i4YEC..YR2#198808-199001

main17571-73131i4YEC..YR3#198808-199001

17430PIPE ASSY, EXHAUST, TAIL

main17405-73111i4YEC..YR29198808-199001

main17405-73121i4YEC..YR3#198808-199001

main17405-73131i4YEC..YR22198808-199001

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main17566-35010×2i4YEC..YR29198808-199001

main90301-33001×2i4YEC..YR22198808-199001

17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)

main90301-34207i4YEC..YR22,3#198808-199001

main90301-36002i4YEC..YR29198808-199001

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main17561-73020×2i4YEC..YR29198808-199001

main17563-35020×2i4YEC..YR22198808-198902

main17565-15010×2i4YEC..YR3#198808-198902

17451GASKET, EXHAUST PIPE

main90917-06012i4YEC..YR2#,3#198808-198811

RR

main90917-06023i4YEC..YR2#,3#198808-198811

FR

main90917-06041i4YEC..YR2#,3#198811-199001

FR

main90917-06044i4YEC..YR29198902-199001

RR

main90917-06045i4YEC..YR2#,3#198811-198902

RR

main90917-06047i4YEC..YR2#,3#198901-198902

RR

17516RETAINER, EXHAUST PIPE, NO.2

main18495-71010i4YEC..YR22,3#; 4YEC..YR29198808-199001

9151161035

main91511-61035

9161160832

main91611-60832

13 parts on this diagram · 3 diagrams in section
