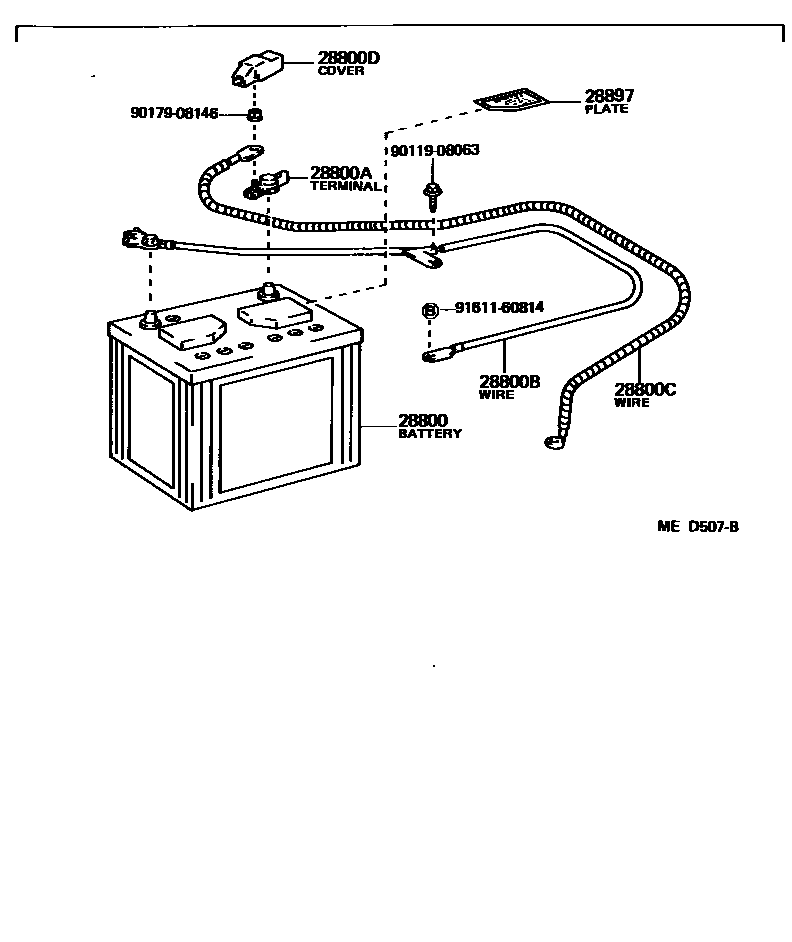

BATTERY & BATTERY CABLE

28800BATTERY

main28800-14030i3YEC..YR21..USA198308-198408

50D20R,50D20R-MF

main28800-15010i3YEC..YR21;3YEC..YR27..USA198308-198808

55D23R,55D23R-MF

main28800-43070i3YEC..YR27..CND198311-198408

55D23L-MF

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i3YEC,4YEC..YR2#,3#198308-198808

28800BCABLE, BATTERY TO GROUND

main82123-28010i3YEC..YR21;3YEC..YR27..USA198308-198808

main82123-28030i3YEC..YR27..CND198311-198408

main82123-95D05i4YEC..YR3#198608-198808

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-28010i3YEC..YR21;3YEC..YR27..USA198308-198408

main82122-28030i3YEC..YR27..CND198311-198408

main82122-28040i3YEC,4YEC..YR2#198408-198808

main82122-95D05i4YEC..YR3#198608-198808

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i3YEC,4YEC..YR2#,3#198308-198808

28897PLATE, BATTERY CAUTION

main28897-35010i3YEC..YR2#..CND198308-198502

main28897-38010i3YEC,4YEC..YR2#,3#..CND198502-198808

main28898-26010i3YEC,4YEC..YR2#,3#..USA198308-198808

9011908063

main90119-08063

9017908146

main90179-08146

9161160814

main91611-60814

9 parts on this diagram · 1 diagram in section
