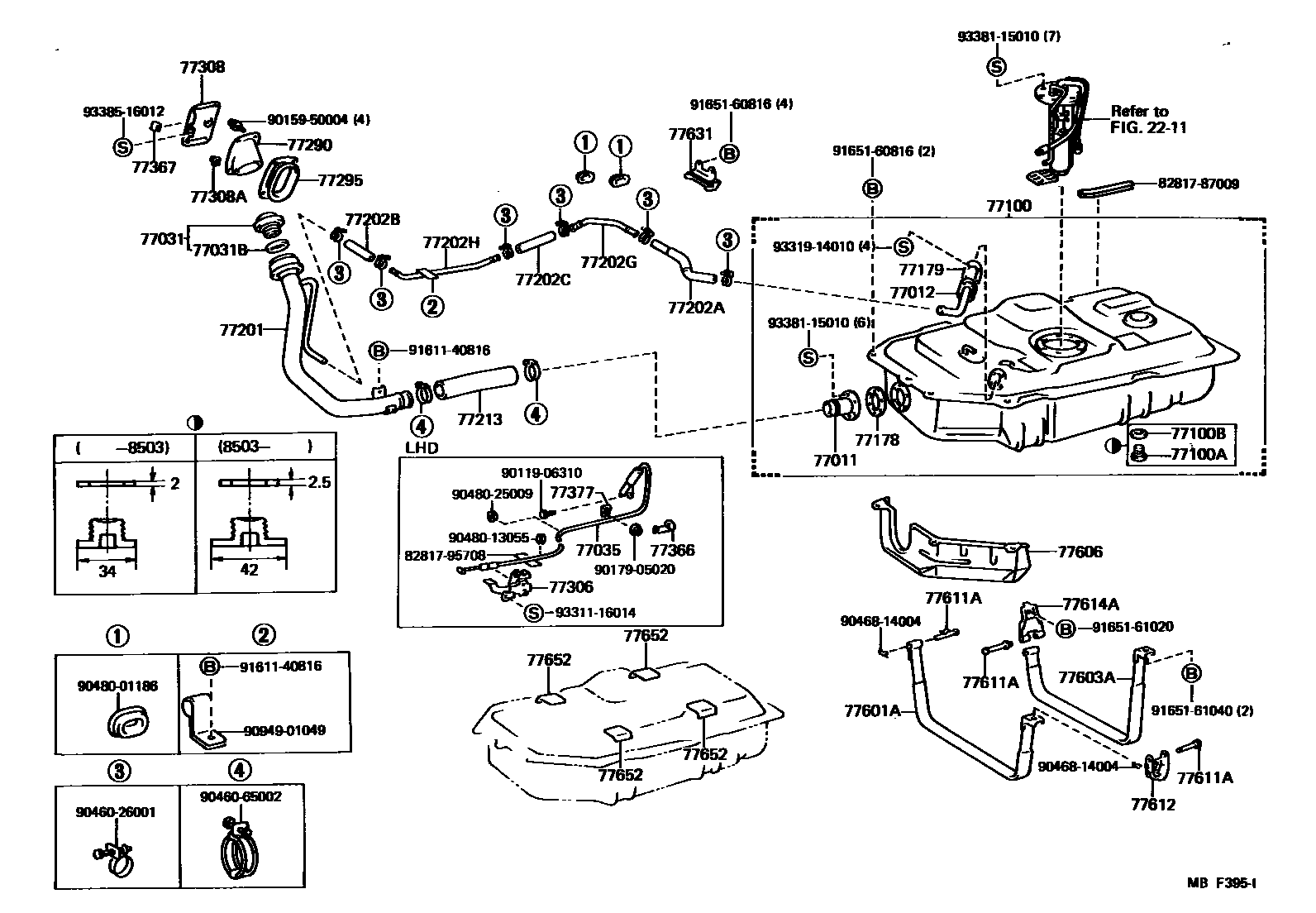

FUEL TANK & TUBE
2211
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77031BGASKET (FOR FUEL TANK CAP)
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100BGASKET(FOR FUEL TANK)
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179RETAINER, FUEL TANK MOUNTING, FRONT
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
L=290
77202BHOSE, FUEL, NO.2 (FOR BREATHER TUBE)
77202CHOSE, FUEL, NO.3 (FOR BREATHER TUBE)
L=130
77202GTUBE, FUEL, NO.2 (FOR BREATHER TUBE)
77202HTUBE, FUEL, NO.3 (FOR BREATHER TUBE)
sub77014-28010
77213HOSE, FUEL TANK SUB INLET
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77295SHIELD, FUEL FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77308ACUSHION(FOR FUEL INLET BOX COVER)
77366SPRING, FUEL FILLER OPENING LID HINGE
77367STOPPER, FUEL FILLER OPENING LID
77377RETAINER, FUEL FILLER OPENING LID LOCK
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77603ABAND SUB-ASSY, FUEL TANK, NO.2
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611APIN (FOR FUEL TANK BAND)
RR RH
FR RH
FR LH
77612BRACKET SUB-ASSY, FUEL TANK
77614ABAND, FUEL TANK, NO.2 RH
77652CUSHION, FUEL TANK, NO.1
70X70
70X110
8281787009PROTECTOR, WIRING HARNESS, NO.1
main82817-87009
8281795708PROTECTOR, WIRING HARNESS, NO.1
main82817-95708
9011906310
main90119-06310
9015950004
main90159-50004
9017905020
main90179-05020
9046026001
main90460-26001
9046065002
main90460-65002
9046814004
main90468-14004
9048001186
main90480-01186
9048013055
main90480-13055
9048025009
main90480-25009
9094901049
main90949-01049
9161140816
main91611-40816
9165160816
main91651-60816
9165161020
main91651-61020
9165161040
main91651-61040
9331116014
main93311-16014
9331914010
main93319-14010
9338115010
main93381-15010
9338516012
main93385-16012
54 parts on this diagram · 3 diagrams in section
