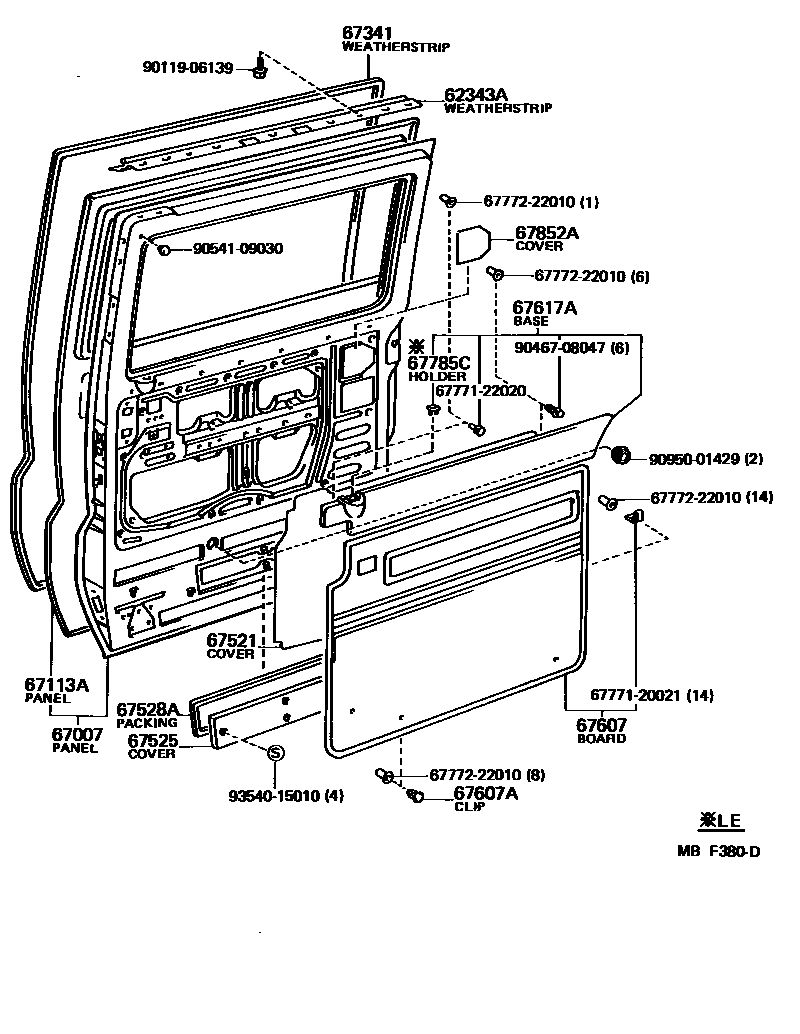

REAR DOOR PANEL & GLASS

62343AWEATHERSTRIP, SLIDE DOOR, NO.2

main62343-87001iYR2#,3#198308-198808

67007PANEL SUB-ASSY, SLIDE DOOR, RH

main67003-28020iYR27..CND198311-198406

main67003-28050iYR21..LE198308-198406

main67003-28060iYR21..DLX198308-198406

main67003-28070iYR21,22,31..LE; YR27,29..VSG..USA198406-198808

W/*EL

main67003-28090iYR27,29..VSG..CND198406-198808

main67003-28110iYR21,22,31..DLX; YR27,29..VSG..USA198406-198808

main67003-95D00iYR29,32..VSP..USA198508-198808

main67003-95D01iYR29,32..VSP..USA198508-198808

W/*EL

main67003-95D02iYR29,32..VSP..CND198508-198808

67113APANEL, SLIDE DOOR, OUTER RH

main67113-28020iYR29..VSG;YR21,22,27,31198401-198808

main67113-87001iYR2#198308-198401

main67113-95D00iYR29,32..VSP198508-198808

67341WEATHERSTRIP, SLIDE DOOR, RH

main67871-87001iYR2#,3#198308-198808

67521COVER SUB-ASSY, SLIDE DOOR PANEL, RH

main67851-87002iYR2#,3#198308-198808

67525COVER, SLIDE DOOR PANEL, LOWER

main67525-28010iYR2#,3#198308-198808

67528APACKING, SLIDE DOOR LOWER COVER

main67528-87001iYR2#,3#198308-198808

67607BOARD SUB-ASSY, SLIDE DOOR TRIM, RH

main67630-28030-05iYR21..DLX198308-198406

BEIGE,BEIGE,TRIM4#

main67630-28040-03iYR21..LE198308-198406

GRAY,GRAY,TRIM1#

main67630-28040-05iYR21..LE198308-198406

BEIGE,BEIGE,TRIM4#

main67630-28041-03iYR21..LE198406-198408

GRAY,GRAY,TRIM1#

main67630-28041-05iYR21..LE198406-198408

BEIGE,BEIGE,TRIM4#

main67630-28042-03iYR21..LE198408-198508

GRAY,GRAY,TRIM1#

main67630-28042-05iYR21..LE198408-198508

BEIGE,BEIGE,TRIM4#

main67630-28043-03iYR22..LE198508-198608

GRAY,GRAY,TRIM8#

main67630-28043-05iYR22,31..LE198508-198808

BEIGE,BEIGE,TRIM4#

main67630-28043-13iYR22,31..LE198608-198808

GRAY,SHADOW GRAY,TRIM1#

main67630-28050iYR27,29,32198311-198808

main67630-28060-05iYR21..DLX198406-198408

BEIGE,BEIGE,TRIM4#

main67630-28061-05iYR21..DLX198408-198508

BEIGE,BEIGE,TRIM4#

main67630-28062-03iYR22,31..DLX198708-198808

GRAY,GRAY,TRIM1#

main67630-28062-05iYR22,31..DLX198508-198808

BEIGE,BEIGE,TRIM4#

main67630-28070-03iYR22,31..LE198608-198808

W/SWIVEL SEAT,GRAY,SHADOW GRAY,TRIM1#

main67630-28070-05iYR22,31..LE198608-198808

W/SWIVEL SEAT,BEIGE,BEIGE,TRIM4#

67607ACLIP(FOR SLIDE DOOR TRIM BOARD)

main90467-12078-03×6iYR21..LE198308-198406

GRAY,GRAY,TRIM1#

main90467-12078-05×6iYR21198308-198406

BEIGE,BEIGE,TRIM4#

main90467-12078-13×8iYR22,31198708-198808

GRAY,SHADOW GRAY,TRIM1#

main90467-12078-22×8iYR21198408-198508

WINE,WINE,TRIM4#

main90467-12078-24×8iYR21..LE198406-198508

BLUE,BLUE,TRIM1#

main90467-12078-34×8iYR22..LE198508-198608

BLUE,BLUE,TRIM8#

main90467-12078-46×8iYR22,31198508-198808

BROWN,BROWN,TRIM4#

67617ABASE, REAR DOOR TRIM, RH

main62035-28010-03iYR21..LE198308-198508

GRAY,GRAY,TRIM1#

main62035-28010-05iYR21..LE198308-198408

BEIGE,BEIGE,TRIM4#

main62035-28010-13iYR22,31..LE198508-198808

GRAY,GRAY,TRIM1#,8#

main62035-28010-15iYR21..LE198408-198508

BEIGE,BEIGE,TRIM4#

main62035-28010-25iYR22,31..LE198508-198808

BEIGE,BEIGE,TRIM4#

main67617-28010iYR21..DLX198308-198408

BEIGE

main67617-28010-03iYR22,31..DLX198708-198808

GRAY,GRAY,TRIM1#

main67617-28010-15iYR21..DLX198408-198508

BEIGE,BEIGE,TRIM4#

main67617-28010-25iYR22,31..DLX198508-198808

BEIGE,BEIGE,TRIM4#

67785CHOLDER, DOOR LOCKING BUTTON COLLAR(FOR SLIDE DOOR)

main69751-87001iYR21,22,31..LE198308-198808

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67852-87001iYR2#,3#198308-198808

6777120021WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20021

6777122020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-22020

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9011906139

main90119-06139

9046708047

main90467-08047

9054109030

main90541-09030

9095001429

main90950-01429

9354015010

main93540-15010

20 parts on this diagram · 1 diagram in section
