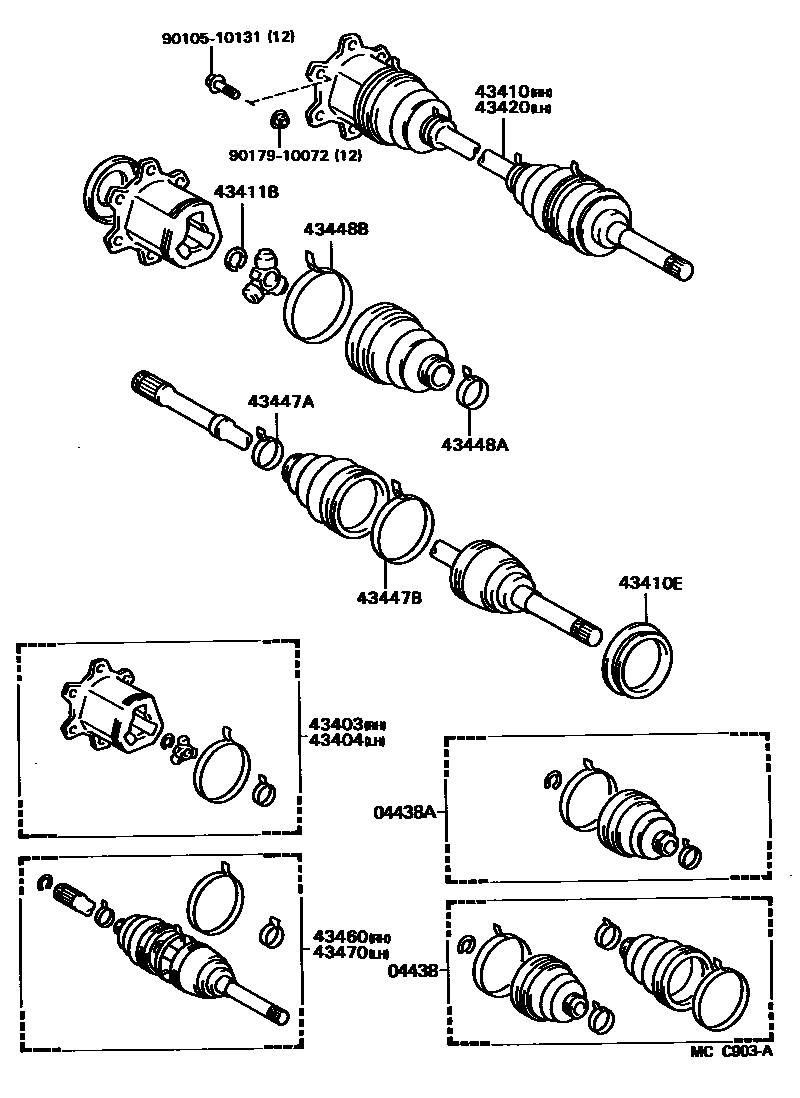

FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-28021×2iYR3#198608-198808

sub04438-28022

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-28011×2iYR3#198608-198808

sub04437-28021

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-29015iYR3#198608-198808

sub43403-28010

43404JOINT SET, FRONT AXLE INBOARD, LH

main43403-29015iYR3#198608-198808

sub43403-28010

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-28010iYR3#198608-198808

sub43430-28011

43410ECOVER, DUST (FOR FRONT DRIVE SHAFT)

main90304-76001×2iYR3#198608-198708

main90304-76002×2iYR3#198708-198808

sub90304-76005

sub90316-60004

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-26028×2iYR3#198608-198808

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-28010iYR3#198608-198808

sub43430-28011

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01221×2iYR3#198608-198808

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01135×2iYR3#198608-198808

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14010×2iYR3#198608-198808

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-30010×2iYR3#198608-198808

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-29055iYR3#198608-198808

sub43460-29056

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-29055iYR3#198608-198808

sub43460-29056

9010510131

main90105-10131

9017910072

main90179-10072

16 parts on this diagram · 1 diagram in section
