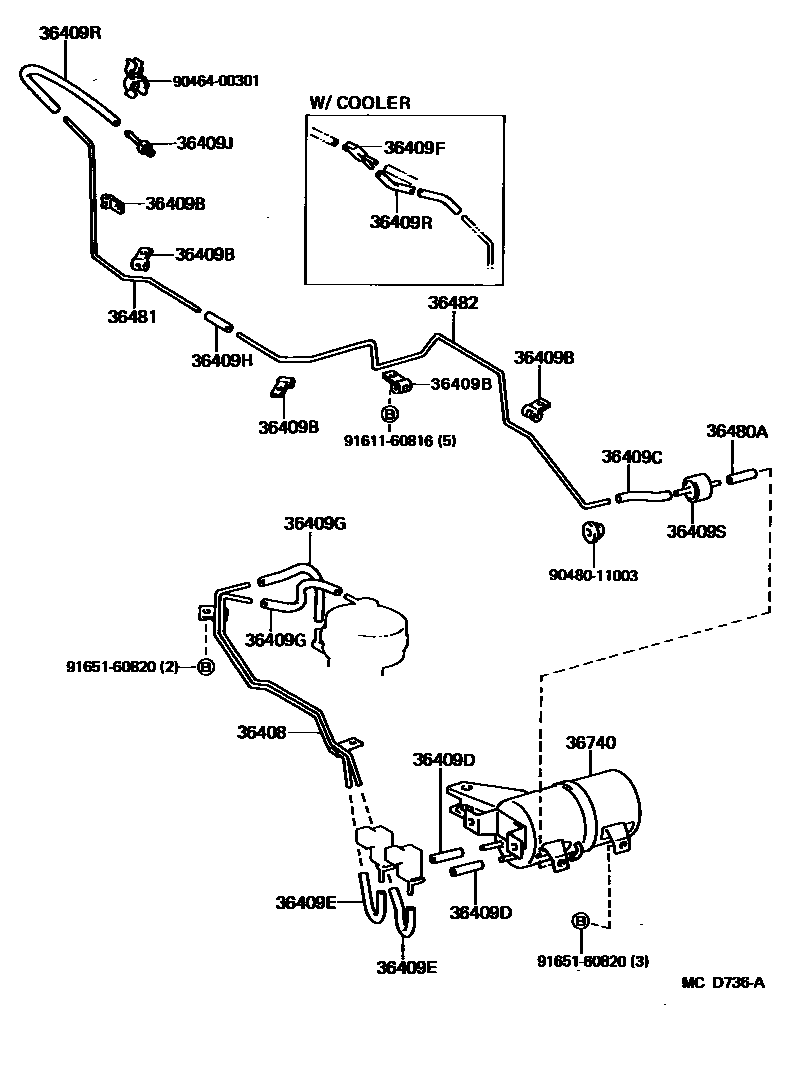

TRANSFER VACUUM PIPING

36408TUBE SUB-ASSY, TRANSFER VACUUM

main36408-28010iYR3#..4FC198608-198808

36409BCLAMP, VACUUM TUBE

main90461-06199×5iYR3#..4FC198608-198808

36409CHOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)

main90999-92002iYR3#..4FC198803-198808

L=300

main95411-19930iYR3#..4FC198608-198803

*H,L=300,MARK=#*

36409DHOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)

main90445-10025×2iYR3#..4FC198608-198808

L=40

36409EHOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)

main90445-10026×2iYR3#..4FC198608-198808

L=120

36409FWAY, 3, NO.1 (FOR FRONT DRIVE SHIFT)

main90413-04005iYR3#198608-198808

36409GHOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT)

main90447-10004×2iYR3#..4FC198608-198808

36409HHOSE, VACUUM, NO.5 (FOR FRONT DRIVE SHIFT)

main90999-92002iYR3#..4FC198803-198808

*H,L=180,MARK=#*

main95411-19930iYR3#..4FC198608-198803

*H,L=280,MARK=#*

36409JUNION (FOR FRONT DRIVE SHIFT)

main90404-51010iYR3#..4FC198608-198808

36409RHOSE, VACUUM, NO.10 (FOR FRONT DRIVE SHIFT)

main90999-92002iYR3#..4FC198803-198808

L=300

main95411-19930iYR3#..4FC198608-198803

*H,L=300,MARK=#*

36409SVALVE, CHECK (FOR FRONT DRIVE SHIFT)

main90917-10065iYR3#..4FC198608-198808

36480AHOSE (FOR VACUUM CHECK VALVE)

main90445-08179iYR3#..4FC198608-198710

main90999-92002iYR3#..4FC198803-198808

main95411-10130iYR3#..4FC198710-198803

36481TUBE, FRONT DRIVE VACUUM, NO.1

main36481-28010iYR3#..4FC198608-198808

36482TUBE, FRONT DRIVE VACUUM, NO.2

main36482-28010iYR3#..4FC198608-198808

36740TANK ASSY, TRANSFER VACUUM

main36704-28010iYR3#..4FC198608-198808

9046400301

main90464-00301

9048011003

main90480-11003

9161160816

main91611-60816

9165160820

main91651-60820

19 parts on this diagram · 1 diagram in section
