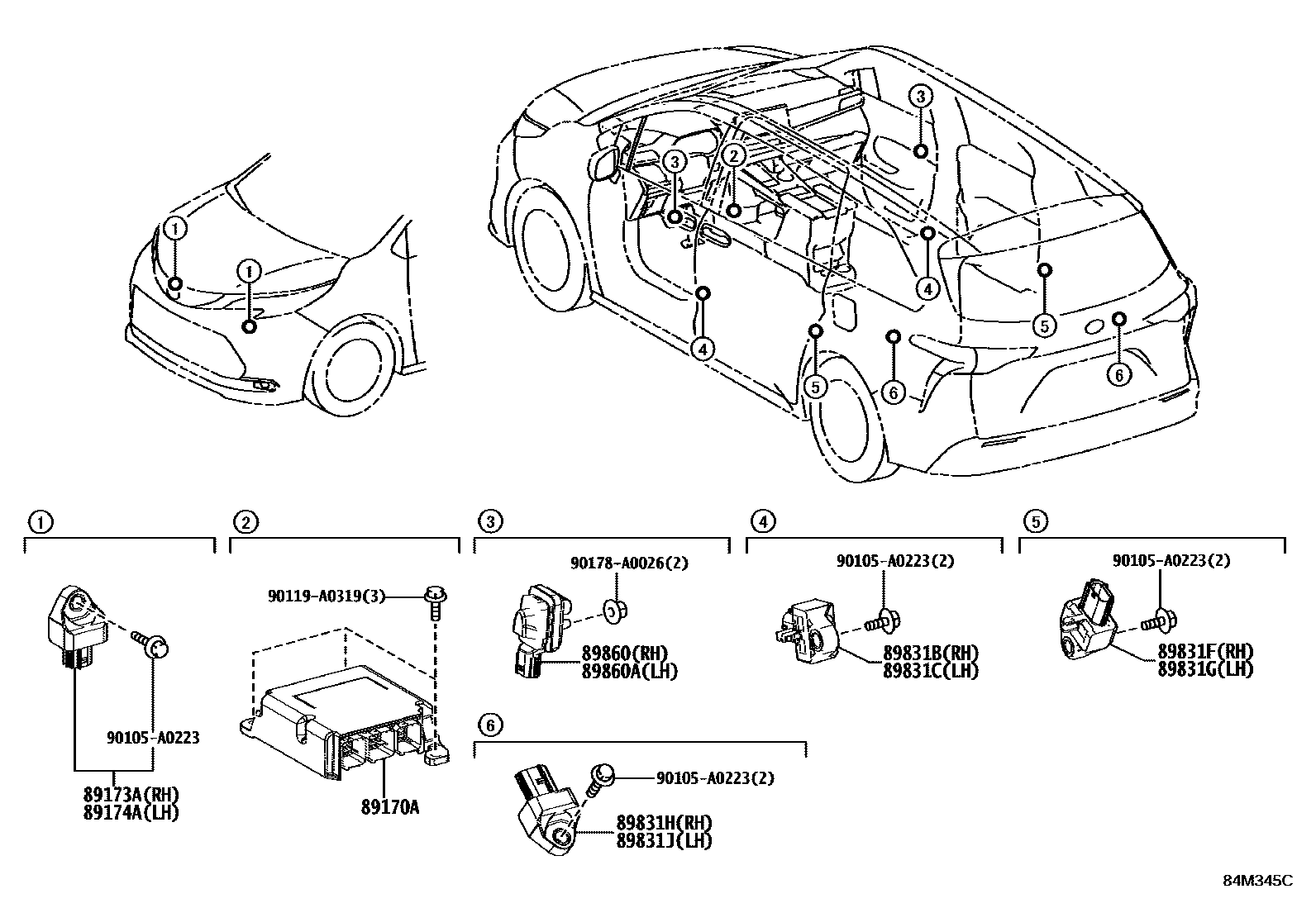

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-08210iAXLH4#202109-202401

*614

main89170-08211iAXLH4#202410

main89170-08230iAXLH4#202011-202109

*614

main89170-08220iAXLH40..07S..X; AXLH40..L202410

TAIWAN SPEC; TAIWAN SPEC&AUDIO-JBL SURROUND 12SPEAKER

89173ASENSOR, AIRBAG, FRONT RH

main89173-09894iAXLH4#202401-202410

main89173-09D60iAXLH4#202011-202401

89174ASENSOR, AIRBAG, FRONT LH

main89173-09894iAXLH4#202401-202410

main89173-09D60iAXLH4#202011-202401

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-06110iAXLH4#202410

main89831-08110iAXLH4#202011-202401

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-06110iAXLH4#202410

main89831-08110iAXLH4#202011-202401

89831FSENSOR, SIDE AIRBAG, RH, NO.3

main89831-06100iAXLH4#202410

main89831-08120iAXLH4#202011-202401

89831GSENSOR, SIDE AIRBAG, LH, NO.3

main89831-06100iAXLH4#202401-202410

main89831-08120iAXLH4#202011-202401

89831HSENSOR, SIDE AIRBAG, RH, NO.4

main89831-08120iAXLH4#202011-202401

main89831-0E130iAXLH4#202410

89831JSENSOR, SIDE AIRBAG, LH, NO.4

main89831-08120iAXLH4#202011-202401

main89831-0E130iAXLH4#202401-202410

89860SENSOR ASSY, SIDE AIRBAG, RH

main8983A-0E021iAXLH4#202410

89860ASENSOR ASSY, SIDE AIRBAG, LH

main8983A-0E021iAXLH4#202410

90105A0223

main90105-A0223

90119A0319

main90119-A0319

90178A0026

main90178-A0026

14 parts on this diagram · 1 diagram in section
