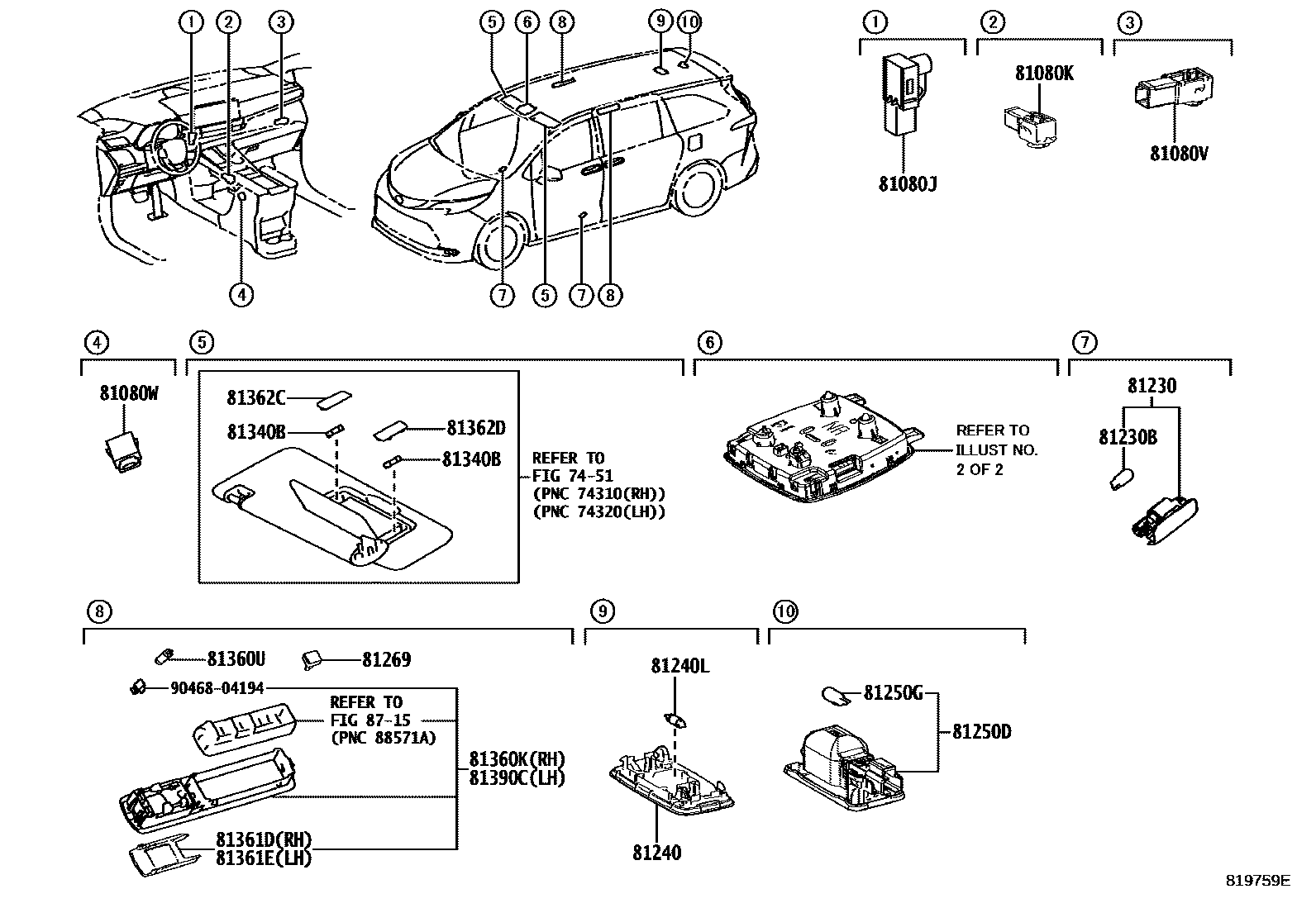

INTERIOR LAMP
7451ARMREST & VISOR
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
AWD PARKS PLUS
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2
81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81240LAMP ASSY, ROOM, NO.1
LT.GRAY,TRIM1#; LT.GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#,2#; NEUTRAL WARM GRAY,TRIM13,4#; NEUTRAL WARM GRAY,TRIM4#
BLACK,TRIM1#,2#; BLACK,TRIM2#; BLACK,TRIM2#,4#
81240LBULB, ROOM LAMP
12V 8W
81250DLAMP ASSY, REAR ROOM, RH
81250GBULB, REAR ROOM LAMP, RH
12V 5W
81269SWITCH, MAP LAMP
81340BBULB (FOR VANITY LAMP)
14V 1.4W
81360KLAMP ASSY, SPOT, RH
LT.GRAY,TRIM1#
NEUTRAL WARM GRAY,TRIM1#,2#; NEUTRAL WARM GRAY,TRIM13,4#; NEUTRAL WARM GRAY,TRIM4#
BLACK,TRIM1#,2#; BLACK,TRIM2#; BLACK,TRIM2#,4#
81360UBULB, SPOT LAMP
81361DLENS, SPOT LAMP
81361ELENS, SPOT LAMP, NO.2
81362CLENS, INTERIOR ILLUMINATION LAMP, RH
81362DLENS, INTERIOR ILLUMINATION LAMP, LH
81390CLAMP ASSY, SPOT, LH
LT.GRAY,TRIM1#
NEUTRAL WARM GRAY,TRIM1#,2#; NEUTRAL WARM GRAY,TRIM13,4#; NEUTRAL WARM GRAY,TRIM4#
BLACK,TRIM1#,2#; BLACK,TRIM2#; BLACK,TRIM2#,4#
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
9046804194
main90468-04194
22 parts on this diagram · 5 diagrams in section
