FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL SUCTUIN TUBE(PUMP & GAGE0003 1FUEL TUBE 0004 1FUEL LID OPNER

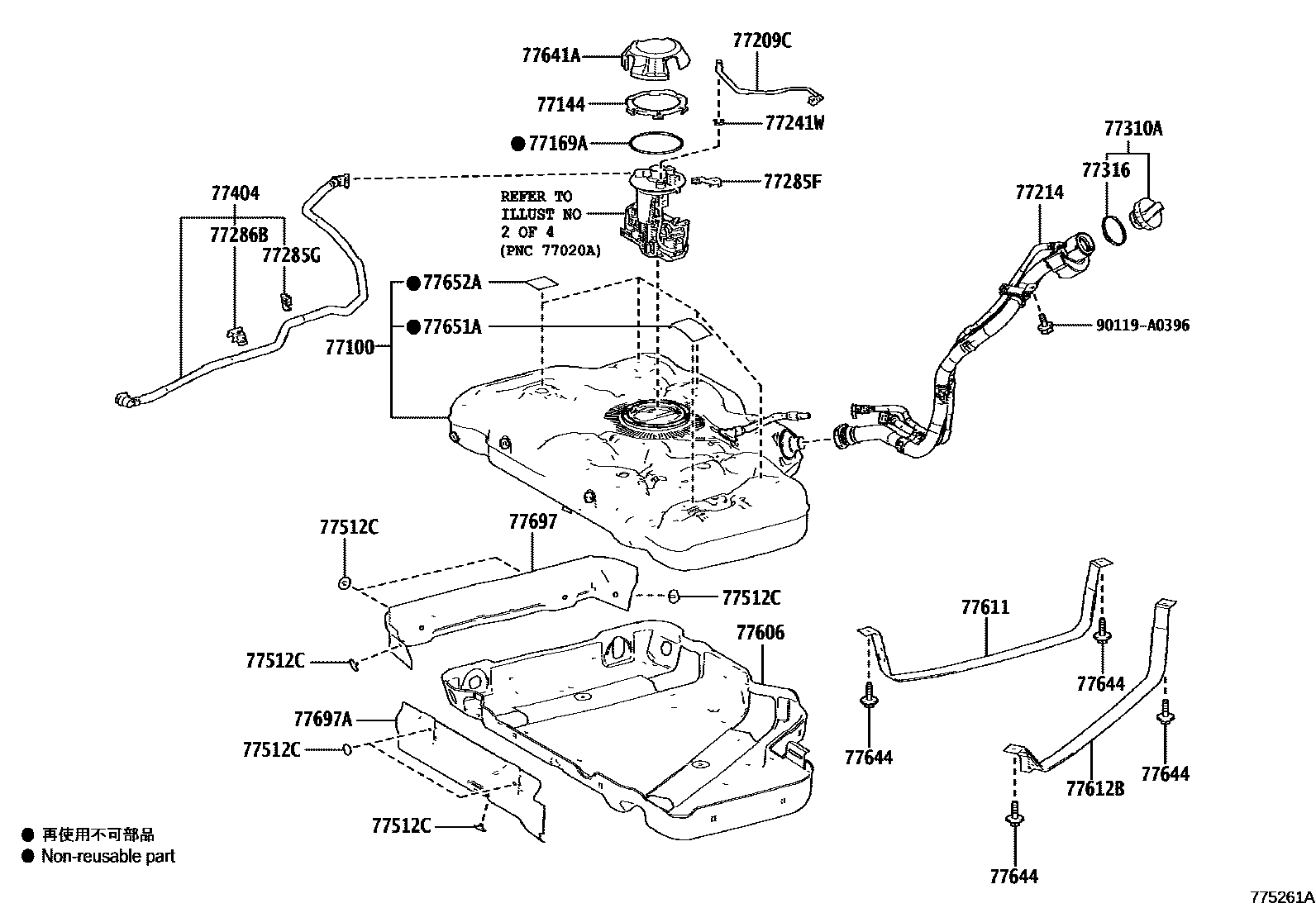

77100TANK ASSY, FUEL

main77001-08120iAXLH4#202011-202410

main77001-08130iAXLH40..07S..(L,X)202011-202410

TAIWAN SPEC

77144RETAINER, FUEL PUMP GAUGE

main77144-06040iAXLH4#202410

77169AGASKET, FUEL SUCTION TUBE SET

main77169-06060iAXLH4#202410

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-08070iAXLH4#202410

77214PIPE, FUEL TANK FILLER

main77210-08070iAXLH4#202410

77241WCLIP, TUBE JOINT

main77241-02010×2iAXLH4#202410

77285FCLAMP, FUEL TUBE, NO.1

main77285-08240iAXLH4#202410

77285GCLAMP, FUEL TUBE, NO.1

main77285-0R090iAXLH4#202410

77286BCLAMP, FUEL TUBE W/GROMMET, NO.2

main77285-08280iAXLH4#202410

77310ACAP ASSY, FUEL TANK

main77300-06090iAXLH4#202410

(L)

main77300-53040iAXLH4#202410

(J)

77316GASKET, FUEL TANK CAP

main77316-06090iAXLH4#202011-202410

(L)

main77316-75020iAXLH4#202410

#,(J)

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-08070iAXLH4#202410

77512CBRACKET, FUEL TANK

main77512-06060×7iAXLH4#202106-202410

(L)

main77512-35140×7iAXLH4#202410

(J)

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-08010iAXLH4#202410

77611BAND, FUEL TANK

main77601-08020iAXLH4#202410

77612BBAND, FUEL TANK, NO.2

main77602-08020iAXLH4#202410

77641APROTECTOR, FUEL TANK, NO.1

main77641-08040iAXLH4#202410

77644BOLT, FUEL TANK

main90119-A0509×4iAXLH4#202410

77651ACUSHION, FUEL TANK, NO.1

main77651-08040iAXLH4#202410

77652ACUSHION, FUEL TANK, NO.2

main77651-12070×4iAXLH4#202410

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-08030iAXLH4#202410

77697AINSULATOR, FUEL TANK HEAT, NO.2

main77698-08010iAXLH4#202410

90119A0396

main90119-A0396

23 parts on this diagram · 4 diagrams in section
