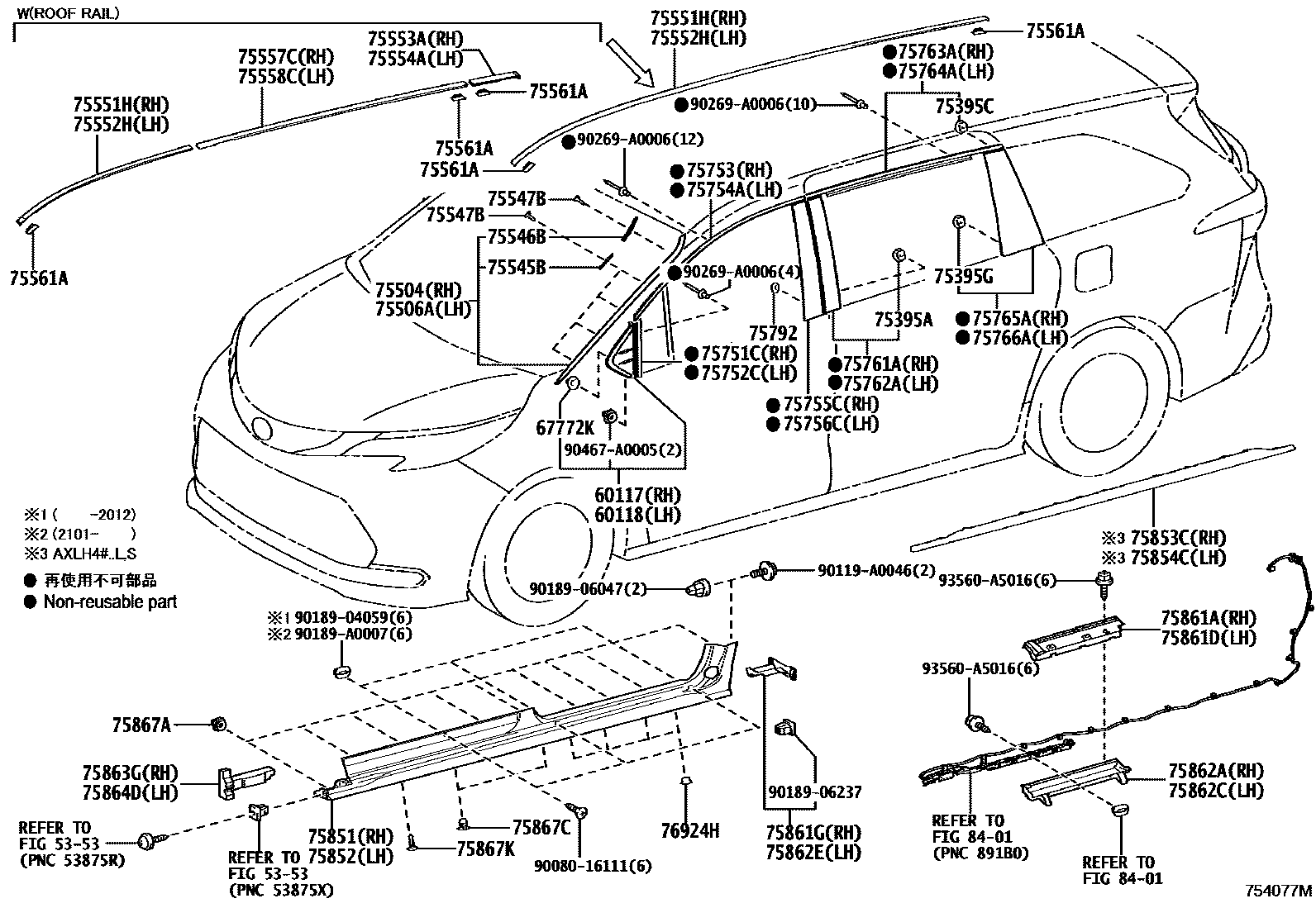

MOULDING

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-08010iAXLH4#202011-202404

main60117-08011iAXLH4#202405-202410

main60117-08040iAXLH4#..S; AXLH45..X202410

AWD PARKS PLUS

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-08010iAXLH4#202011-202404

main60118-08011iAXLH4#..E,L,X202410

main60118-08040iAXLH4#..S; AXLH45..X202410

AWD PARKS PLUS

67772KCAP, DOOR TRIM RETAINER

main67772-47020×2iAXLH4#202410

main67772-95J03×2iAXLH4#202011-202404

75395ACLIP, OUTSIDE MOULDING, NO.1

main75395-08010×4iAXLH4#202011-202410

75395CCLIP, OUTSIDE MOULDING, NO.1

main75395-08010×4iAXLH4#202410

75395GCLIP, OUTSIDE MOULDING, NO.1

main75395-08010×6iAXLH4#202410

75504MOULDING SUB-ASSY, WINDSHILD, OUTSIDE LOWER

main75504-08010iAXLH4#202011-202410

75506AMOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, LH

main75505-08010iAXLH4#202011-202410

75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1

main75545-0E020×8iAXLH4#202011-202410

75546BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.2

main75546-08010×2iAXLH4#202410

75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3

main75547-0E010×10iAXLH4#202410

75551HMOULDING, ROOF DRIP SIDE, RH

main75551-08030supersedes 75551-08041iAXLH4#..E,S,X; AXLH4#..L202011-202309

ROOF RAIL-WITH(BLACK)

main75551-08031iAXLH4#..E,S,X; AXLH4#..L202410

ROOF RAIL-WITH(BLACK)

75552HMOULDING, ROOF DRIP SIDE, LH

main75552-08030supersedes 75552-08041iAXLH4#..E,S,X; AXLH4#..L202011-202309

ROOF RAIL-WITH(BLACK)

main75552-08031iAXLH4#..E,S,X; AXLH4#..L202410

ROOF RAIL-WITH(BLACK)

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-08010iAXLH4#..E,S,X; AXLH4#..L202011-202309

ROOF RAIL-WITH(BLACK)

main75553-08011iAXLH4#..E,S,X; AXLH4#..L202410

ROOF RAIL-WITH(BLACK)

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-08010iAXLH4#..E,S,X; AXLH4#..L202011-202309

ROOF RAIL-WITH(BLACK)

main75554-08011iAXLH4#..E,S,X; AXLH4#..L202310-202410

ROOF RAIL-WITH(BLACK)

75557CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH

main75557-08010iAXLH4#..E,S,X; AXLH4#..L202011-202309

ROOF RAIL-WITH(BLACK)

main75557-08011iAXLH4#..E,S,X; AXLH4#..L202310-202410

ROOF RAIL-WITH(BLACK)

75558CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH

main75557-08010iAXLH4#..E,S,X; AXLH4#..L202011-202309

ROOF RAIL-WITH(BLACK)

main75557-08011iAXLH4#..E,S,X; AXLH4#..L202310-202410

ROOF RAIL-WITH(BLACK)

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-08040×6iAXLH4#..E,S,X; AXLH4#..L202410

ROOF RAIL-WITH(BLACK)

75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-08010iAXLH4#202011-202410

75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-08010iAXLH4#202410

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-08010iAXLH4#..E,L,X202410

NO PAINT REQ.

main75753-08040iAXLH4#..S; AXLH45..X202410

NO PAINT REQ.; NO PAINT REQ.,AWD PARKS PLUS

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-08010iAXLH4#..E,L,X202410

NO PAINT REQ.

main75754-08040iAXLH4#..S; AXLH45..X202410

NO PAINT REQ.; NO PAINT REQ.,AWD PARKS PLUS

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-08020iAXLH4#202410

NO PAINT REQ.

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-08020iAXLH4#202410

NO PAINT REQ.

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-08010iAXLH4#202410

NO PAINT REQ.

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-08010iAXLH4#202410

NO PAINT REQ.

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-08010iAXLH4#..E,L,X202410

main75763-08040iAXLH4#..S; AXLH45..X202410

AWD PARKS PLUS

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-08010iAXLH4#..E,L,X202410

main75764-08040iAXLH4#..S; AXLH45..X202410

AWD PARKS PLUS

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-08030iAXLH4#202410

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-08030iAXLH4#202011-202410

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-0R010×2iAXLH4#202410

75851MOULDING, ROCKER PANEL, RH

main75851-08902iAXLH4#..E,X202011-202410

PAINT REQ.

main75851-08903iAXLH4#..L,S202011-202410

PAINT REQ.

75852MOULDING, ROCKER PANEL, LH

main75852-08902iAXLH4#..E,X202410

PAINT REQ.

main75852-08903iAXLH4#..L,S202410

PAINT REQ.

75853CMOULDING, ROCKER PANEL, LOWER RH

main75853-08900iAXLH4#..L,S202011-202410

75854CMOULDING, ROCKER PANEL, LOWER LH

main75854-08900iAXLH4#..L,S202410

75861APROTECTOR, ROCKER PANEL MOULDING, NO.1

main75863-08110iAXLH4#..X202011-202410

main75863-08130iAXLH4#..L,S202011-202410

75861DPROTECTOR, ROCKER PANEL MOULDING, NO.1

main75864-08050iAXLH4#..X202410

main75864-08070iAXLH4#..L,S202410

75861GCOVER, ROCKER PANEL MOULDING END, FRONT RH

main75861-08020iAXLH4#202011-202410

75862APROTECTOR, ROCKER PANEL MOULDING, NO.2

main75863-08120iAXLH4#..X202410

main75863-08140iAXLH4#..L,S202011-202410

75862CPROTECTOR, ROCKER PANEL MOULDING, NO.2

main75864-08060iAXLH4#..X202011-202410

main75864-08080iAXLH4#..L,S202410

75862ECOVER, ROCKER PANEL MOULDING END, FRONT LH

main75862-08020iAXLH4#202410

75863GPROTECTOR, ROCKER PANEL MOULDING, RH

main75863-08080iAXLH4#..L,S,X202011-202410

75864DPROTECTOR, ROCKER PANEL MOULDING, LH

main75864-08020iAXLH4#..L,S,X202410

75867ACLIP, ROCKER PANEL MOULDING

main90467-A0005×18iAXLH4#202410

75867CCLIP, ROCKER PANEL MOULDING

main90467-22015×4iAXLH4#202410

75867KCLIP, ROCKER PANEL MOULDING

main75867-30120×2iAXLH4#202410

76924HRETAINER, SIDE MUDGUARD, NO.2

main76924-52040×8iAXLH4#202410

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008016111

main90080-16111

90119A0046

main90119-A0046

9018904059

main90189-04059

9018906047

main90189-06047

9018906237

main90189-06237

90189A0007

main90189-A0007

90269A0006

main90269-A0006

90467A0005

main90467-A0005

93560A5016

main93560-A5016

58 parts on this diagram · 1 diagram in section
