E
EPC Data

REAR SEAT & SEAT TRACK

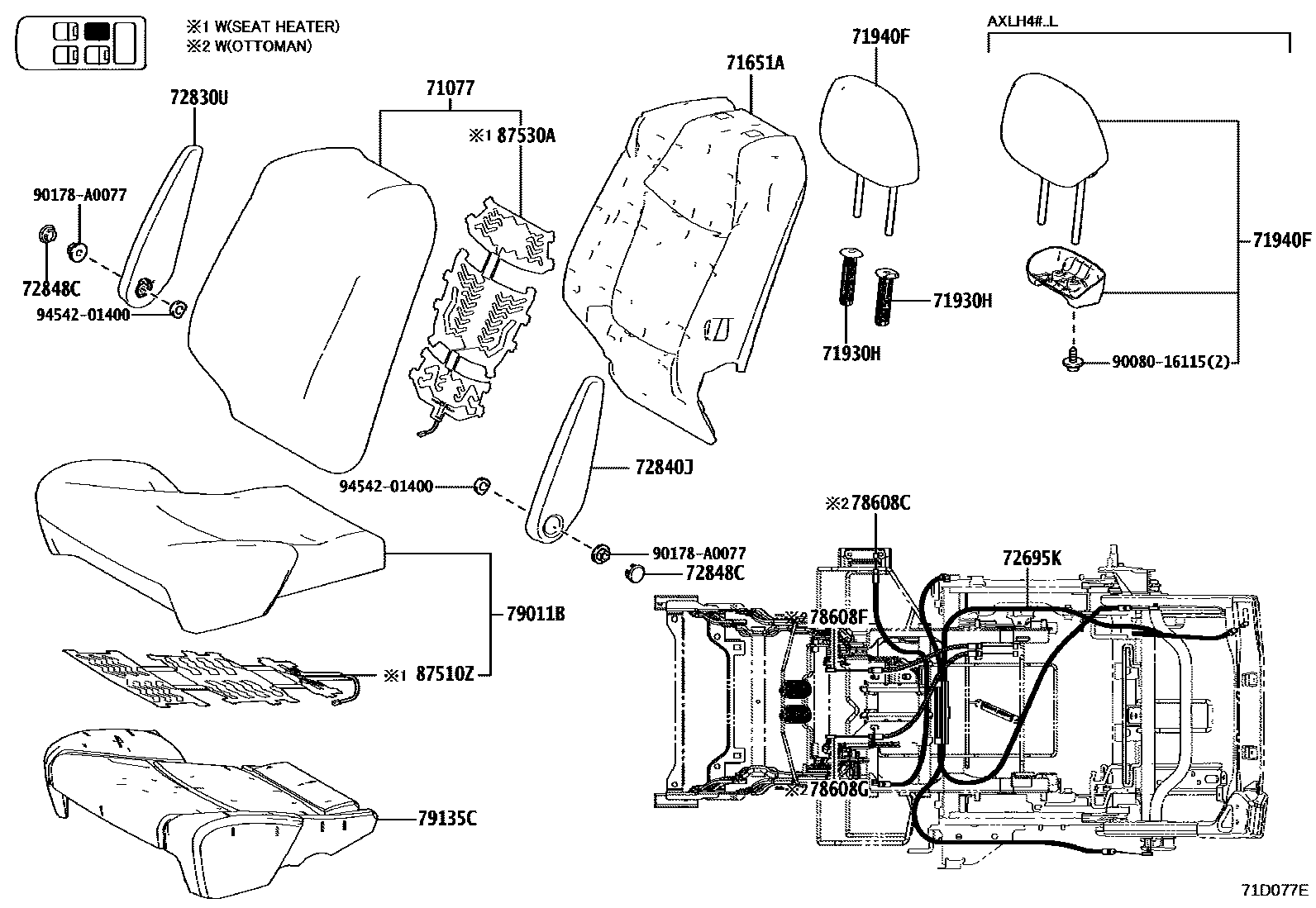

Parts diagram
71077COVER SUB-ASSY, REAR NO.1 SEATBACK, RH
main71077-08110-B0i202011-202109
COOL GRAY/NUTRL WARM GRAY,TRIM11
main71077-08110-B1i202011-202109
NEUTRAL WARM GRAY/BLACK,TRIM12
main71077-08110-B2i202109-202209
NEUTRAL WARM GRAY,TRIM11
main71077-08110-B4i202109-202209
BLACK/ORANGE,TRIM12
main71077-08111-B2i202209-202410
NEUTRAL WARM GRAY,TRIM11
main71077-08111-B4i202209-202410
BLACK/ORANGE,TRIM12
main71077-08111-B5i202410
GRAY/WHITE,TRIM1#
main71077-08140-B0i202011-202109
GRAY,TRIM1#
main71077-08140-B1i202011-202109
CHATEAU,TRIM4#
main71077-08140-B2i202109-202209
GRAY,TRIM1#
main71077-08140-B3i202109-202209
CHATEAU,TRIM4#
main71077-08141-B2i202209-202410
GRAY,TRIM1#
main71077-08141-B3i202209-202410
CHATEAU,TRIM4#
main71077-08141-B4i202410
MD GRAY,TRIM1#
main71077-08150-B0supersedes 71077-08210-B2i202011-202209
LT GREY,TRIM1#
main71077-08151-B0supersedes 71077-08211-B4i202209-202410
LT GREY,TRIM1#; MEXICO SPEC&SPARE TIRE-T155/80R17(TEMPORARY),LT GREY,TRIM1#
main71077-08151-B3i202410
LT GRAY,TRIM1#; MEXICO SPEC&SPARE TIRE-T155/80R17(TEMPORARY),LT GRAY,TRIM1#
main71077-08210-B1i202011-202109
CHATEAU,TRIM4#
main71077-08210-B3i202109-202209
CHATEAU,TRIM4#
main71077-08211-B3i202209-202410
CHATEAU,TRIM4#
main71077-08110-B3i202109-202209
AWD PARKS PLUS,BLACK/CARAMEL,TRIM1#
main71077-08111-B3i202212-202410
AWD PARKS PLUS,BLACK/CARAMEL,TRIM1#
main71077-08111-C1i202410
AWD PARKS PLUS,BLACK/CARAMEL,TRIM2#
main71077-08130-B2supersedes 71077-08220-B2i202011-202109
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),CHATEAU,TRIM40
main71077-08130-B3supersedes 71077-08220-B3i202011-202109
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),GRAY,TRIM1#
main71077-08130-B4supersedes 71077-08220-B4i202109-202209
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),CHATEAU,TRIM40; SPARE TIRE-T155/80R17(TEMPORARY)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),CHATEAU,TRIM40
main71077-08130-B5i202109-202209
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),GRAY,TRIM1#; SPARE TIRE-T155/80R17(TEMPORARY)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),GRAY,TRIM1#
main71077-08130-E1supersedes 71077-08220-E1i202011-202109
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),NOBLE BROWN,TRIM41
main71077-08130-E2i202109-202209
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),NOBLE BROWN,TRIM41; SPARE TIRE-T155/80R17(TEMPORARY)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),NOBLE BROWN,TRIM41
main71077-08131-B4supersedes 71077-08221-B4i202209-202410
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),CHATEAU,TRIM40; SPARE TIRE-T155/80R17(TEMPORARY)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),CHATEAU,TRIM40
main71077-08131-B5i202209-202410
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),GRAY,TRIM1#; SPARE TIRE-T155/80R17(TEMPORARY)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),GRAY,TRIM1#
main71077-08131-C2i202410
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),BLACK/IVORY,TRIM4#; SPARE TIRE-T155/80R17(TEMPORARY)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),BLACK/IVORY,TRIM4#
main71077-08131-C3supersedes 71077-08221-C7i202410
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),BLACK/CHOCOLATE BROWN,TRIM2#; SPARE TIRE-T155/80R17(TEMPORARY)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),BLACK/CHOCOLATE BROWN,TRIM2#
main71077-08131-E2i202209-202410
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),NOBLE BROWN,TRIM41; SPARE TIRE-T155/80R17(TEMPORARY)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),NOBLE BROWN,TRIM41
main71077-08221-C0i202209-202310
25TH ANNIVERSARY&SPARE TIRE-T155/80R17(TEMPORARY),BLACK,TRIM2#; 25TH ANNIVERSARY,BLACK,TRIM2#
main71077-08221-C2i202310-202410
XSE PREMIUM,BLACK,TRIM2#
main71077-08221-C8supersedes 71077-08111-C0i202410-202511
XSE PREMIUM,BLACK/RED,TRIM2#
71651APAD, REAR NO.1 SEATBACK, RH
main71651-08070i202011-202410
main71651-08080i202410
71930HSUPPORT ASSY, NO.1 SEAT HEADREST, RH
main71930-0R070-B0i202011-202410
W(LOCK),NEUTRAL WARM GRAY,TRIM1#; W(LOCK),NEUTRAL WARM GRAY,TRIM11
main71930-0R070-B3i202410
W(LOCK),MD. GRAY,TRIM1#
main71930-0R070-C0i202410
W(LOCK),AWD PARKS PLUS,BLACK,TRIM2#; W(LOCK),BLACK,TRIM1#,2#; W(LOCK),BLACK,TRIM2#,4#
main71931-0R050-B0i202011-202410
W/O(LOCK),NEUTRAL WARM GRAY,TRIM1#; W/O(LOCK),NEUTRAL WARM GRAY,TRIM11
main71931-0R050-B3i202410
W/O(LOCK),MD. GRAY,TRIM1#
main71931-0R050-C0i202410
W/O(LOCK),AWD PARKS PLUS,BLACK,TRIM2#; W/O(LOCK),BLACK,TRIM1#,2#; W/O(LOCK),BLACK,TRIM2#,4#
71940FHEADREST ASSY, NO.1 SEAT, RH
main71940-08150-B0i202011-202410
LT GREY,TRIM1#
main71940-08150-B1i202410
MED. GRAY,TRIM1#; MEXICO SPEC&SPARE TIRE-T155/80R17(TEMPORARY),MED. GRAY,TRIM1#
main71940-08280-B2i202011-202109
CHATEAU,TRIM40
main71940-08280-B3i202011-202109
GRAY,TRIM1#
main71940-08280-B4i202109-202410
CHATEAU,TRIM40
main71940-08280-B5i202109-202410
GRAY,TRIM1#
main71940-08280-C5i202410
FROMAGE/IVORY,TRIM4#
main71940-08280-C7i202410
BLACK/CHOCOLATE BROWN,TRIM2#
main71940-08280-E1i202011-202109
NOBLE BROWN,TRIM41
main71940-08280-E2i202109-202410
NOBLE BROWN,TRIM41
main71940-08370-B2i202011-202109
COOL GRAY,TRIM11
main71940-08370-B3i202011-202109
CHATEAU,TRIM4#; TAIWAN SPEC,CHATEAU,TRIM4#
main71940-08370-B4i202011-202109
NEUTRAL WARM GRAY,TRIM12
main71940-08370-B5i202011-202109
GRAY,TRIM1#; TAIWAN SPEC,GRAY,TRIM1#
main71940-08370-B6i202109-202410
COOL GRAY,TRIM11
main71940-08370-B7i202109-202410
CHATEAU,TRIM4#; TAIWAN SPEC,CHATEAU,TRIM4#
main71940-08370-B9i202109-202410
NEUTRAL WARM GRAY/ORANGE,TRIM12
main71940-08370-P0i202109-202410
GRAY,TRIM1#; TAIWAN SPEC,GRAY,TRIM1#
main71940-08370-P1i202410
GRAY/WHITE,TRIM1#
main71940-08370-P2i202410
MD GRAY,TRIM1#
main71940-08280-C0i202209-202310
25TH ANNIVERSARY&SPARE TIRE-T155/80R17(TEMPORARY),BLACK,TRIM2#; 25TH ANNIVERSARY,BLACK,TRIM2#
main71940-08280-C1i202310-202410
XSE PREMIUM,BLACK,TRIM2#
main71940-08280-C6supersedes 71940-08370-C1i202410-202511
XSE PREMIUM,BLACK/RED,TRIM2#
main71940-08370-A0i202410
TAIWAN SPEC,FROMAGE/IVORY,TRIM4#
main71940-08370-B8i202212-202410
AWD PARKS PLUS,NEUTRAL WARM GRAY/CARAMEL,TRIM1#
main71940-08370-C2i202410
AWD PARKS PLUS,BLACK/CARAMEL,TRIM2#
main71940-08370-C3i202410
TAIWAN SPEC,BLACK/BROWN,TRIM2#
72695KCABLE, REAR NO.1 SEAT LOCK CONTROL, RH(FOR RECLINING)
main72695-08120i202011-202410
main72695-08200i202410
72830UARMREST ASSY, REAR SEAT, RH
main72830-08060-B0i202011-202410
LT GREY,TRIM1#
main72830-08060-B1supersedes 72830-08121-B5i202410
MED. GRAY,TRIM1#; MEXICO SPEC&SPARE TIRE-T155/80R17(TEMPORARY),MED. GRAY,TRIM1#
main72830-08110-B0i202011-202109
CHATEAU,TRIM4#
main72830-08110-B1i202011-202109
NEUTRAL WARM GRAY,TRIM11
main72830-08110-B2i202011-202109
GRAY,TRIM1#
main72830-08110-C0i202011-202109
BLACK,TRIM12
main72830-08120-B2i202011-202109
CHATEAU,TRIM40
main72830-08120-B3i202011-202109
GRAY,TRIM1#
main72830-08120-E1i202011-202109
NOBLE BROWN,TRIM41
main72830-08121-B2i202109-202410
CHATEAU,TRIM4#; CHATEAU,TRIM40
main72830-08121-B3i202212-202410
GRAY,TRIM10
main72830-08121-B4i202109-202410
NEUTRAL WARM GRAY,TRIM11
main72830-08121-C0i202410
AWD PARKS PLUS,BLACK,TRIM2#; BLACK,TRIM1#,2#; BLACK,TRIM2#,4#
main72830-08121-E1i202109-202410
NOBLE BROWN,TRIM41
main72830-08121-B5i202410
AWD PARKS PLUS,MD.GRAY,TRIM1#; MD.GRAY,TRIM1#; TAIWAN SPEC,MD.GRAY,TRIM1#
72840JARMREST ASSY, REAR SEAT, LH
main72820-08200-B0i202011-202410
LT GREY,TRIM1#
main72820-08200-B1supersedes 72820-08261-B5i202410
MED. GRAY,TRIM1#; MEXICO SPEC&SPARE TIRE-T155/80R17(TEMPORARY),MED. GRAY,TRIM1#
main72820-08210-B0i202011-202109
CHATEAU,TRIM4#
main72820-08210-B1i202011-202109
GRAY,TRIM1#
main72820-08210-B2i202011-202109
NEUTRAL WARM GRAY,TRIM11
main72820-08210-C0i202011-202109
BLACK,TRIM12
main72820-08260-B2i202011-202109
CHATEAU,TRIM40
main72820-08260-B3i202011-202109
GRAY,TRIM1#
main72820-08260-E1i202011-202109
NOBLE BROWN,TRIM41
main72820-08261-B2i202109-202410
CHATEAU,TRIM4#; CHATEAU,TRIM40
main72820-08261-B3i202212-202410
GRAY,TRIM10
main72820-08261-B4i202109-202410
NEUTRAL WARM GRAY,TRIM11
main72820-08261-C0i202410
AWD PARKS PLUS,BLACK,TRIM2#; BLACK,TRIM1#,2#; BLACK,TRIM2#,4#
main72820-08261-E1i202109-202410
NOBLE BROWN,TRIM41
main72820-08261-B5supersedes 72820-08261-B3i202410
AWD PARKS PLUS,MD.GRAY,TRIM1#; MD.GRAY,TRIM1#; TAIWAN SPEC,MD.GRAY,TRIM1#
72848CCAP, NO.1 SEAT ARMREST, NO.1 RH
main72848-08040-B0×2i202011-202410
NEUTRAL WARM GRAY,TRIM1#; NEUTRAL WARM GRAY,TRIM10; NEUTRAL WARM GRAY,TRIM11
main72848-08040-B1×2i202410
AWD PARKS PLUS,MD. GRAY,TRIM1#; MD. GRAY,TRIM1#; TAIWAN SPEC,MD. GRAY,TRIM1#
main72848-08040-C0×2i202011-202410
BLACK,TRIM13,4#; BLACK,TRIM4#
78608CCABLE SUB-ASSY, LEGREST LOCK CONTROL(FOR RH SEAT)
main78608-08030i202410
78608FCABLE SUB-ASSY, LEGREST LOCK CONTROL, NO.2(FOR RH SEAT)
main78608-08040i202410
78608GCABLE SUB-ASSY, LEGREST LOCK CONTROL, NO.3(FOR RH SEAT)
main78608-08070i202410
79011BCOVER SUB-ASSY, NO.1 SEAT CUSHION, RH
main79011-08110-C0i202011-202410
LT GREY,TRIM1#
main79011-08110-C3supersedes 79011-08121-C2i202410-202511
BLACK/LT GRAY,TRIM1#; MEXICO SPEC&SPARE TIRE-T155/80R17(TEMPORARY),BLACK/LT GRAY,TRIM1#
main79011-08120-C0i202011-202209
CHATEAU,TRIM4#
main79011-08121-C0i202209-202410
CHATEAU,TRIM4#
main79011-08210-C0i202011-202209
CHATEAU,TRIM4#
main79011-08210-C1i202011-202209
GRAY,TRIM1#
main79011-08211-C0i202209-202410
CHATEAU,TRIM4#
main79011-08211-C1i202209-202410
GRAY,TRIM1#
main79011-08270-C2i202011-202109
BLACK,TRIM12
main79011-08270-C3i202011-202109
NEUTRAL WARM GRAY,TRIM11
main79011-08270-C5i202109-202209
BLACK/ORANGE,TRIM12
main79011-08270-C6i202109-202209
NEUTRAL WARM GRAY,TRIM11
main79011-08271-C5i202209-202410
BLACK/ORANGE,TRIM12
main79011-08271-C6i202209-202410
NEUTRAL WARM GRAY,TRIM11
main79011-08330-C0i202410
BLACK/MD GRAY,TRIM1#
main79011-08410-C0i202410
BLACK/WHITE,TRIM1#
main79011-08230-B4supersedes 79011-08370-B2i202011-202109
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),CHATEAU,TRIM40
main79011-08230-B5supersedes 79011-08370-B3i202011-202109
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),GRAY,TRIM1#
main79011-08230-B6supersedes 79011-08370-B4i202109-202410
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),CHATEAU,TRIM40
main79011-08230-B7supersedes 79011-08370-B5i202109-202410
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),GRAY,TRIM1#
main79011-08230-C1supersedes 79011-08370-C2i202410
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),BLACK/BROWN,TRIM2#
main79011-08230-C2supersedes 79011-08370-C3i202410
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),BLACK/IVORY,TRIM4#
main79011-08230-E2supersedes 79011-08370-E1i202011-202109
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),NOBLE BROWN,TRIM41
main79011-08230-E3supersedes 79011-08370-E2i202109-202410
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),NOBLE BROWN,TRIM41
main79011-08270-C4i202109-202209
AWD PARKS PLUS,BLACK/CARAMEL,TRIM1#
main79011-08271-C4i202212-202410
AWD PARKS PLUS,BLACK/CARAMEL,TRIM1#
main79011-08350-B4i202109-202410
SPARE TIRE-T155/80R17(TEMPORARY),CHATEAU,TRIM40
main79011-08350-B5i202109-202410
SPARE TIRE-T155/80R17(TEMPORARY),GRAY,TRIM1#
main79011-08350-C0i202209-202310
25TH ANNIVERSARY&SPARE TIRE-T155/80R17(TEMPORARY),BLACK,TRIM2#
main79011-08350-C2i202310-202410
XSE PREMIUM,BLACK,TRIM2#
main79011-08350-E2i202109-202410
SPARE TIRE-T155/80R17(TEMPORARY),NOBLE BROWN,TRIM41
main79011-08360-B2supersedes 79011-08350-B2i202011-202109
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),CHATEAU,TRIM40
main79011-08360-B3supersedes 79011-08350-B3i202011-202109
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),GRAY,TRIM1#
main79011-08360-B4i202109-202410
SPARE TIRE-T155/80R17(TEMPORARY)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),CHATEAU,TRIM40
main79011-08360-B5i202109-202410
SPARE TIRE-T155/80R17(TEMPORARY)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),GRAY,TRIM1#
main79011-08360-E1supersedes 79011-08350-E1i202011-202109
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),NOBLE BROWN,TRIM41
main79011-08360-E2i202109-202410
SPARE TIRE-T155/80R17(TEMPORARY)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),NOBLE BROWN,TRIM41
main79011-08370-C0i202209-202310
25TH ANNIVERSARY,BLACK,TRIM2#
main79011-08410-C2i202410
AWD PARKS PLUS,BLACK/CARAMEL,TRIM2#
main79011-08450-C0i202410
SPARE TIRE-T155/80R17(TEMPORARY),BLACK/BROWN,TRIM2#
main79011-08450-C1supersedes 79011-08410-C1i202410-202511
XSE PREMIUM,BLACK/RED,TRIM2#
main79011-08450-C2i202410
SPARE TIRE-T155/80R17(TEMPORARY),BLACK/IVORY,TRIM4#
main79011-08460-C0i202410
SPARE TIRE-T155/80R17(TEMPORARY)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),BLACK/BROWN,TRIM2#
main79011-08460-C1i202410
SPARE TIRE-T155/80R17(TEMPORARY)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT),BLACK/IVORY,TRIM4#
79135CPAD, NO.1 SEAT CUSHION, RH
main71611-08030i202410
main79135-08040i202410-202511
main79135-08050supersedes 71611-08030i202011-202410
main79135-08080i202410
SPARE TIRE-T155/80R17(TEMPORARY); SPARE TIRE-T155/80R17(TEMPORARY)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)
87510ZHEATER ASSY, REAR NO.1 SEAT CUSHION, RH
main87510-08030i202410
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT); SPARE TIRE-T155/80R17(TEMPORARY)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)
87530HEATER ASSY, REAR NO.1 SEATBACK, LH
main87530-08030i202410
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT); SPARE TIRE-T155/80R17(TEMPORARY)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)
87530AHEATER ASSY, REAR NO.1 SEATBACK, RH
main87530-08030i202410
SEAT HEATER-WITH(FRONT SEAT & REAR SEAT); SPARE TIRE-T155/80R17(TEMPORARY)&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)
9008016115
main90080-16115
90178A0077
main90178-A0077
9454201400
main94542-01400

19 parts on this diagram · 17 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
