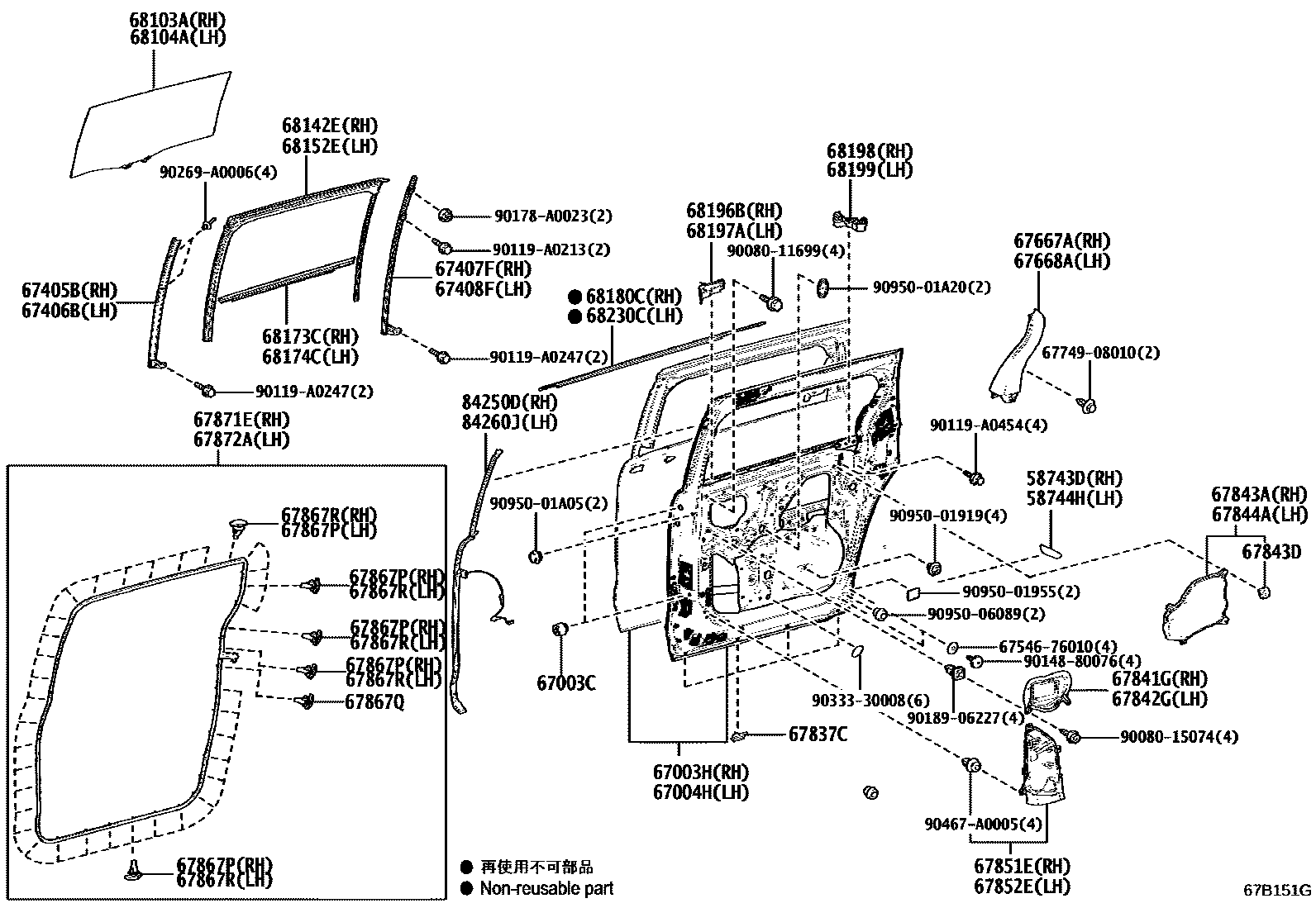

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

58743DPROTECTOR, SLIDE DOOR PANEL, RH

main58743-08020iAXLH4#202410

58744HPROTECTOR, SLIDE DOOR PANEL, LH

main58743-08020iAXLH4#202410

67003CCUSHION, REAR DOOR PANEL

main90541-12013×4iAXLH4#202410

67003HDOOR SUB-ASSY, SLIDE, RH

main67003-08180iAXLH4#202011-202410

67004HDOOR SUB-ASSY, SLIDE, LH

main67004-08190iAXLH4#202011-202410

67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-08010iAXLH4#202410

67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-08010iAXLH4#202410

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-08030iAXLH4#202410

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-08030iAXLH4#202410

67667AGARNISH, SLIDE DOOR WINDOW, RH

main67667-08040iAXLH4#202410

67668AGARNISH, SLIDE DOOR WINDOW, LH

main67668-08040iAXLH4#202410

67837CSEAL, REAR DOOR DUST PROOF

main67837-08060×8iAXLH4#202101-202410

main67837-76030×8iAXLH4#202011-202101

67841GCOVER, SLIDE DOOR SERVICE HOLE, RH

main67841-08010iAXLH4#..E,S,X202011-202410

main67841-08020iAXLH4#..L; AXLH40..L202209-202410

KOREA SPEC; TAIWAN SPEC

67842GCOVER, SLIDE DOOR SERVICE HOLE, LH

main67842-08010iAXLH4#202410

main67842-08020iAXLH4#..L; AXLH40..L202410

KOREA SPEC; TAIWAN SPEC

67843ACOVER, REAR DOOR SERVICE HOLE, NO.2

main67843-08020iAXLH4#..E,S,X202011-202410

main67843-08030iAXLH4#..L; AXLH40..L202410

KOREA SPEC; TAIWAN SPEC

67843DCLIP, REAR DOOR SERVICE HOLE

main90467-A0005×8iAXLH4#202410

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-08020iAXLH4#..E,S,X202011-202410

main67844-08030iAXLH4#..L; AXLH40..L202410

KOREA SPEC; TAIWAN SPEC

67851ECOVER, SLIDE DOOR SERVICE HOLE, RH

main67851-08030iAXLH4#202410

main67851-08040iAXLH4#..L; AXLH40..L202410

KOREA SPEC; TAIWAN SPEC

67852ECOVER, SLIDE DOOR SERVICE HOLE, LH

main67852-08030iAXLH4#..E,S,X202011-202410

main67852-08040iAXLH4#..L; AXLH40..L202209-202410

KOREA SPEC; TAIWAN SPEC

67867PRETAINER, SLIDE DOOR WEATHERSTRIP, NO.1

main67867-52010×37iAXLH4#202410

67867QRETAINER, SLIDE DOOR WEATHERSTRIP, NO.2

main67867-52030×2iAXLH4#202410

67867RRETAINER, SLIDE DOOR WEATHERSTRIP, NO.3

main67867-52040×37iAXLH4#202410

67871EWEATHERSTRIP, SLIDE DOOR, NO.1 RH

main67871-08040iAXLH4#202410

67872AWEATHERSTRIP, SLIDE DOOR, NO.1 LH

main67872-08040iAXLH4#202410

68103AGLASS SUB-ASSY, SLIDE DOOR, RH

main68103-08010iAXLH4#202011-202410

68104AGLASS SUB-ASSY, SLIDE DOOR, LH

main68104-08010iAXLH4#202410

68142ERUN, SLIDE DOOR GLASS, RH

main68142-08030iAXLH4#202011-202012

main68142-08031iAXLH4#202012-202204

main68142-08032iAXLH4#202205-202410

68152ERUN, SLIDE DOOR GLASS, LH

main68152-08030iAXLH4#202011-202101

main68152-08031iAXLH4#202101-202204

main68152-08032iAXLH4#202410

68173CWEATHERSTRIP, SLIDE DOOR GLASS, INNER RH

main68173-08040iAXLH4#202011-202410

68174CWEATHERSTRIP, SLIDE DOOR GLASS, INNER LH

main68174-08040iAXLH4#202410

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-08030iAXLH4#202410

68196BSEAL, REAR DOOR BELT, FRONT RH

main68196-08020iAXLH4#202410

68197ASEAL, REAR DOOR BELT, FRONT LH

main68197-08020iAXLH4#202410

68198SEAL, REAR DOOR BELT, REAR RH

main68198-08010iAXLH4#202410

68199SEAL, REAR DOOR BELT, REAR LH

main68199-08010iAXLH4#202410

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-08030iAXLH4#202410

84250DSENSOR ASSY, POWER SLIDE DOOR, RH

main84250-08170iAXLH4#202410

84260JSENSOR ASSY, POWER SLIDE DOOR, LH

main84260-08060iAXLH4#202410

6754676010CHANNEL, VENT WINDOW DRIP, RH

main67546-76010

6774908010CLIP, DOOR TRIM MOULDING

main67749-08010

9008011699

main90080-11699

9008015074

main90080-15074

90119A0213

main90119-A0213

90119A0247

main90119-A0247

90119A0454

main90119-A0454

9014880076

main90148-80076

90178A0023

main90178-A0023

9018906227

main90189-06227

90269A0006

main90269-A0006

9033330008

main90333-30008

90467A0005

main90467-A0005

9095001919

main90950-01919

9095001955

main90950-01955

9095001A05

main90950-01A05

9095001A20

main90950-01A20

9095006089

main90950-06089

56 parts on this diagram · 2 diagrams in section
